Vision-X – XPL Lo Pro LED Light Bar
The XPL Halo Series of LED Light Bars builds upon the XPR Series by combining the distance power of Iris Reflector Technology with an ultra-slim housing design. Utilizing a powerful 5W CREE LED, the XPL series produces a powerful long-distance spot beam but with a much smaller and low-profile housing when compared to our other light bar series.
Driving through harsh weather conditions? No problem. The new Selective Yellow lens option allows you to cut through dust, rain, snow, and fog to maintain maximum visibility.

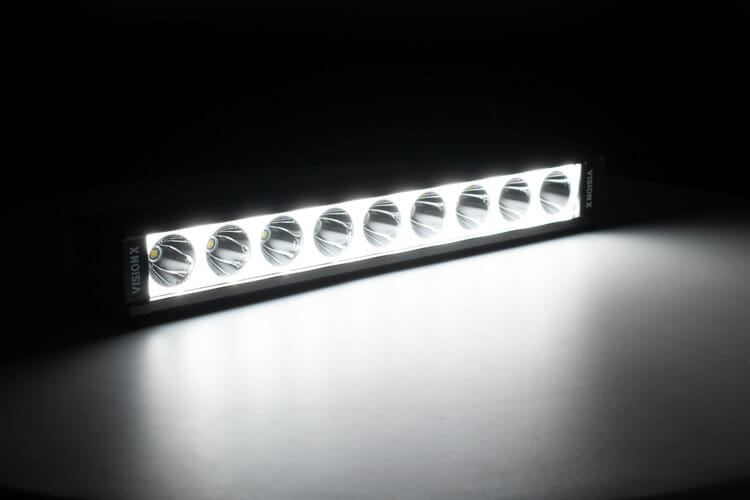

This light bar also features our infamous back-lit halo function that is run independently on its own separate circuit. Simply tap the halo wire into any accessory 12v power source to have it on for extra style or use as an accessory parking light.

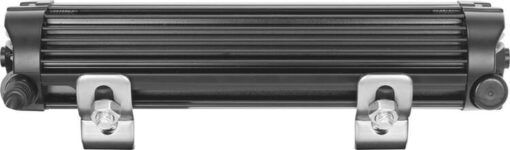

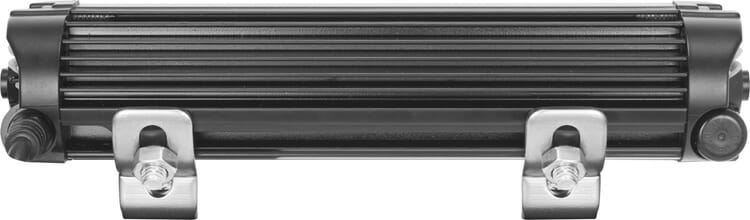

Each XPL series light bar comes with our dual mounting options included. The standard end cap wing mounts allow for the bar to be mounted at max width while our patented feet mounts install underneath the light bar with full horizontal adjustability so you can easily slide them around to match pre-existing mounting holes.
- Ultra Slim Housing Design
- Daytime Running Backlit Halo
- Iris Reflector Technology for Superior Light Distance
- Multiple Mounting Options

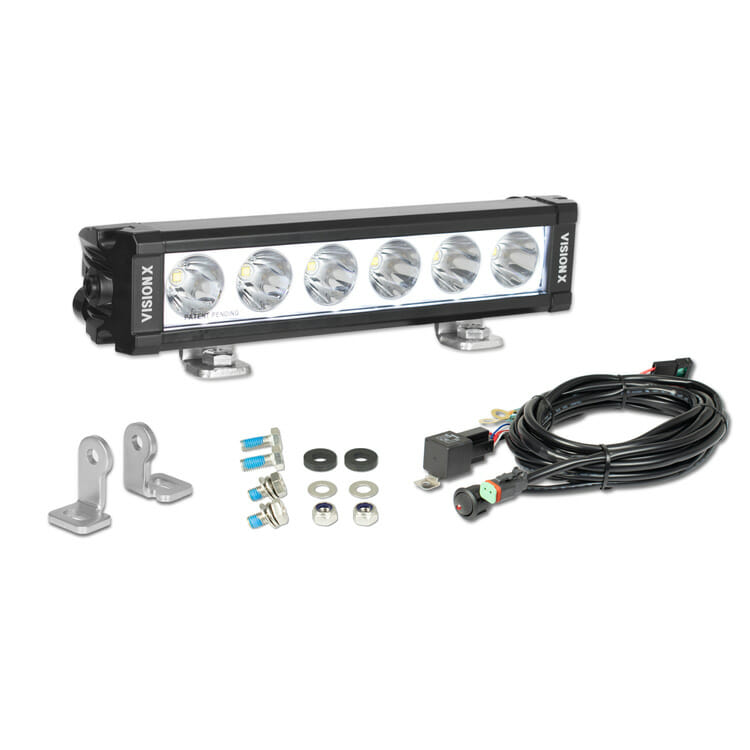

- Plug and Play Harness with Relays and Rocker Switch Included
FEATURES
- Type : 5-watt
SPECIFICATIONS
ITEM # | PART # | BEAM | LENGTH | # OF LEDs | RAW LUMENS | EFFECTIVE LUMENS | WEIGHT (LBS) | INPUT VOLTS | WATTS | AMP DRAW | LENS COLOR |
XPL-H3EMH | 2506916 | Spot | 5.63 | 3 | 1,605 lm | 1,124 lm | 1.17 | 9-32V | 15 | 1.25A | Clear |
XPL-H6EMH | 2510916 | Spot | 9.41 | 6 | 3,210 lm | 2,247 lm | 1.63 | 9-32V | 30 | 2.5A | Clear |
XPL-H9EMH | 2513916 | Spot | 13.19 | 9 | 4,815 lm | 3,371 lm | 2.09 | 9-32V | 45 | 3.75A | Clear |
XPL-H15EMH | 2520916 | Spot | 20.75 | 15 | 8,025 lm | 5,618 lm | 3.09 | 9-32V | 75 | 6.25A | Clear |
XPL-H24EMH | 2530916 | Spot | 32.09 | 24 | 12,840 lm | 8,988 lm | 4.63 | 9-32V | 120 | 10A | Clear |
XPL-H30EMH | 2540916 | Spot | 39.65 | 30 | 16,050 lm | 11,235 lm | 5.73 | 9-32V | 150 | 12.5A | Clear |
XPL-H39EMH | 2550916 | Spot | 50.98 | 39 | 19,260 lm | 13,482 lm | 6.83 | 9-32V | 180 | 15A | Clear |
