Description:

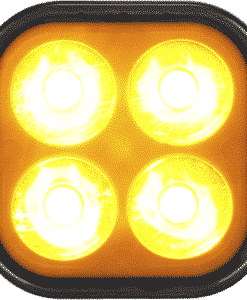

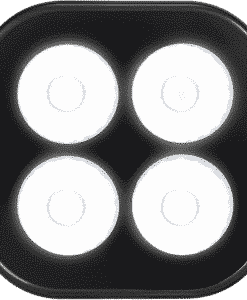

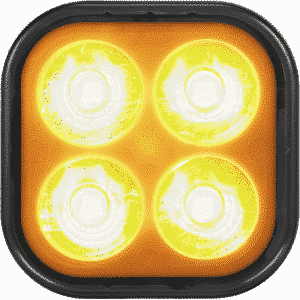

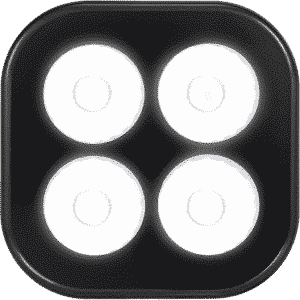

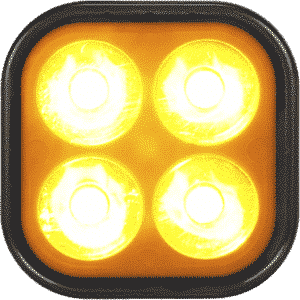

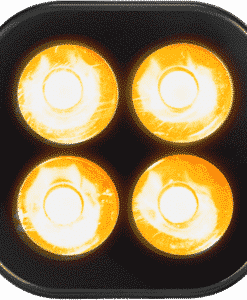

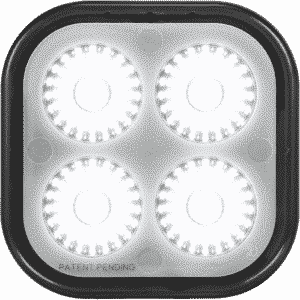

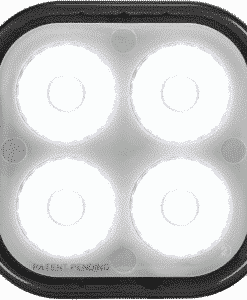

The Vision X UNITE Modular LED Light Bar System brings lighting power and customization to the forefront by allowing you to build your light bar with endless configurations. Our all-new quick connect mounting rail gives you the ability to easily slide on and swap around the modules you choose. Each module features a 4-LED advanced optic design that comes in 8 different styles to match your lighting needs.

I.v.m. de vele verschillende mogelijkheden en het zelf kunnen samenstellen van de Unite Serie worden prijzen hiervoor op aanvraag verstrekt.

Features and Benefits:

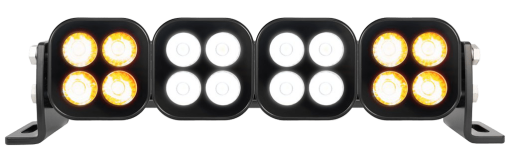

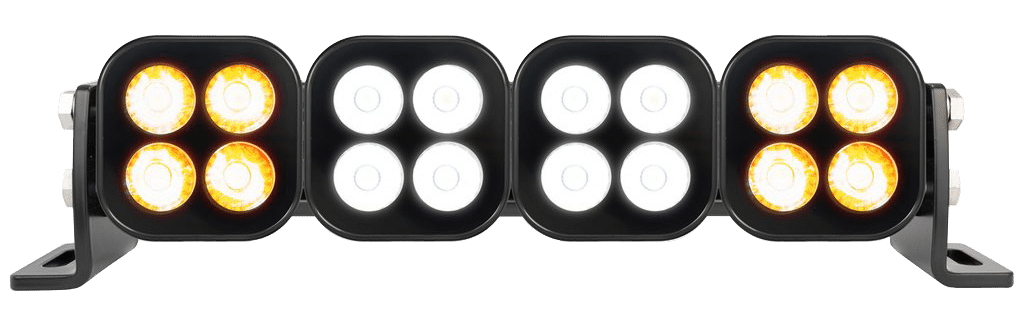

• Fully Customizable Light Bar System
• Straight Rail 6”| 12”| 20”| 30”| 40”| 50” Lengths
• Curved Rail 20”| 30”| 40”| 50” Lengths
• 8 Different Unite Modules to Choose From
• High Output CREE LEDs
• 2000+ Lumens Per Module (White LED)
• Advanced Precision Optics
• IP68/69K Rated Housing
• Limited Lifetime Warranty

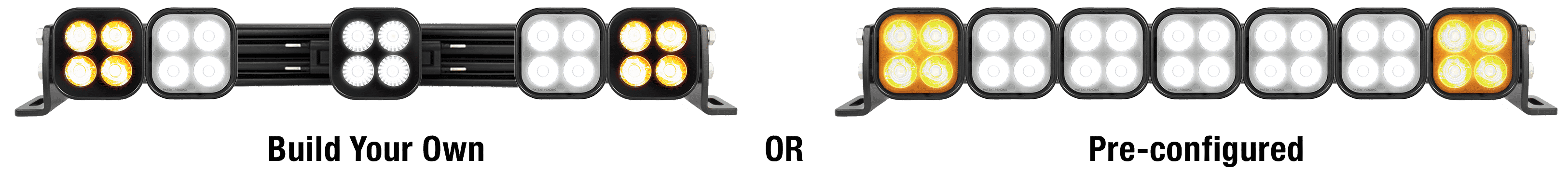

Preconfigured Options:
Unsure of which configuration works best for your application? We did the research for you! Use the drop-down to see the different configurations that we have put together to cover the most popular lighting styles.

Go Custom:
Don’t see a configuration that you need? Build your light bar from the ground up and pick each pod for a completely custom UNITE lighting setup.

Each module features a 4-LED advanced optic design that comes in multiple different beam patterns, output options, and faceplate styles. With the Unite, you’re no longer forced to decide between a single color output or flood and spot beam patterns. The Unite Modular Light Bar system enables you to choose, configure, and build the light bar that you need for your vehicle.

Add Wiring Accessories:

• For Single Circuit Function (All pods on/off) – Choose the Standard Vision X wiring harness only.
• For Split Circuit Function (Ex. Outer Pods on/off | Inner Pods on/off) – Choose the Split-Function Wiring Kit only. Note: Make Sure to Select Correct Length!

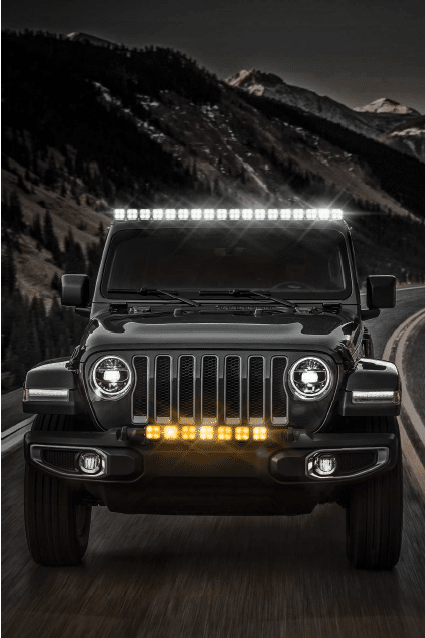

Want to run multiple circuits? No problem. The modular design allows for each pod to powered independently with its own separate input. This allows for complete control over your light bar with the ability to run different sections as separate functions. Run your amber pods on one switch and your white ones on another or your spot pods on one switch and your flood pods on another. The possibilities are endless.

NOTE: Wiring Harness NOT included. Sold Separately.

Tech Specs:

Voltage	9-32V DC
Watts	3.33A / 2A (VXU-B6EM-XX)
	6.67A / 5.33A / 4A (VXU-B12EM-XXXX)
	11.67A / 10.33A / 7A (VXU-B20EM-XXXXXXX)
	18.33A / 15.67A (VXU-B30EM-XXXXXXXXXXX)
	25A / 22.33A (VXU-B40EM-XXXXXXXXXXXXXXX)
	30A / 26A (VXU-B40EM-XXXXXXXXXXXXXXXXXX)
Lumens	4,224lm / 1,020lm (VXU-B6EM-XX)
	8,448lm / 5,244lm / 2,040lm (VX-B12EM-XXXX)
	14,784lm / 11,580lm / 3,570lm (VXU-B20EM-XXXXXXX)
	22,176lm / 11,777lm (VXU-B30EM-XXXXXXXXXXX)
	31,680lm / 25,272lm ((VXU-B40EM-XXXXXXXXXXXXXXX)
	38,016lm / 28,404lm (VXU-B40EM-XXXXXXXXXXXXXXXXXX)
Dimensions	5.55×2.76×3.43 inches (VXU-B6EM-XX)
	11.1×2.76×3.43 inches (VXU-B12EM-XXXX)
	22×2.76×3.43 inches (VXU-B20EM-XXXXXXX)
	30.53×2.76×3.43 inches (VXU-B30EM-XXXXXXXXXXX)
	41.94×2.76×3.43 inches (VXU-B40EM-XXXXXXXXXXXXXXX)
	51.75×2.76×3.43 inches (VXU-B40EM-XXXXXXXXXXXXXXXXXX)



Part No.	Description

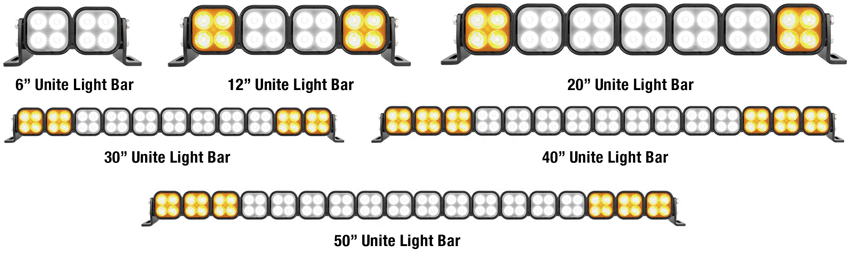

VXU-B6EM-XX	6′′ Vision X Unite Modular LED Light Bar – Preconfigured – 2 LED Lights
VXU-B12EM-XXXX	12′′ Vision X Unite Modular LED Light Bar – Preconfigured – 4 LED Lights
VXU-B20EM-XXXXXXX	20′′ Vision X Unite Modular LED Light Bar – Preconfigured – 7 LED Lights
VXU-B30EM-XXXXXXXXXXX	30′′ Vision X Unite Modular LED Light Bar – Preconfigured – 11 LED Lights
VXU-B40EM-XXXXXXXXXXXXXXX	40′′ Vision X Unite Modular LED Light Bar – Preconfigured – 15 LED Lights
VXU-B50EM-XXXXXXXXXXXXXXXXXX	50′′ Vision X Unite Modular LED Light Bar – Preconfigured – 18 LED Lights

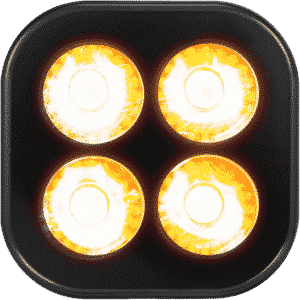

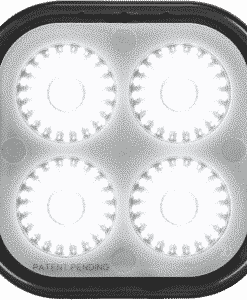

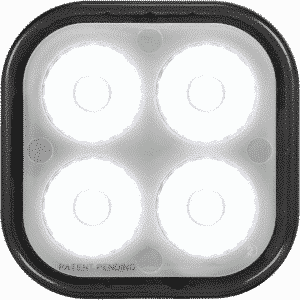

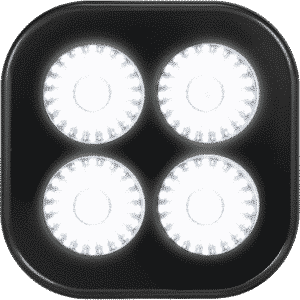

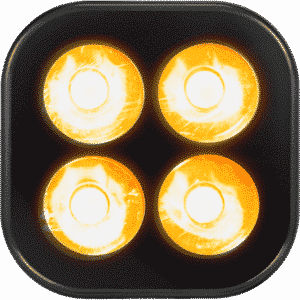

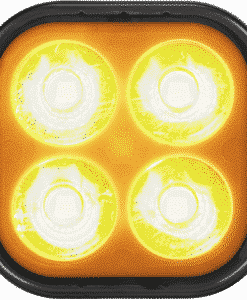

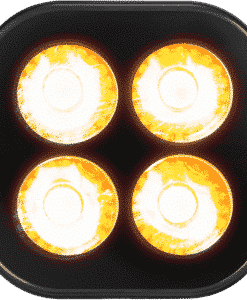

Note: Replace “X” in part number with desired beam: AA = White Spot, BB = White Flood, GG = Blackout White Spot,
HH = Blackout White Flood, DD = Amber Spot, EE = Amber Flood, JJ = Blackout Amber Spot, KK = Blackout Amber Flood

Accessory Part No.	Description
VXU-MB6EM	6′′ Unite Mounting Bar Kit
VXU-MB12EM	12′′ Unite Mounting Bar Kit
VXU-MB20EM	20′′ Unite Mounting Bar Kit
VXU-MB30EM	30′′ Unite Mounting Bar Kit
VXU-MB40EM	40′′ Unite Mounting Bar Kit
VXU-MB50EM	50′′ Unite Mounting Bar Kit
