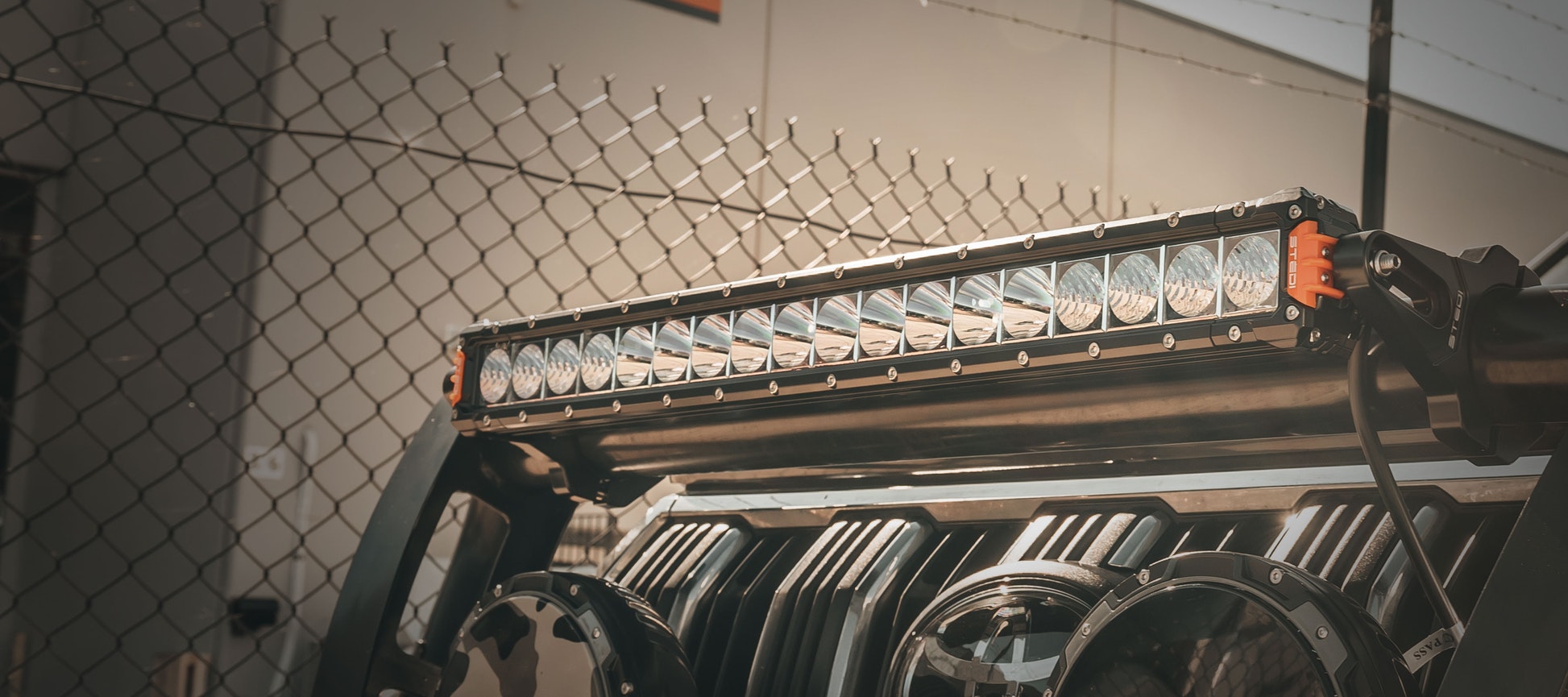

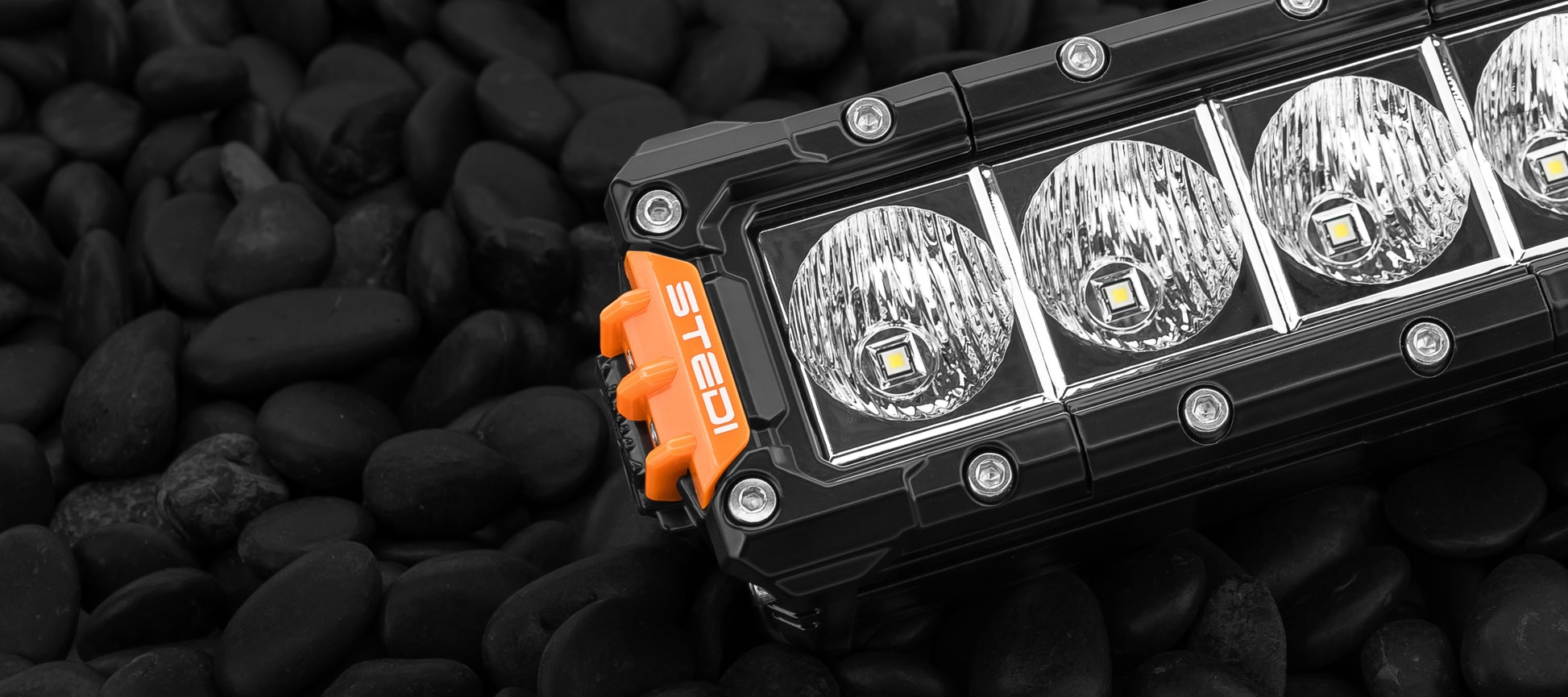

STEDI – ST3301 PRO 27.5″ LED Light Bar

BUILT TO SHINE. Our ST3301 Series LED Light Bar is designed to offer a high volume of light in the mid-range, with excellent visibility on the road shoulders. Compared to bars like our ST4K & ST3K (which have a longer beam distance but slightly less brightness in comparison) our ST3301 forms a larger diameter spot that blends homogeneously with its wide beam. The ST3301 range is perfectly suited for the customer that is concerned about wildlife running out from the road shoulders or those who need a huge amount of brightness and coverage in the mid short and mid-range.

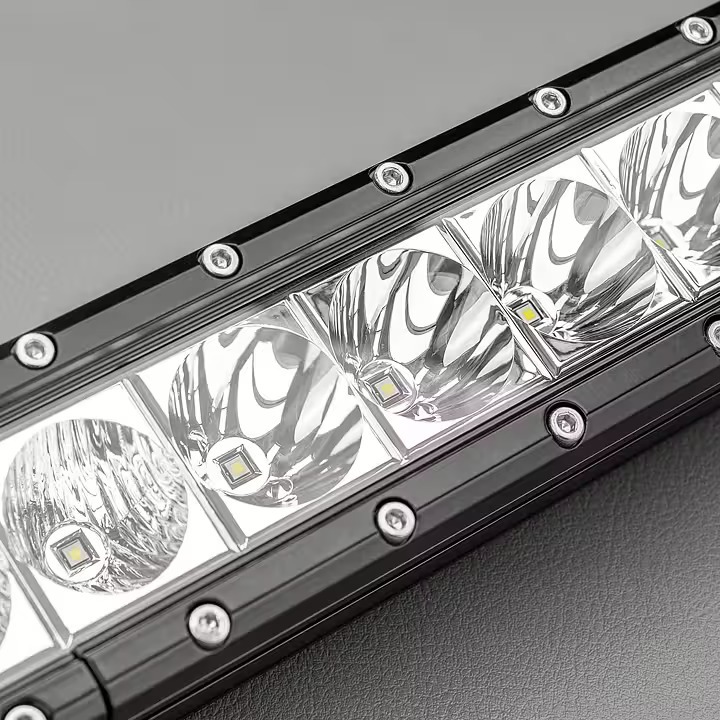

SUPERIOR DESIGN. EXEMPLARY INNOVATION. We thought that it would be time to take things up a notch! The STEDI ST3301 exemplifies the innovation that STEDI is known for, by making advancing strides on the popular ST3300 series. In addition to our revised reflectors, the ST3301 series showcases our improved lighting technology, all within a slick new look. The ST3301 houses OSRAM? LEDs, the pinnacle of technological lighting sophistication. Oh, and did we mention colour temperature? We’ve achieved a strong yet neutral beam character, which maintains a pleasant temperature of 5600K. If you are hoping to dramatically lift your lighting game, then look no further.

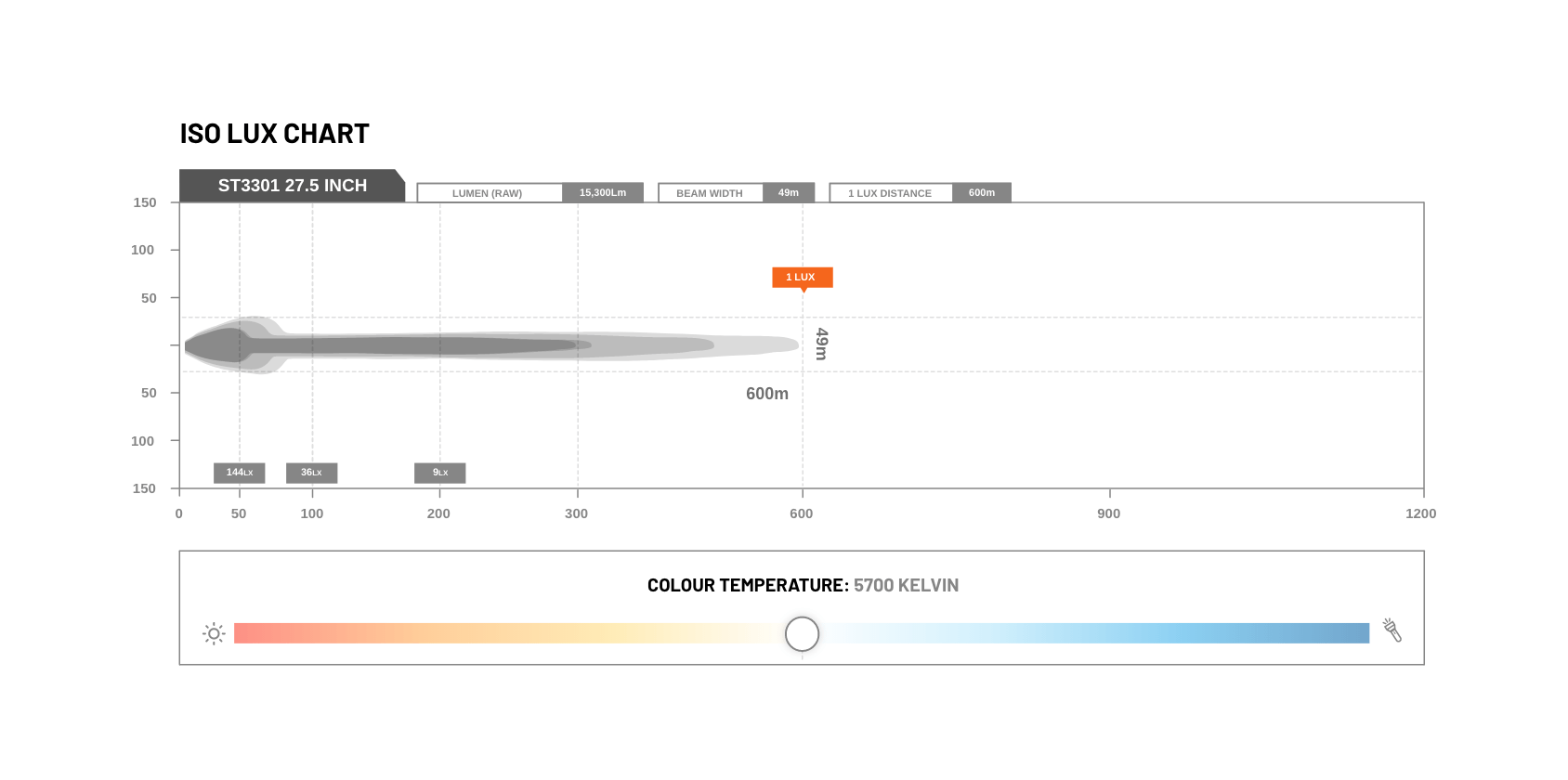

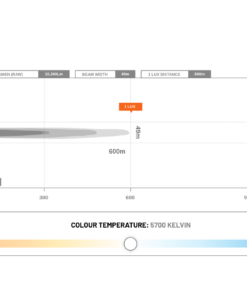

ULTIMATE ILLUMINATION. Our ST3301 builds from the character of the ST3K and ST4K, by offering a higher Lumen output with an excellent mid-range volume. The ST3301 packs a greater punch than its predecessor when it comes to light penetration, offering a light reach of up to 600m at the 1 Lux mark. With this increase of light, we also managed to maintain a streamlined design, keeping the weight of the 27.5″ Bar at 2.8kg.

The Nitty Gritty:

UNMISTAKBALE PERFORMANCE. UNMISTAKABLY STEDI
For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. STEDI have continued to keep at the forefront of LED lighting, making STEDI the leading brand in the industry. Unquestionably, ST3301 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3301 PRO a quintessential component for any LED aficionado. We also provide black out covers for our ST3301 light bars. From our 18.6 Inch to the 41 Inch, we have got you covered!

KEY TECHNICAL BREAKDOWN
Ingress Protection IP68 (Backed by a certificate of conformity),
Coordinated Colour Temperature 5700K – Excellent colour contrast.

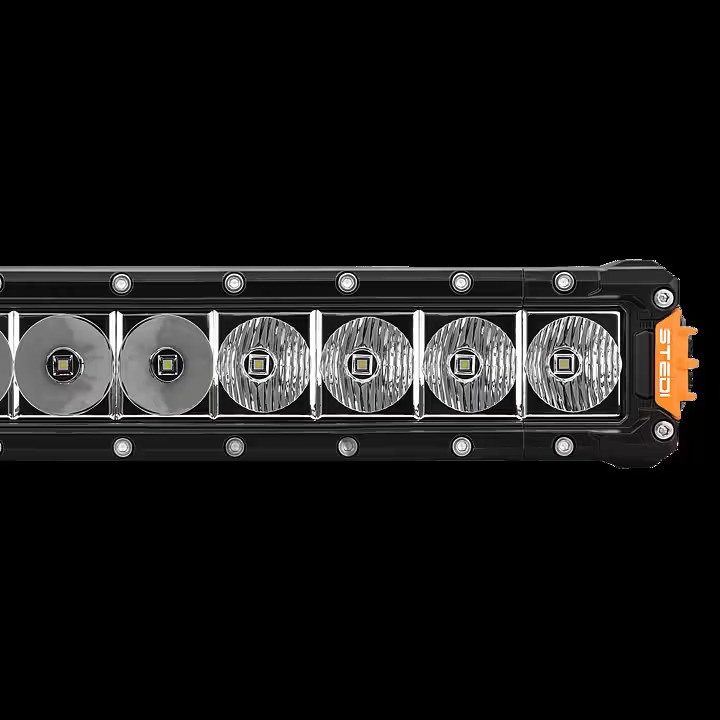

Flood/spot/flood combination with 18 x LEDs
4 Flood + 10 Spot + 4 Flood Reflector Distribution
Tough GE Lexan primary lens which 250 times the impact-resistant strength of glass and 30 times stronger than acrylic Poly-carbonate.

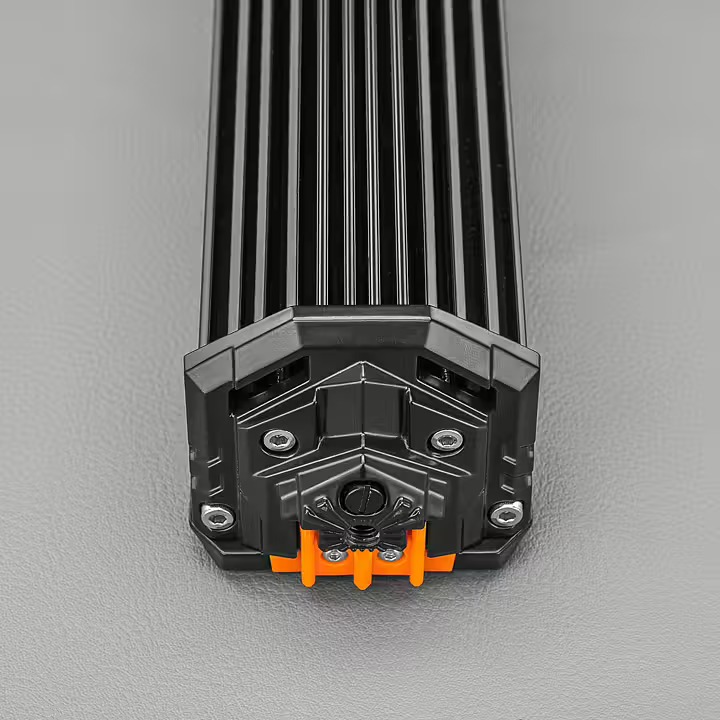

Waterproof Deutsch DT Connector

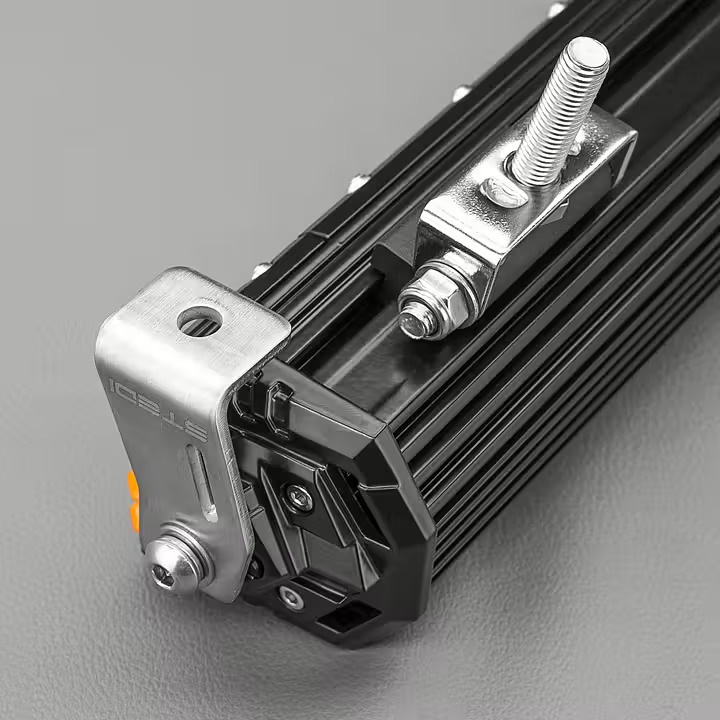

Adjustable Slide mounts and stainless steel side brackets included.
Guaranteed against electromagnetic (EMC) and radio frequency (RFI) interference
5 YEAR WARRANTY

Technical Specifications:

Lumen: 15,300Lm (RAW) 8,250Lm (Effective)
Peak Intensity (Candela): 360,000cd
Operating Voltage: 10-45V DC
Waterproof Rate: IP 68
LED: 18 x OSRAM?
Colour Temperature: 5600K
Material: Die-Cast Aluminium
Lens: GE Lexan?
Mounting Bracket: Aluminium
Bolts and FIttings: 3 Series Stainless Steel
Flood Beam Angle: 45° Degrees
Spot Beam Angle : 11° Degrees
Lumen Maintenance: 50,000 LM-80

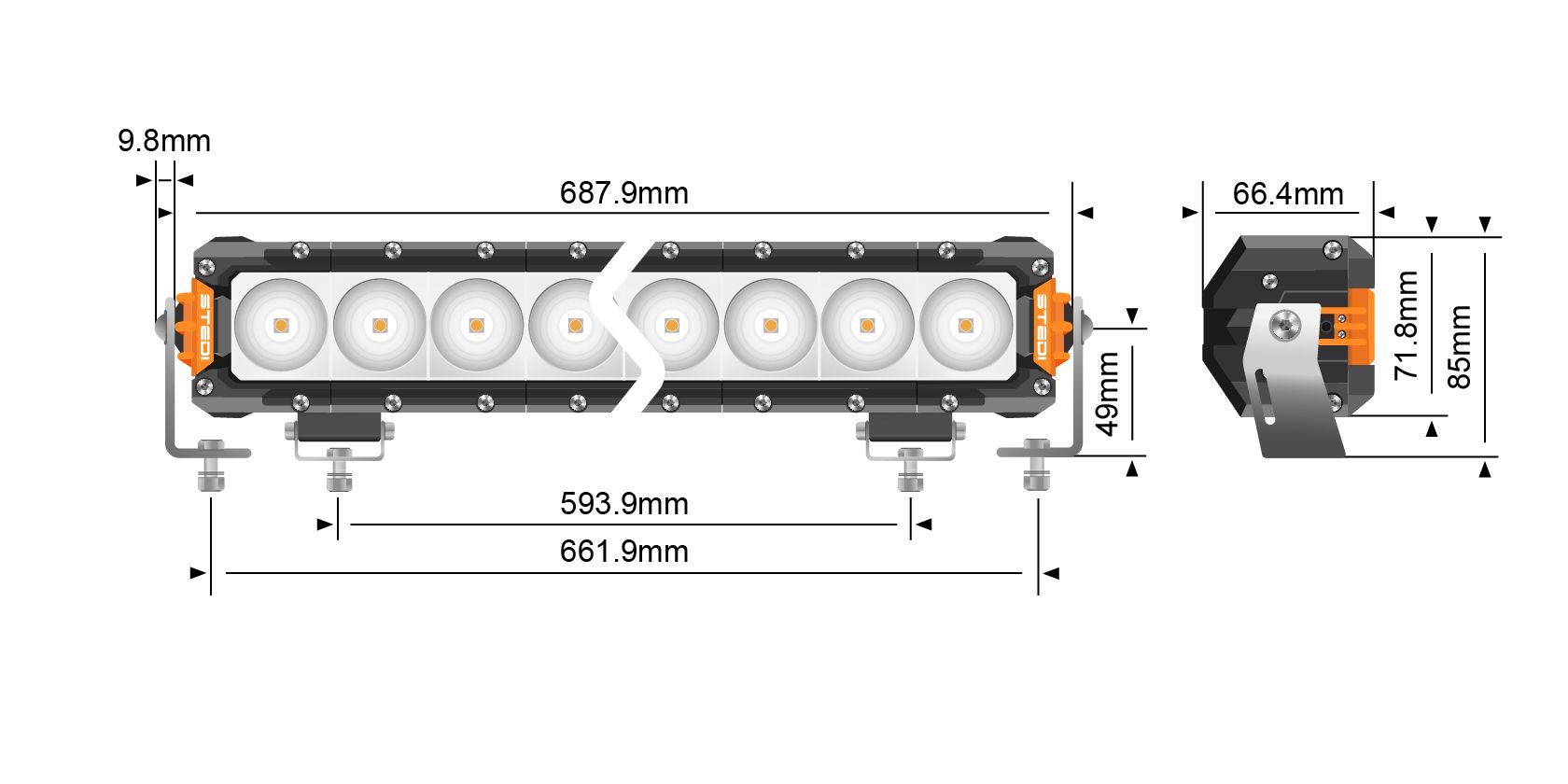

Weight: 2.800kg
Current Draw: 11.8A @ 13.6v

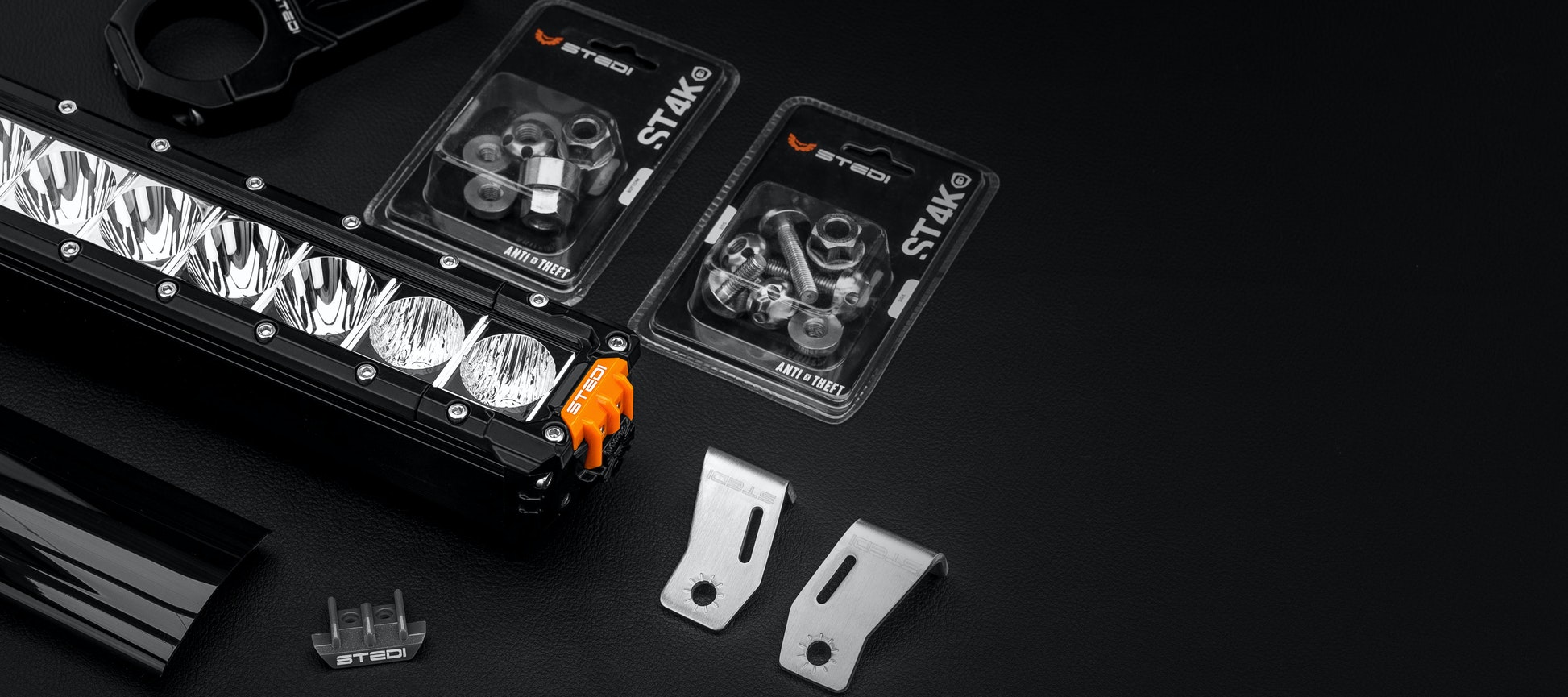

What’s Included:

ST3301 Pro 27.5 INCH 18 LED LIGHT BAR

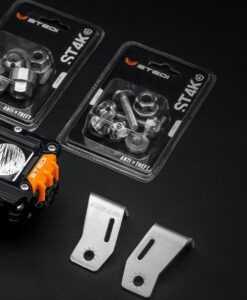

Stainless Bolt and Nut Set

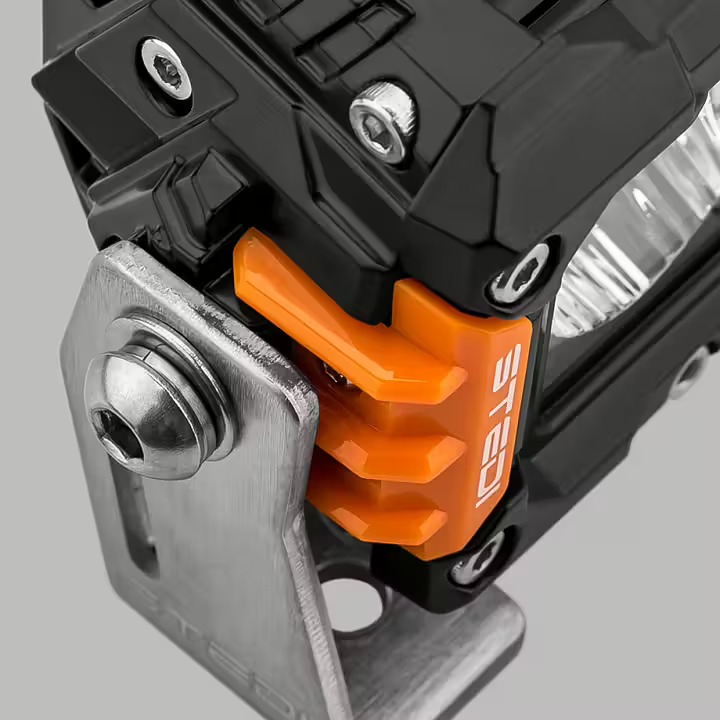

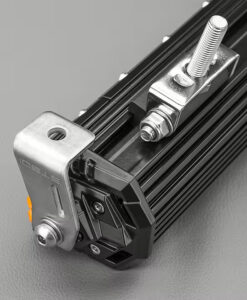

Sliding Lower Mounting Brackets + Stainless Steel Side Brackets
Quick-Fit High Beam Wiring Harness 12v Relay, Wiring Kit and On/Off Switch

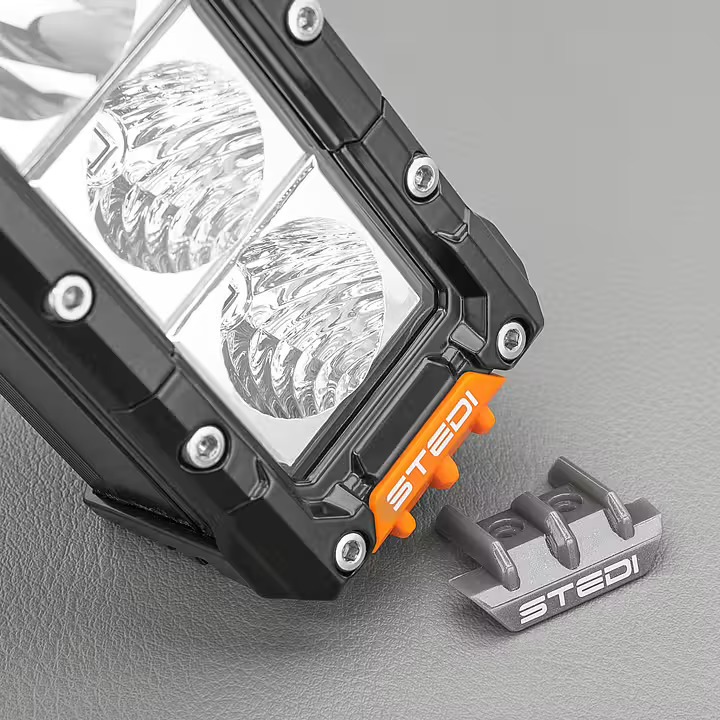

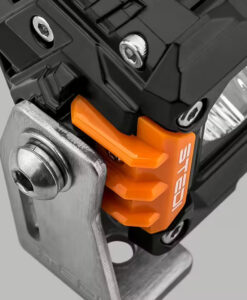

2 x Orange Side Caps
2 x Grey Side Caps
HB3 and H4 Piggy Back Adaptors
