STEDI – ST2K 50.8″ Super Drive Curved E-Mark LED Light Bar

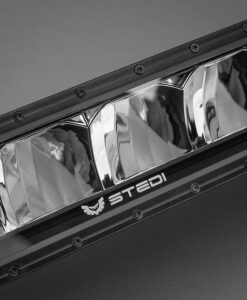

OVERVIEW. Hit the ‘on’ button and our ST2K Super- Drive LED light bar’s motor-sports pedigree instantly becomes evident. Compared to traditional optical systems, our innovative Super-Drive reflectors system delivers unmatched light intensity at the mid to long range.

PERFORMANCE. The ST2K has been designed around the intention to provide a powerful flood beam with a suficient spot. The purpose of this style of beam is to pair up with a combo or spot beam and where the flood beam of the others tend to narrow off, the ST2K picks up and takes it out even further lighting up the shoulders of the road.

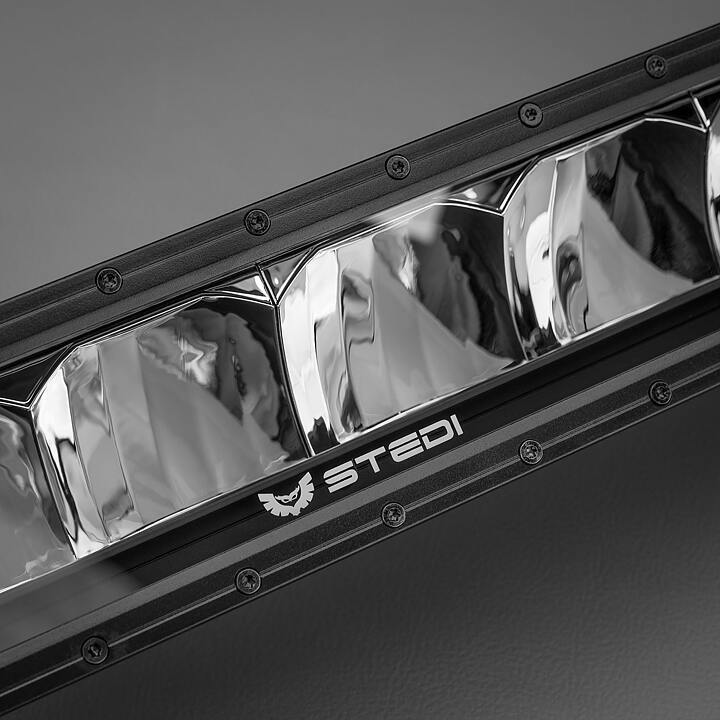

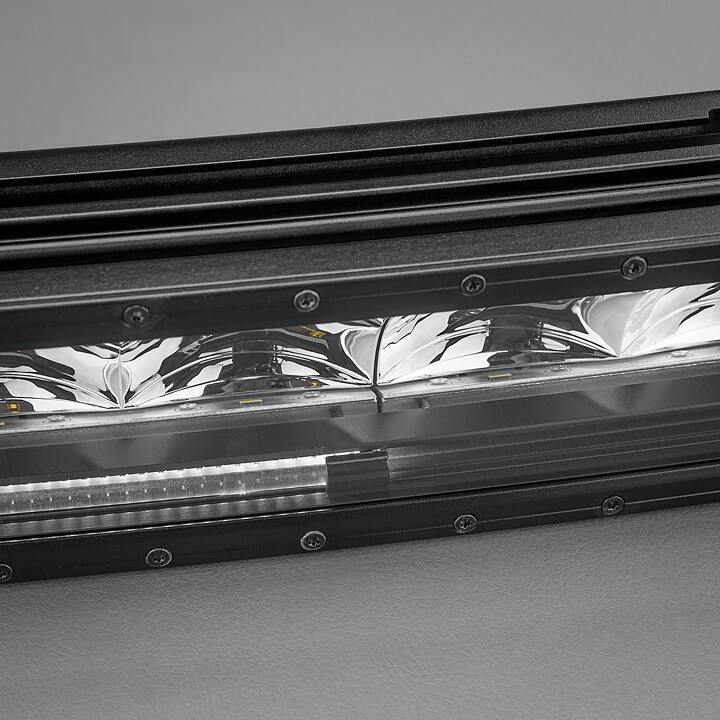

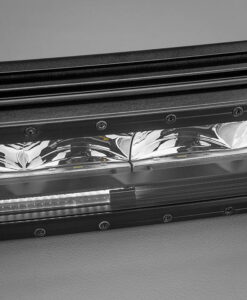

BEAM CHARACTERISTICS. The unconventional use of 15W rearward facing high powered LEDs allows us to achieves new levels of beam intensity & control that simply isn’t possible with traditional reflector designs. The beam characteristics are designed to start working past the point where your high beam ends. The mid to long range end of the beam opens to provide very effective spread illumination.

The Nitty Gritty:

ADVANTAGES OF A LATERAL DRIVING BEAM
Excellent well rounded mid to long range illumination
Significantly minimises adverse reflection from road signs
Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
Excellent alternative to HID, without the associated downsides

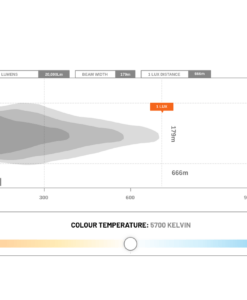

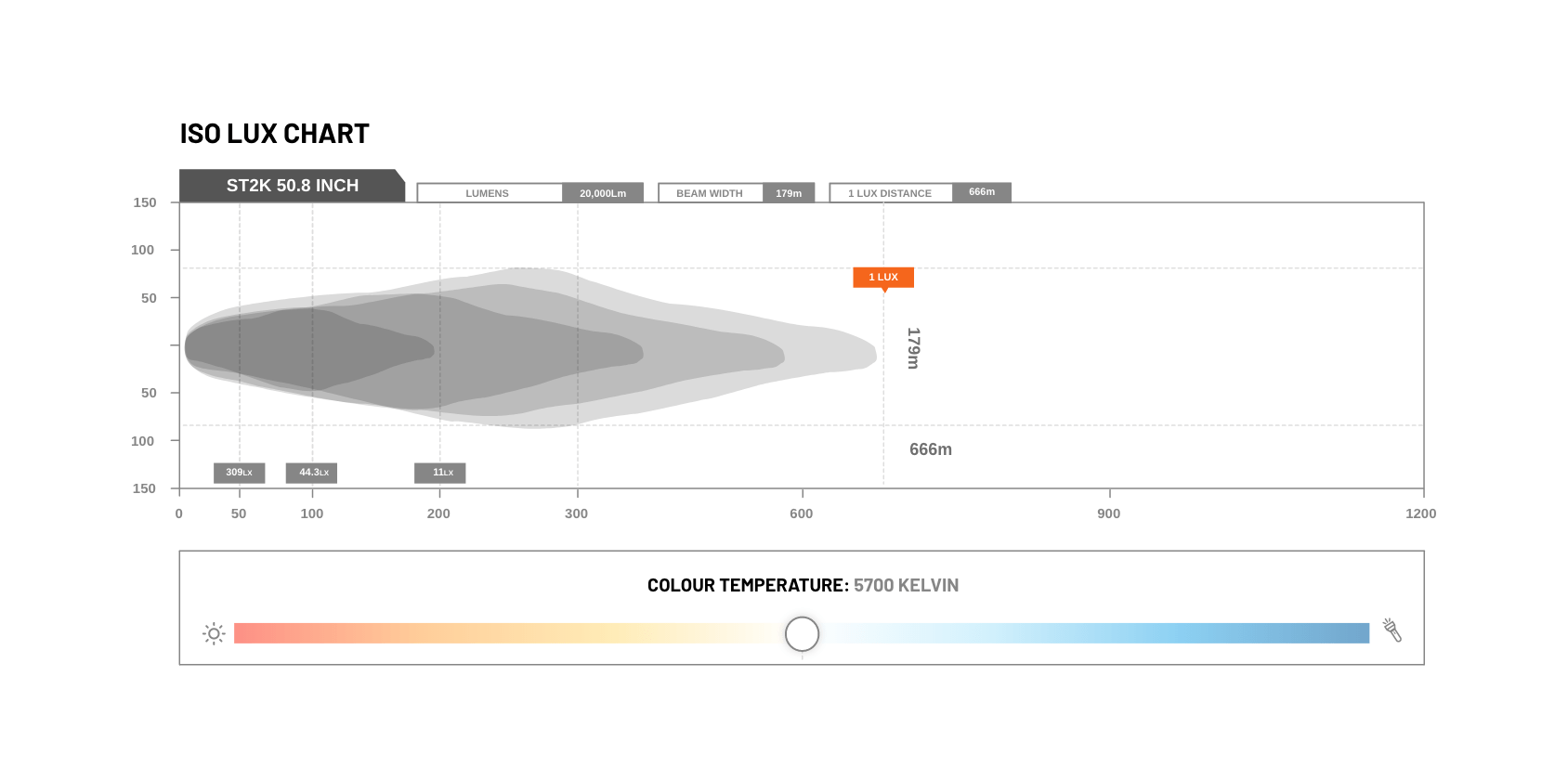

The beam is 90m wide at approx 250m

KEY FEATURES

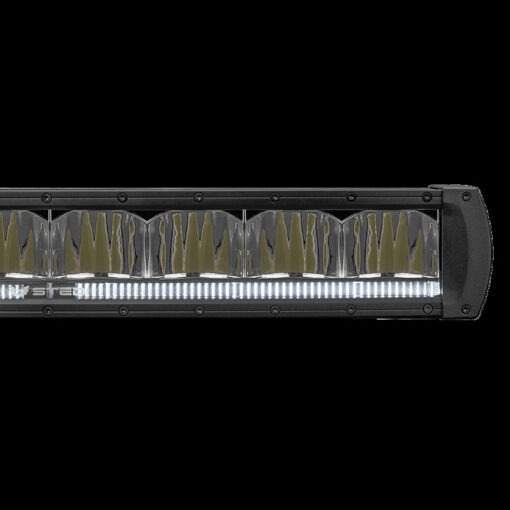

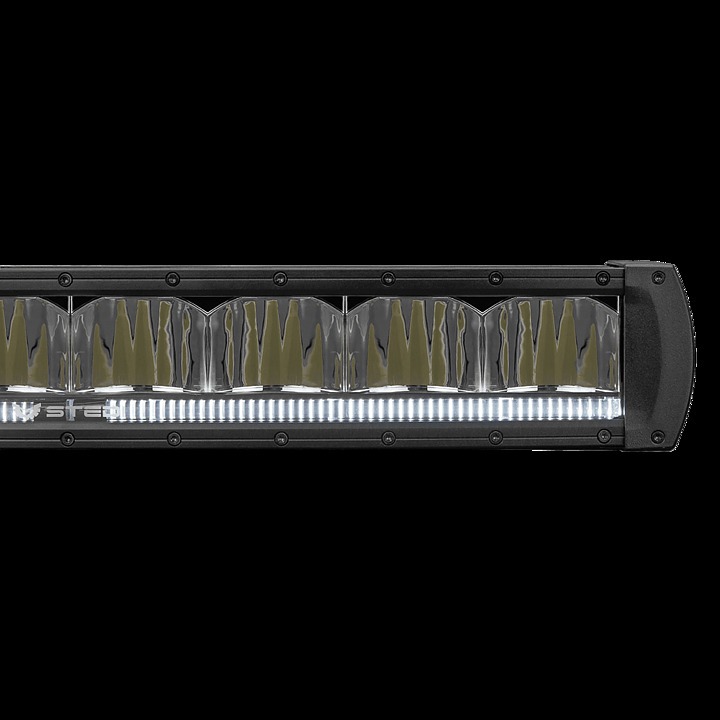

LED Parking / Position Light Function
Breather allows pressure equalization when rapid heat up and cool down cycles occur.
Anodized Polyester Powder Coat

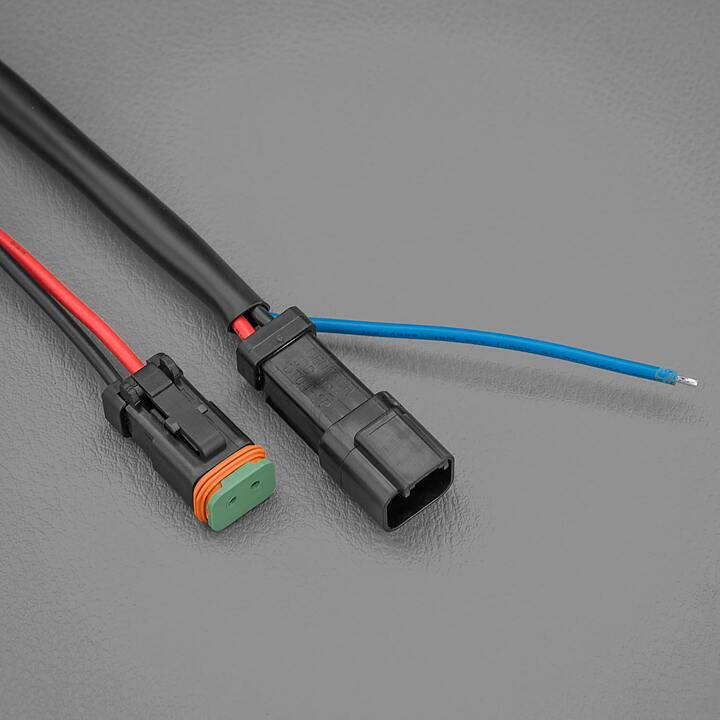

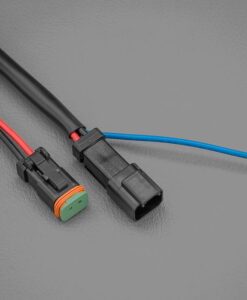

Weatherproof Deutsch® DT2 Connector.

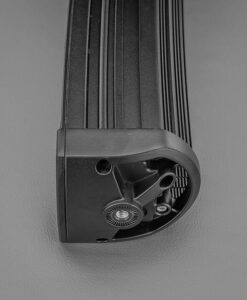

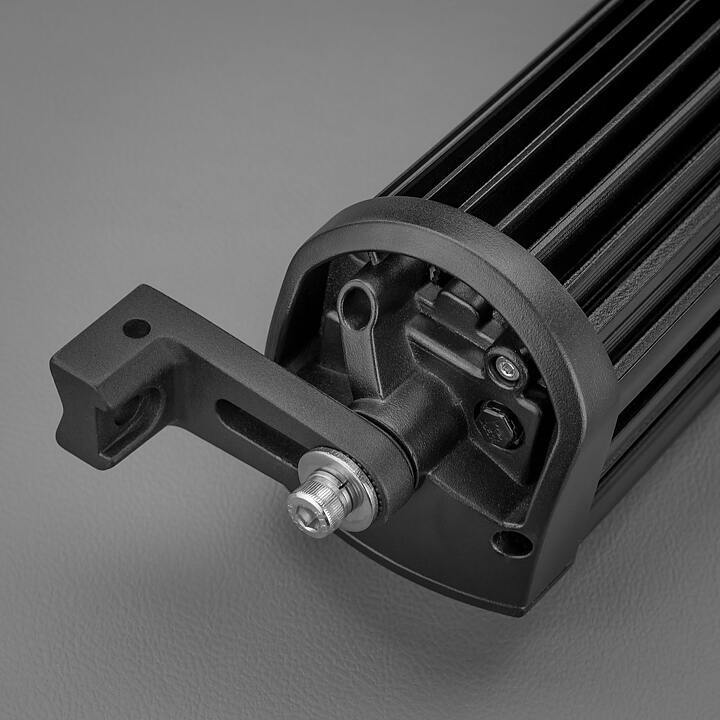

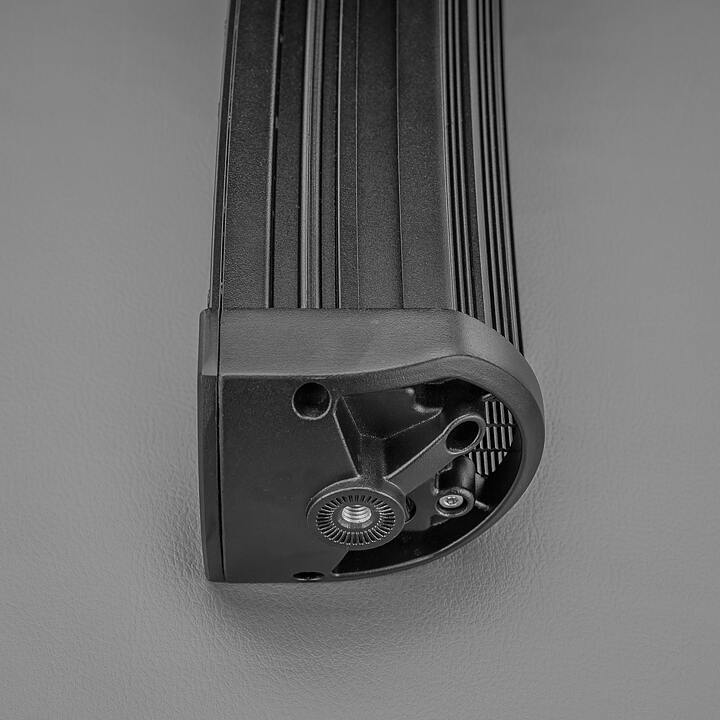

Includes side brackets
Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles.
Protected against reverse polarity
Shock proof, IP68 waterproof, UV Shielded
Protected against RFI / EMC Interference
Voltage & current surge protection
Pulse Width Modulation Thermal Management

Technical Specifications:

MAIN BEAM LED COUNT: 20 x 15W
VOLTAGE : 12V & 24V
LENS MATERIAL: OPTICAL GRADE, HARD COATED LEXAN
LUMENS: 20,000
HOUSING MATERIAL: 6063 EXTRUSION
AMPERES: 20.7A @ 13.2v
LIFESPAN: 50,000
BEAM: DRIVING BEAM
INGRESS PROTECTION: IP68
OPERATING TEMP: -40C ~ +150C
WEIGHT: 5.790kg
CERTIFICATES: E-Mark R10 | CE

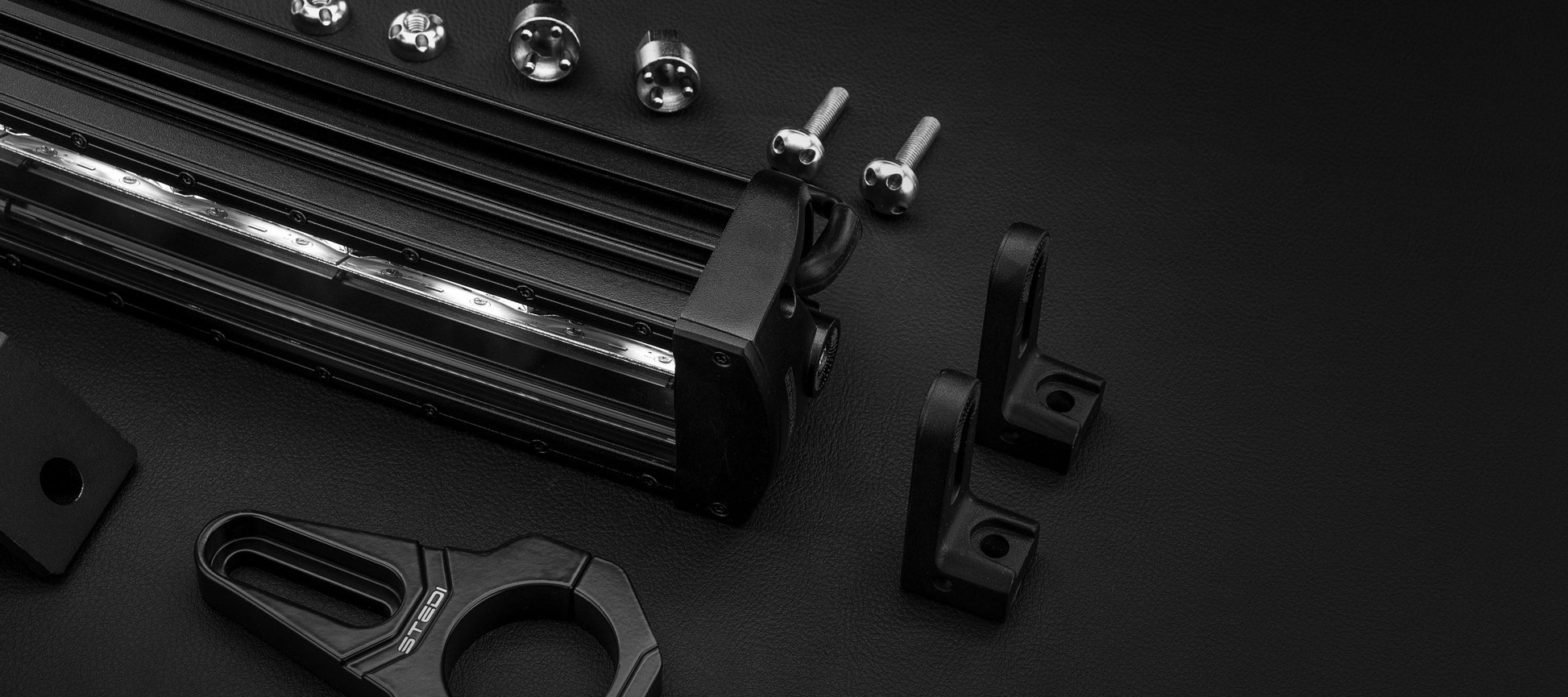

What’s Included:

1 x 50.8″ ST2K-20L LED Light Bar

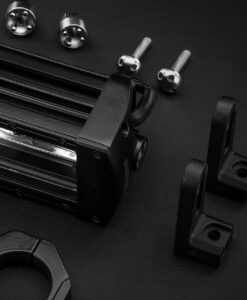

2 x Steel Side Brackets
Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
Wiring Instructions
Comprehensive 304 Stainless Steel fasteners
