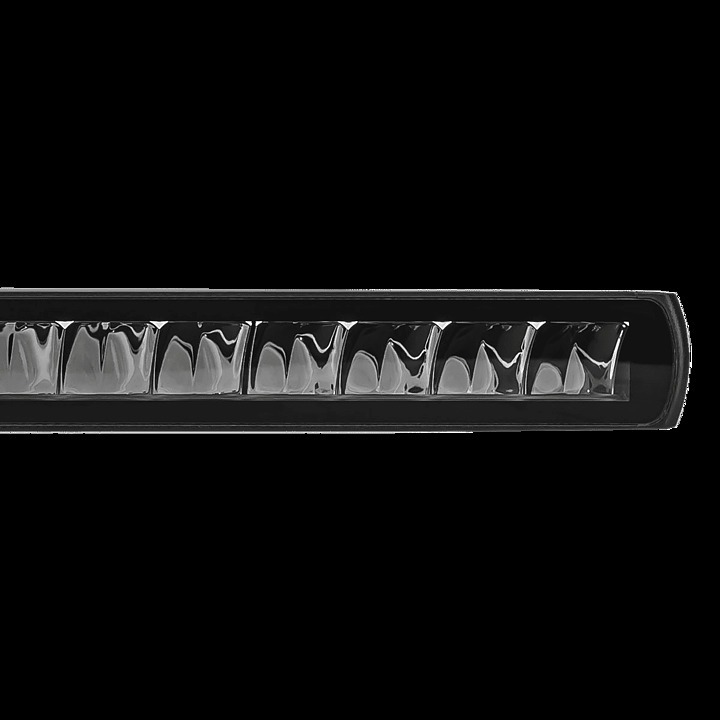

STEDI – ST1K 21.5″ E-Mark LED Light Bar

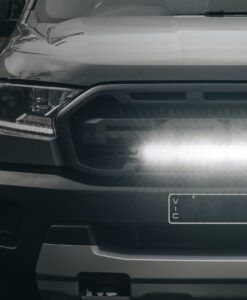

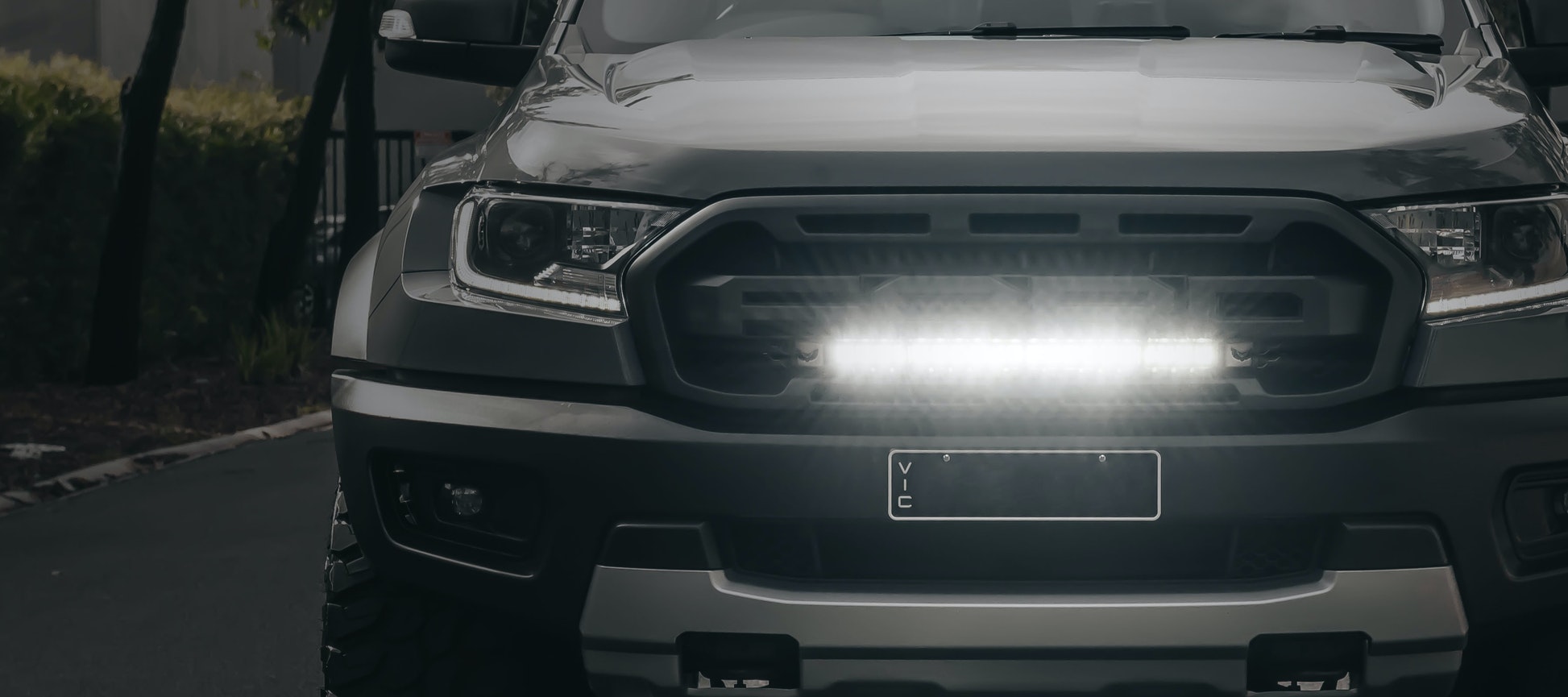

CERTIFIED E-MARK COMPLIANT. Our new ST1K series is ECE approved making it road-legal in Europe. Featuring our innovative hooded reflector design with rear-facing LEDs enables unique beam control – not possible with more conventional optics. The 20 LED is ideal for stealth installations ? think lower grill, behind the upper grill, or the STEDI number plate light mounting bracket.

HIGH-END DESIGN MEETS HIGH PERFORMANCE. The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs. The beam pattern makes it an ideal companion to the vehicles main beam, filling in the road shoulders and adding beam distance over and above your vehicles the main beam, ensuring you arrive at your destination in total comfort.

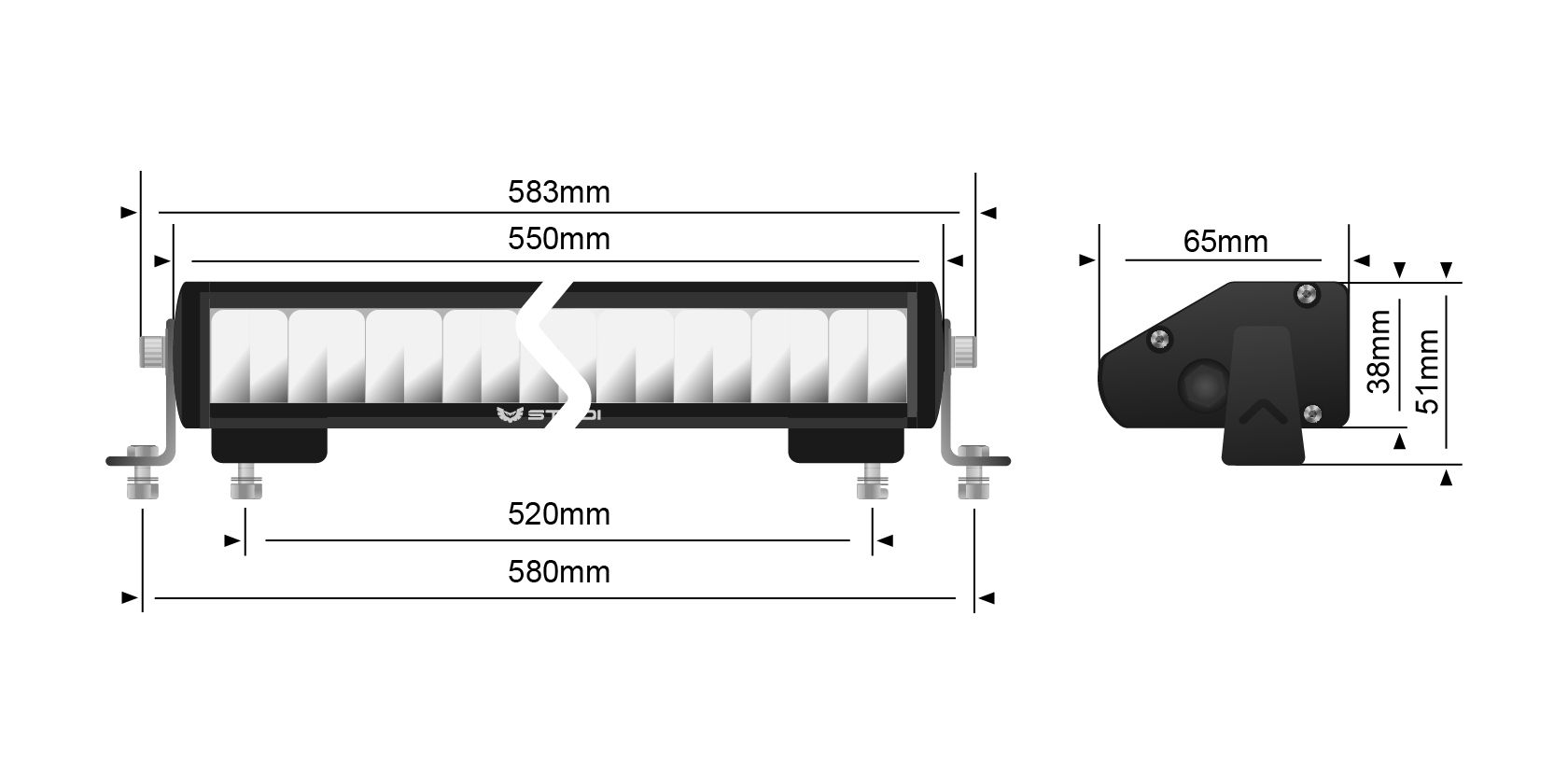

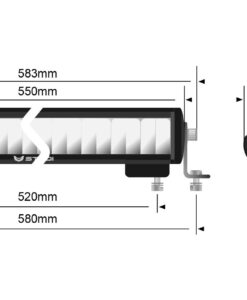

DISCOVER NEW HORIZONS. Urban adventure or journey into the wilderness ? The ST1K will get you there in total comfort. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge to edge bonded lens adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.

The Nitty Gritty:

20 x 5W OSRAM LEDs
RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
IP68 – Submersible to 3m
Environmentally sealed Deutsch DT-2 connectors

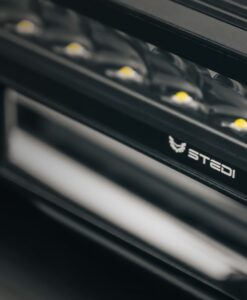

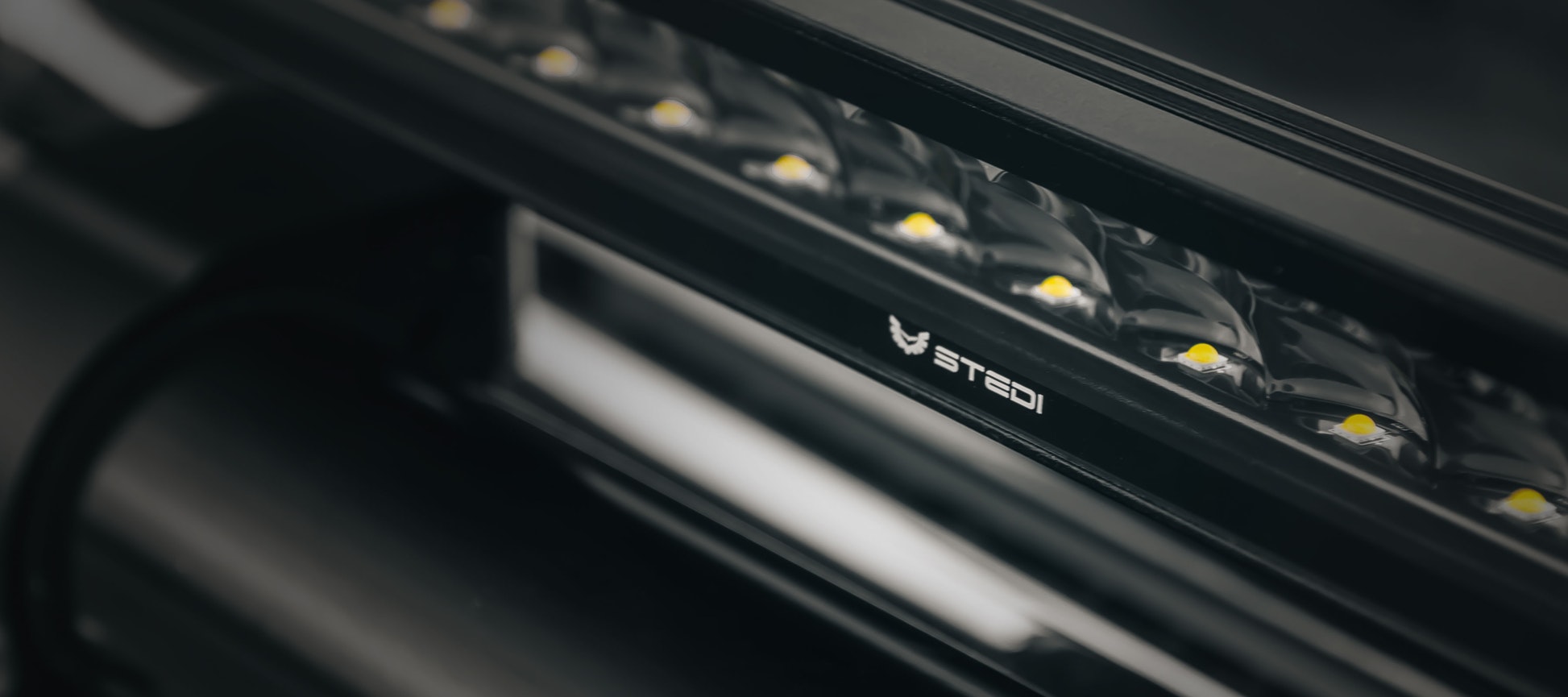

Innovative hooded optics
Driving Beam E mark compliant beam.

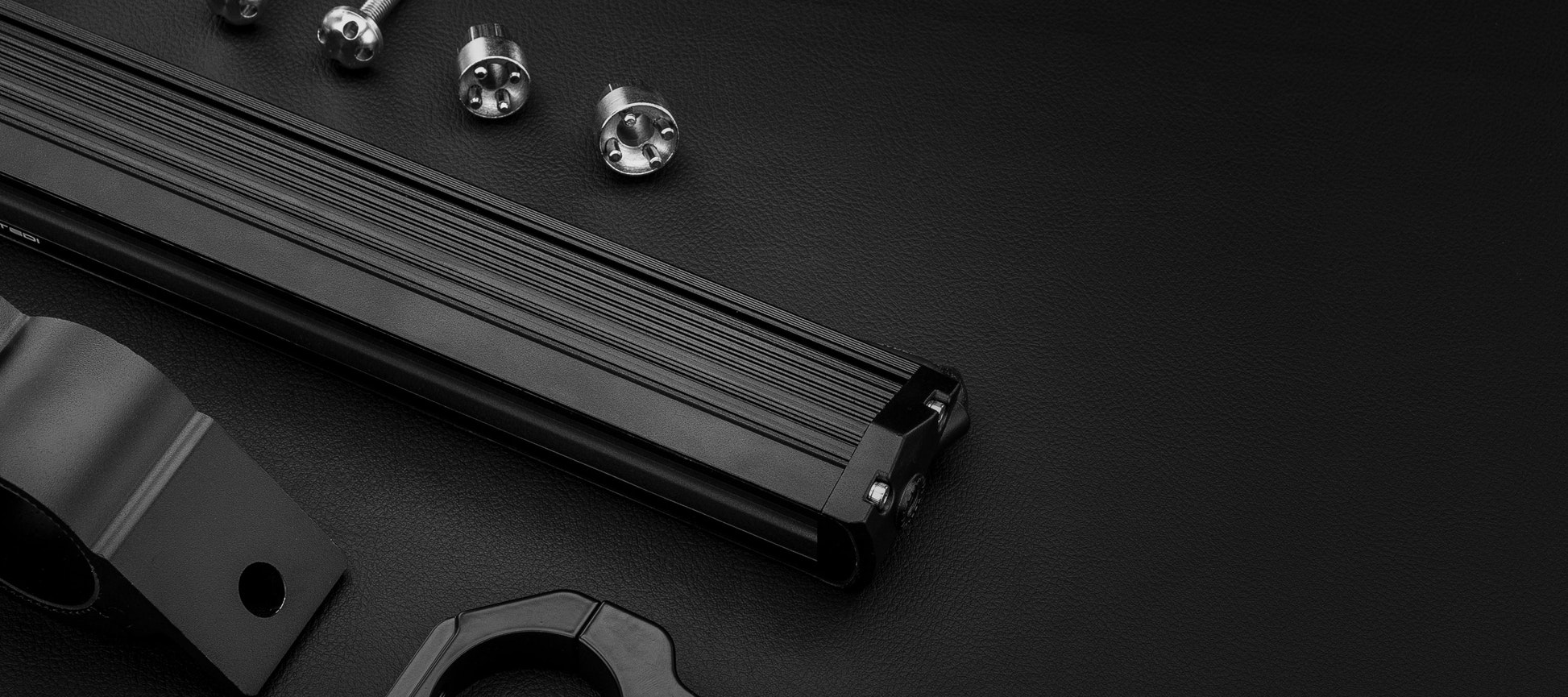

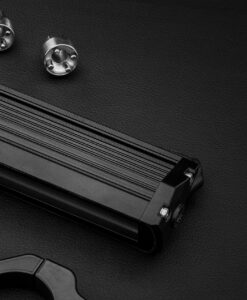

Heavy Duty Adjustable Bottom Mounts & Side bracket included.
Reverse Polarity Protected Circuit (RPPC)
Electronic Thermal Management
Built-in Voltage Surge Protection

INCLUDES: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggy back adaptors)

Technical Specifications:

LED Manufacturer: OSRAM
LED COUNT: 20
VOLTAGE: 9V & 32V
CURRENT DRAW (AMPERES): 8.0a @13.6v
LENS MATERIAL: OPTICAL GRADE, HARD COATED LEXAN

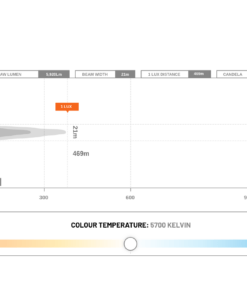

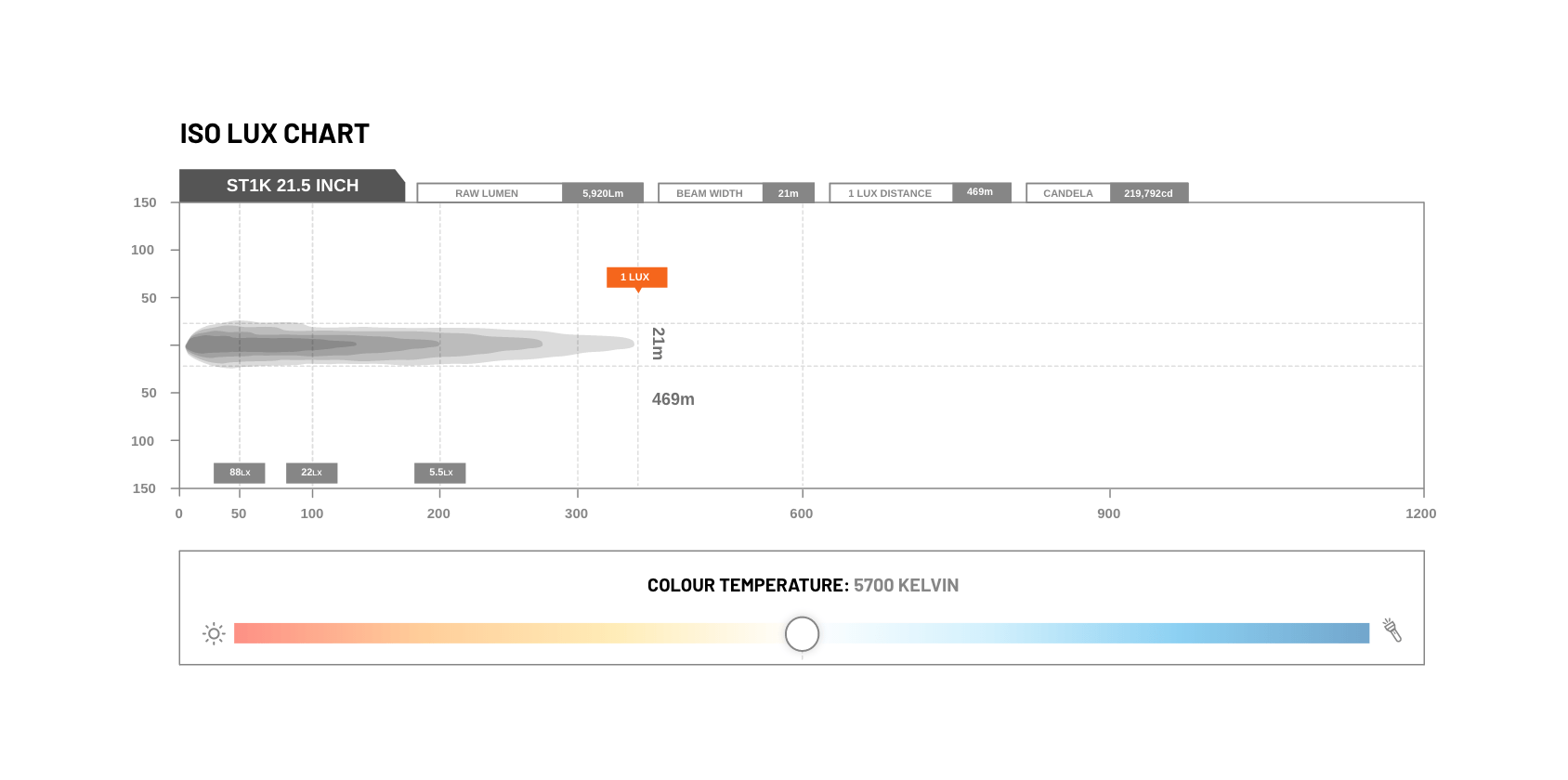

RAW LUMENS: 5,920Lm
PEAK INTENSITY (CANDELA): 219,792cd
HOUSING MATERIAL: A360.0 Cast face plate, extruded Aluminum heat sink
LIFESPAN: 50,000
FLOOD BEAM: 50°
SPOT BEAM: 9°
INGRESS PROTECTION: IP68
OPERATING TEMP: -40C ~ +150C
WEIGHT: 1.290kg

What’s Included:

ST1K 21.5 Inch LED Light Bar
Easy Fit High Beam Wiring Harness
H4 & HB3 adapters to High Beam
Installation Manual
