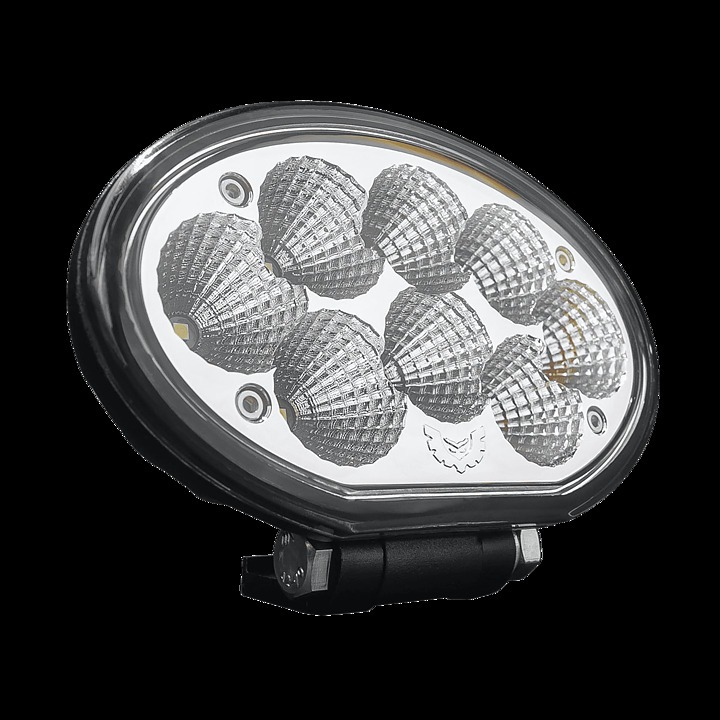

STEDI – 24W Tractor Led Flood Light

The Nitty Gritty:

We welcome the new 2021 V2 variant of our popular 24W LED Tractor Light.

8 x 3W Osram P7 LEDs
CISPR 25 Class 3 RFI Suppressed – We guarantee no interference with radio and communication equipmentÂ

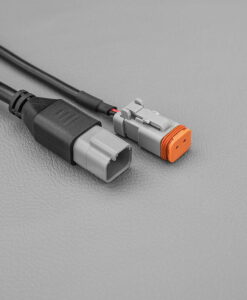

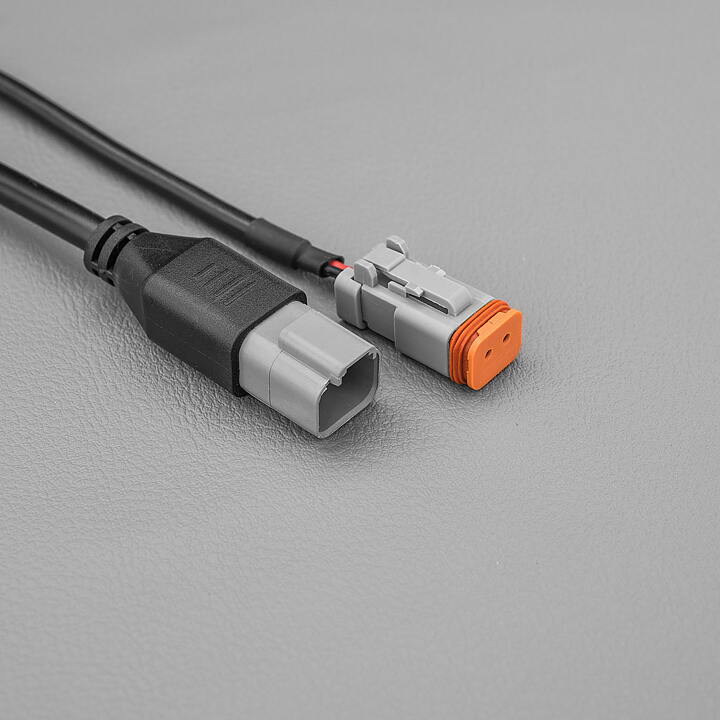

Deutsch DT-2 Environmentally sealedÂ

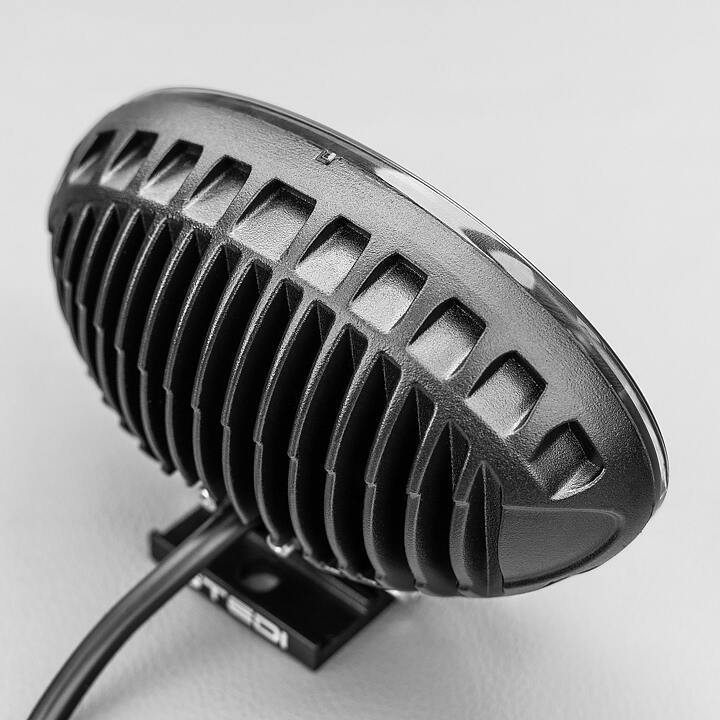

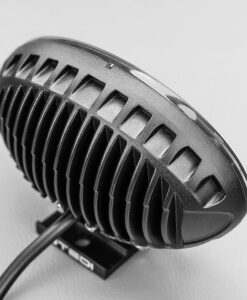

6063 Die-cast aluminium housing

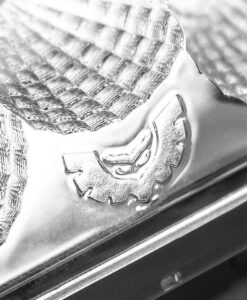

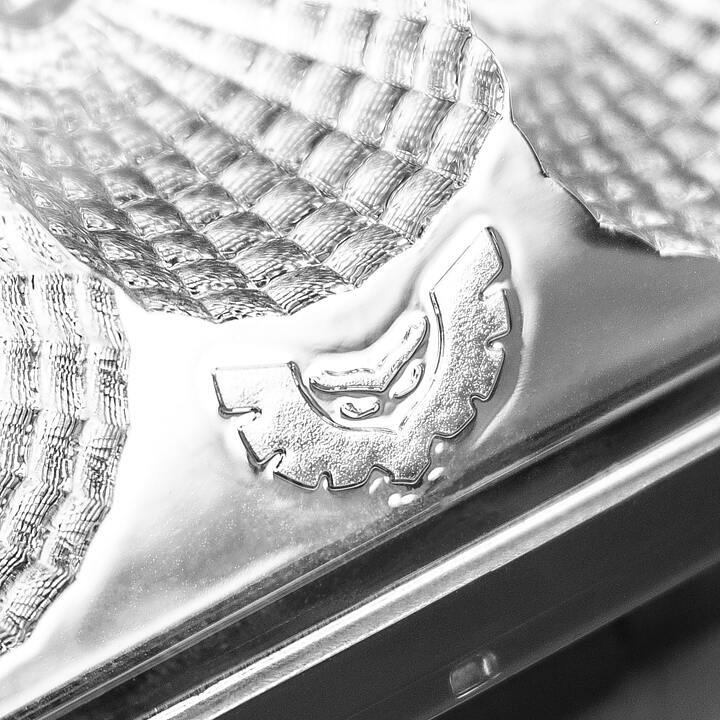

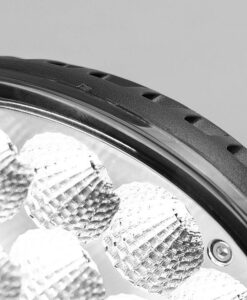

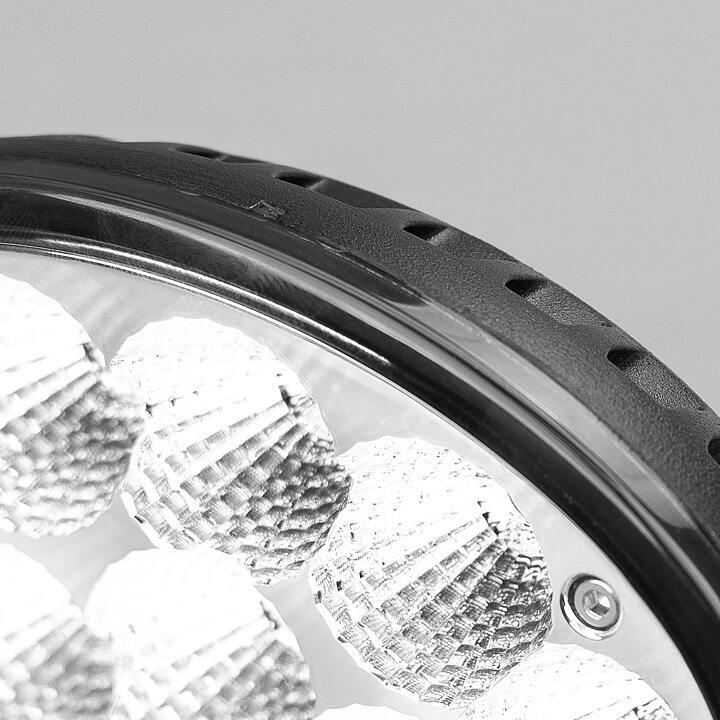

Virtually indestructible UV stabilised polycarbonate lens
5700K True White Coordinated Colour Temperature

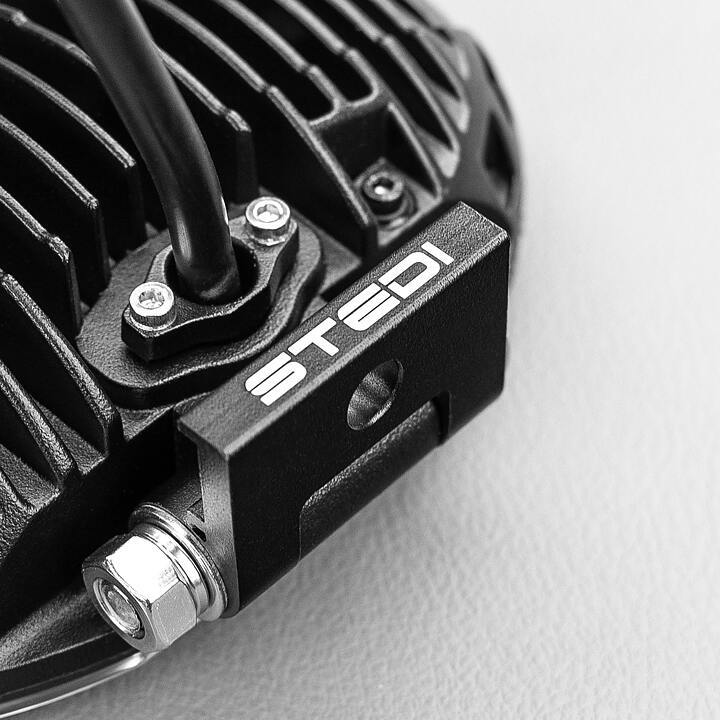

Die-Cast bracket (not folded steel like other offerings)

Compared to the OE John Deere LED offering, these are twice as bright.

Direct replacement for,

Case IH Combine(s) 5088, 5130, 5140, 6088, 6140, 7010, 7088, 7120, 7130, 7140, 7230, 8010, 8120, 8230, 8240, 9120, 9230
Replaces Case IH OEM# 87001315, 87284332, 47682620, 87584890, 84479126
John Deere Combine S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790, T550, T560, T660, T670, W540, W550, W650, W660, 9560, 9560 SH, 9560 STS, 9570 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9870 STS
Replaces John Deere OEM# AH207788, AH205072, AXE16947, AXE40244

Technical Specifications:

POWER 24 Watts
LEDs 8 x 3 Watt Osram P7 LEDs
CURRENT DRAW 2A @ 12VÂ
HOUSING MATERIAL Die-Cast Aluminium
LUMENS 2600lm
INGRESS PROTECTION IP68
COLOUR TEMPERATURE 5700K
LUMEN MAINTENANCE 30,000hrs (LM-80)
LENS Polycarbonate
WEIGHT 0.42kgs
BEAM TYPE Flood
APPROVED CE, ROHS, E-Mark R10
OPERATING TEMP – 40 – 60c
COMPATIBLE INPUT VOLTS 10 – 30V DC

What’s Included:

1 x 24 WATT LED Tractor Flood Light
Stainless Steel Universal U-Bracket
Wire Tails
