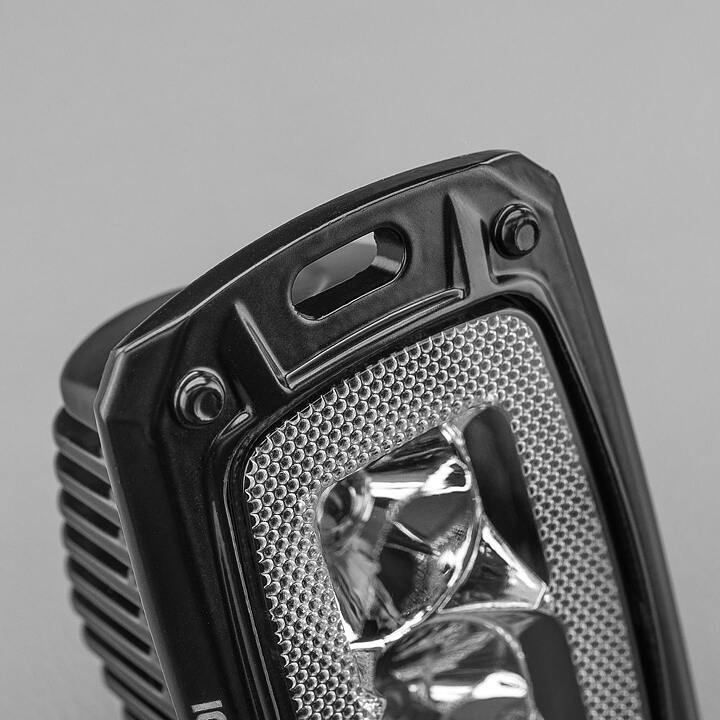

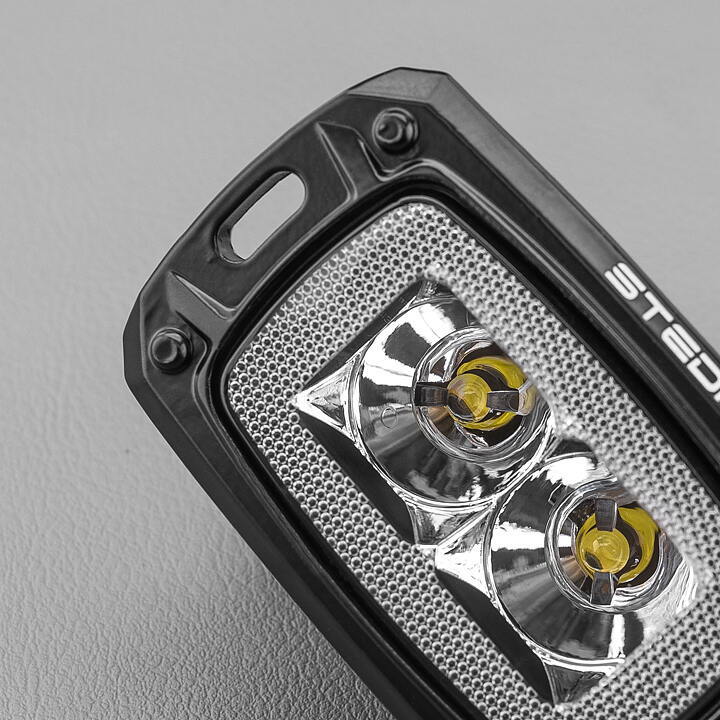

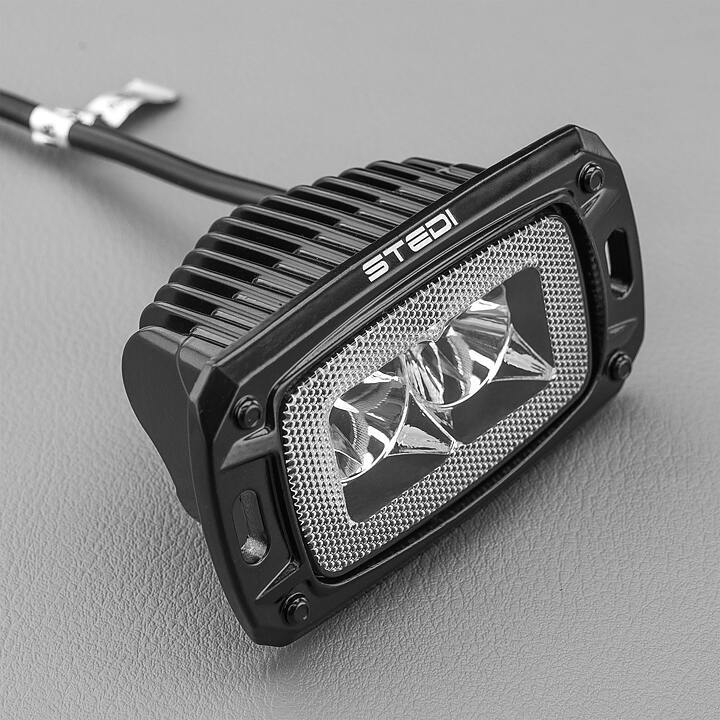

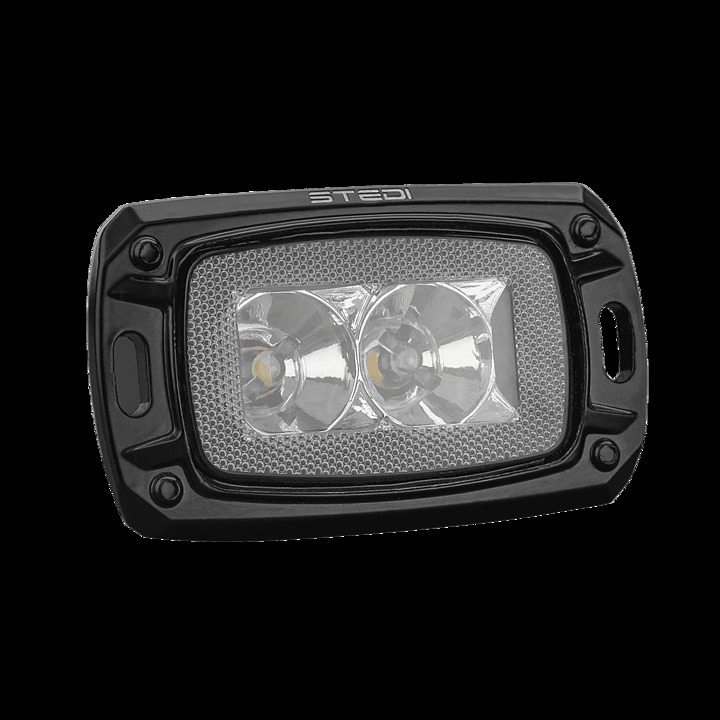

STEDI – 10W Mini LED Flush Mount | Flood

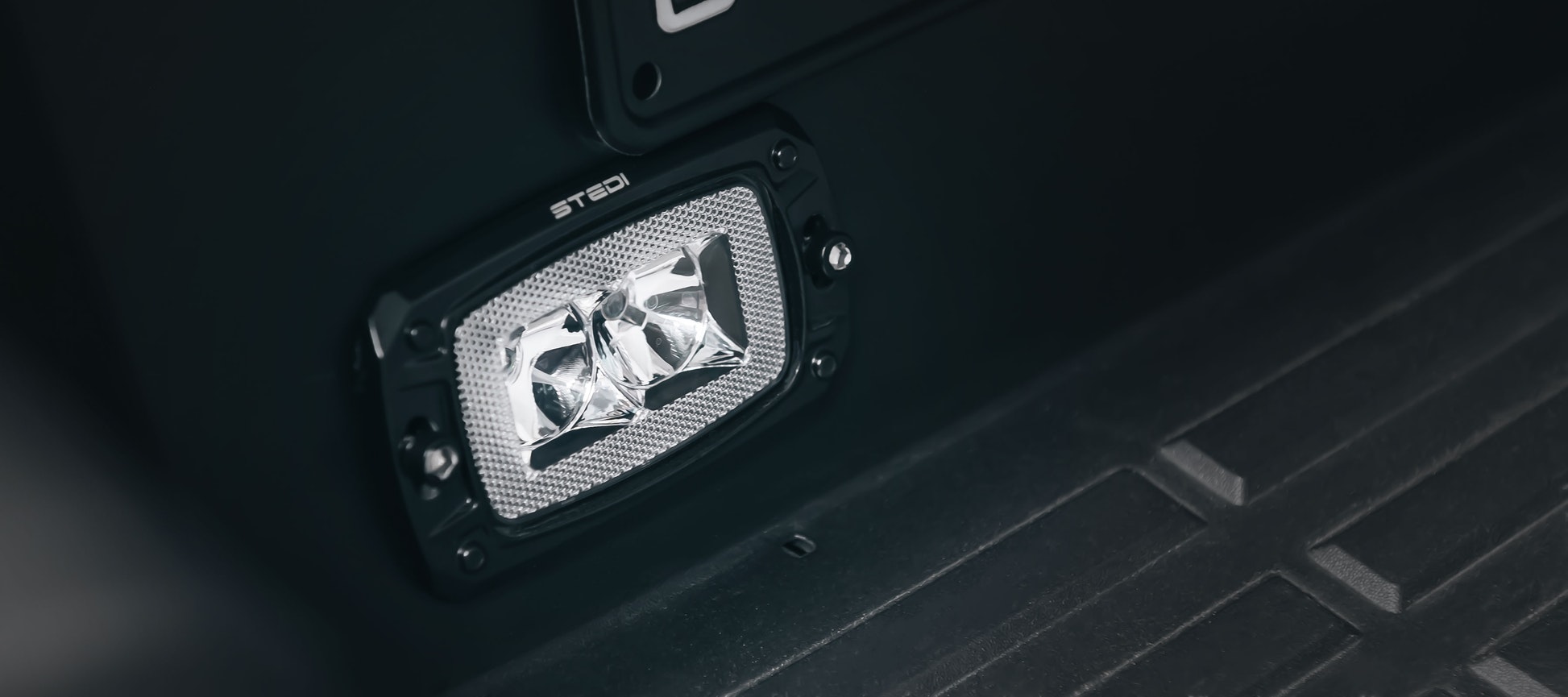

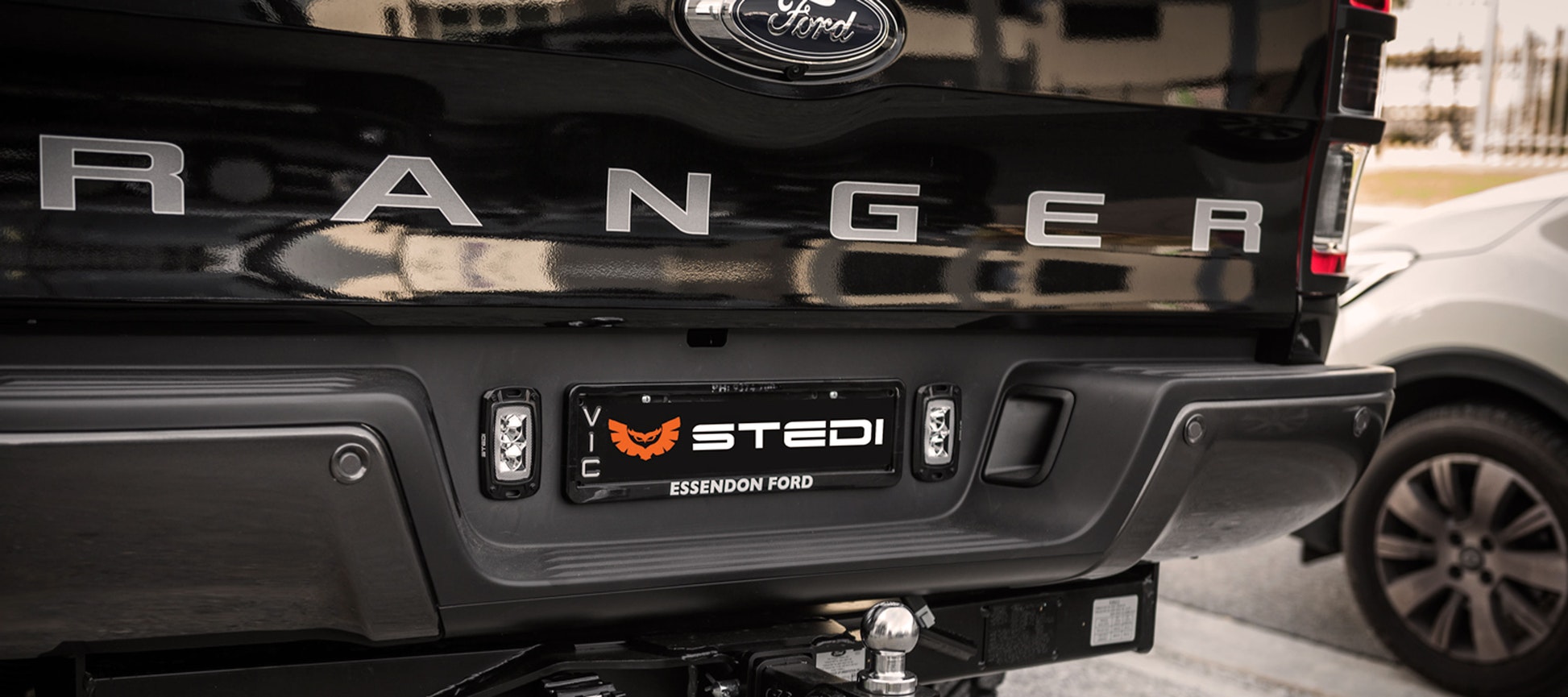

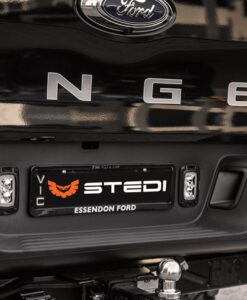

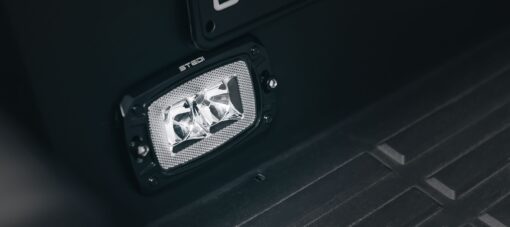

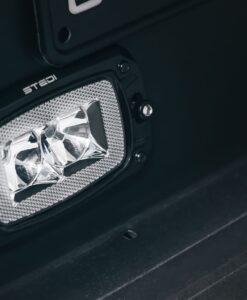

FACTORY FINISH. Our popular 10W Mini LED Work Lights have received a new addition to the family now available in a flush mount for a clean install when using as a reverse light to provide a powerful light with an oem finish.

LOW POWER, HIGH BRIGHTNESS. Running 2x 5w Osram LEDs supplies more light than you would expect from a 300g light. With a 40 degree flood and low current draw of 0.5a @ 13.8v it really is no surprise they are our best selling LED Work Light.

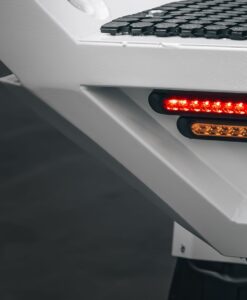

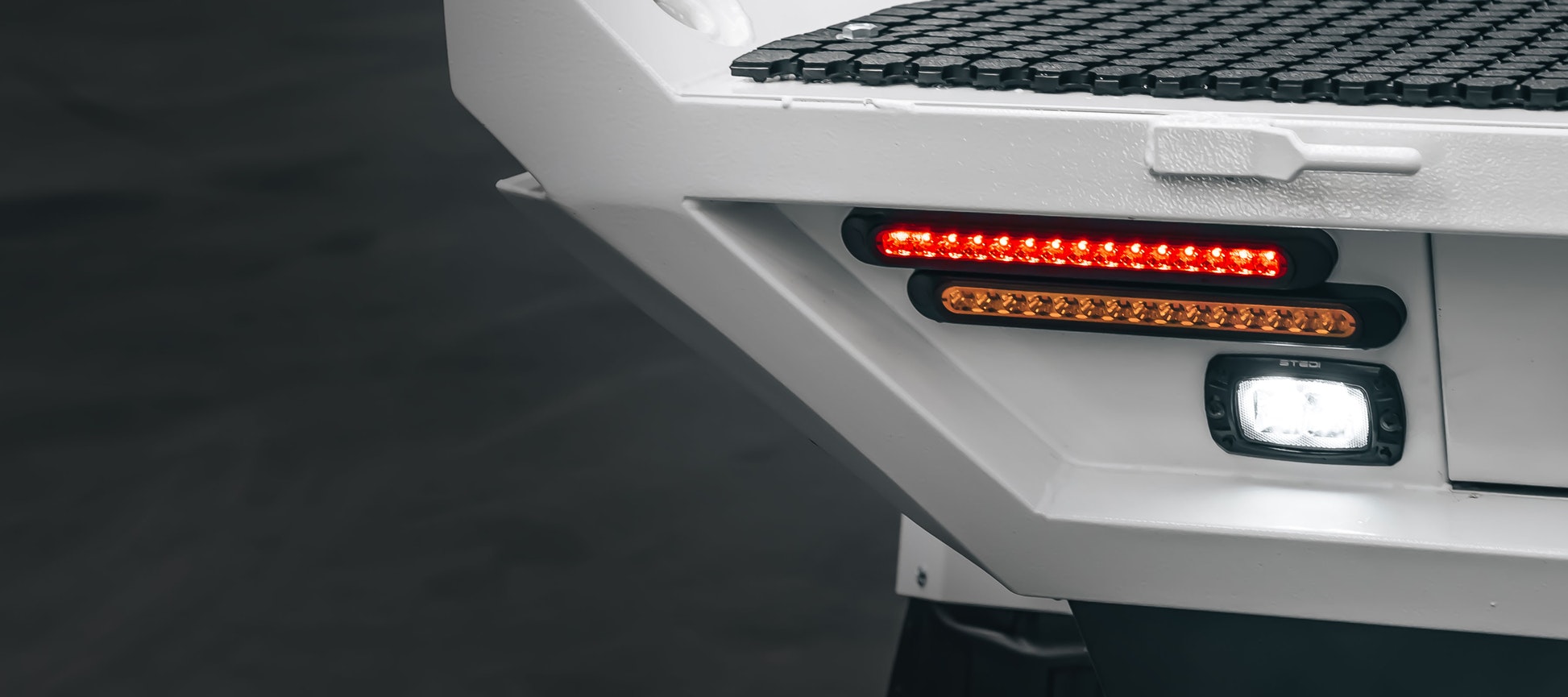

APPLICATION. The 10w Minis have an almost endless list of application and can be used from work/camping lights to bumper mounted reverse lights.

The Nitty Gritty:

KEY FEATURES

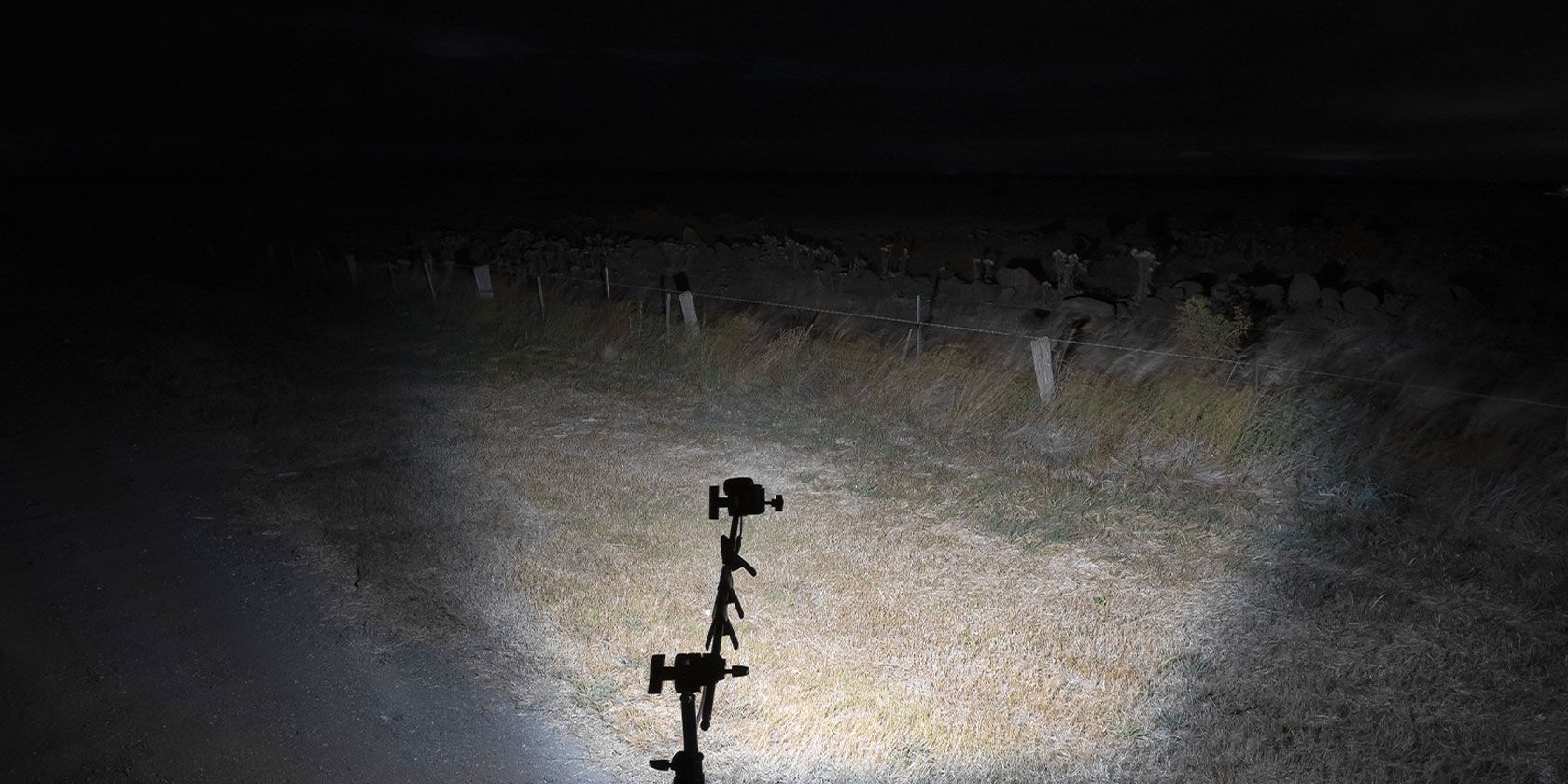

Flood Optics for a wide 40 degree spread pattern
12 Volt and 24v Compatible

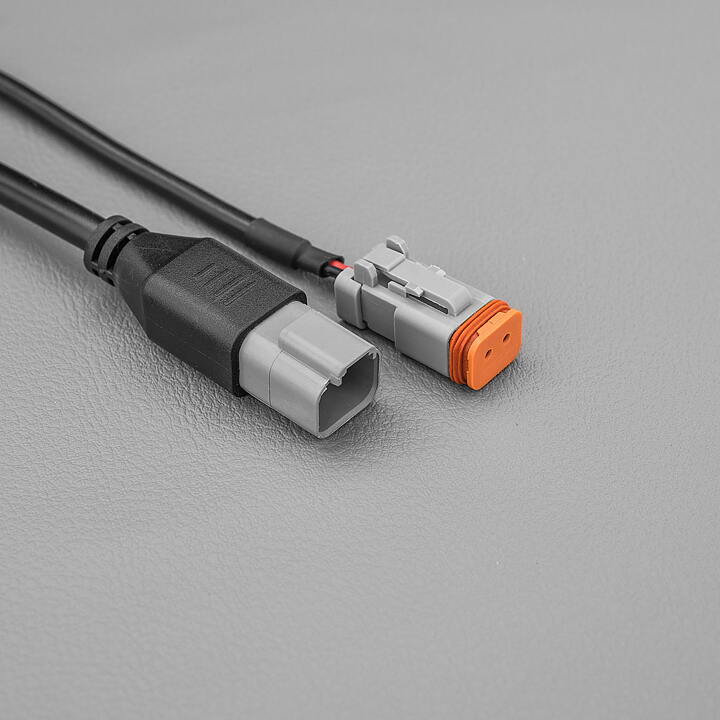

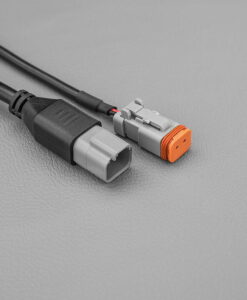

Waterproof Male & Female Deutsch connectors included
Stainless Steel Fittings
IP67 – Protected against immersion up to 1m in depth for no longer than 30 minutes at a time

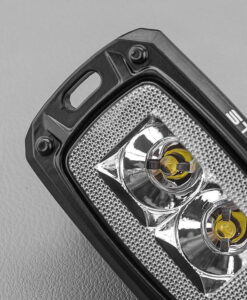

OSRAM GmbH Emitters

Technical Specifications:

LED POWER: 10 WATTS
OPERATING VOLTAGE: 12v & 24v Compatible
LED CHIPS: 5W x 2 Osram LED’s
COLOUR TEMPERATURE: 5700K
RAW LUMENS: 1,000Lm
CURRENT DRAW: 0.5A @ 13.8V
BEAM: Flood Beam
WATERPROOF: IP67
DUSTPROOF & ANTI-VIBRATION: YES
LENS: Optical PC
MOUNTING BRACKET: STAINLESS STEEL

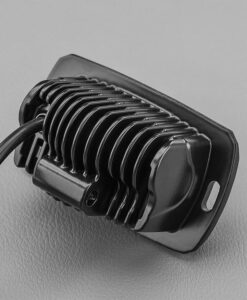

HOUSING MATERIAL: Cast Aluminum Housing
LIFE SPAN: 50000+ HOURS

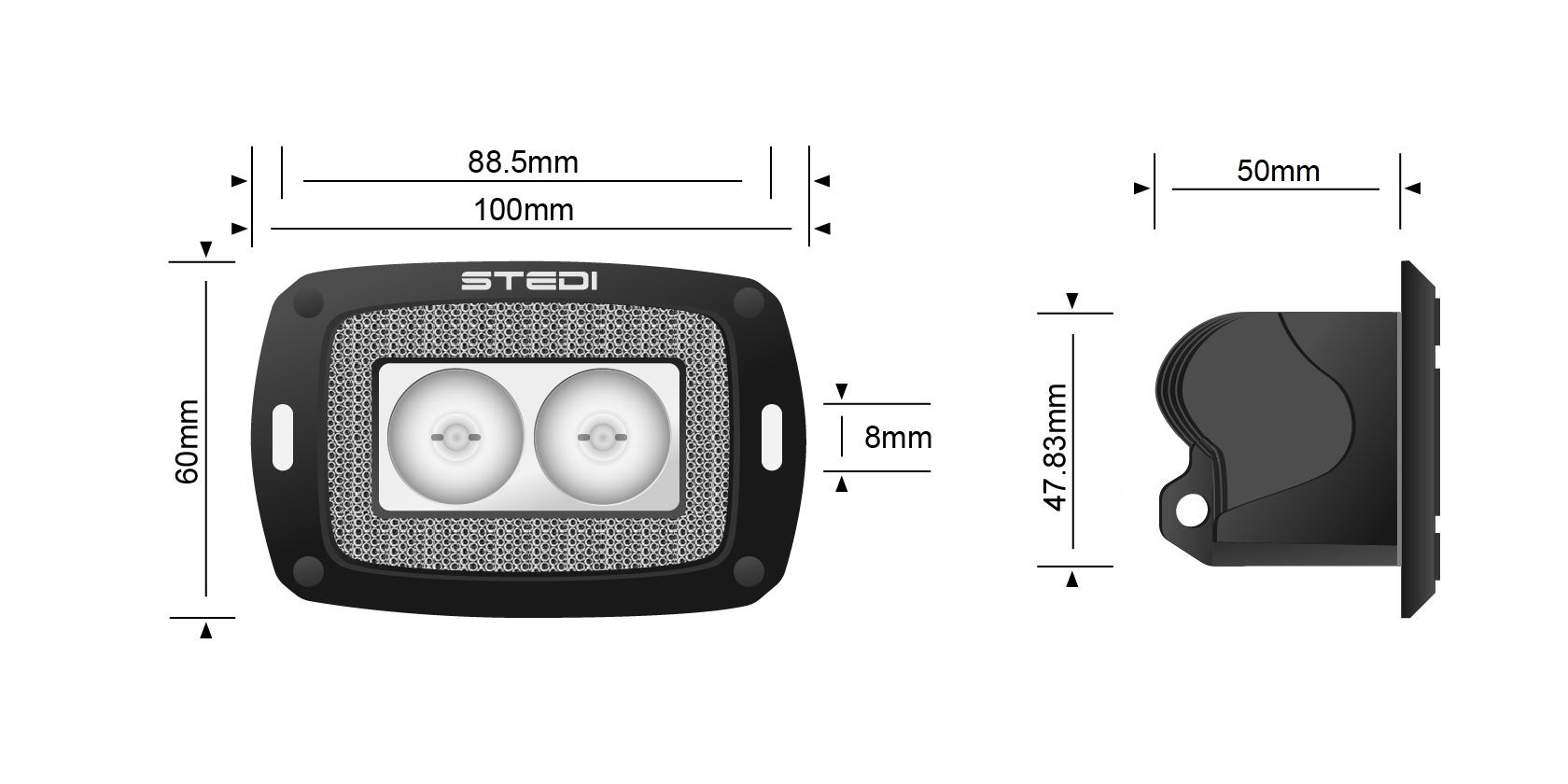

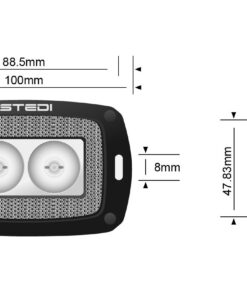

DIMENSIONS: (W) 77mm x (H) 48mm (D)55mm
CERTIFICATES: CE, RoHs & ECE
WEIGHT: 0.3kg

What’s Included:

1 x 10W Mini LED Flush Mount
2 x M6 Bolts
2 x Nylock Nut
2 x Flat Washer
Allen Wrench
Male & Female Deutsch Connectors
