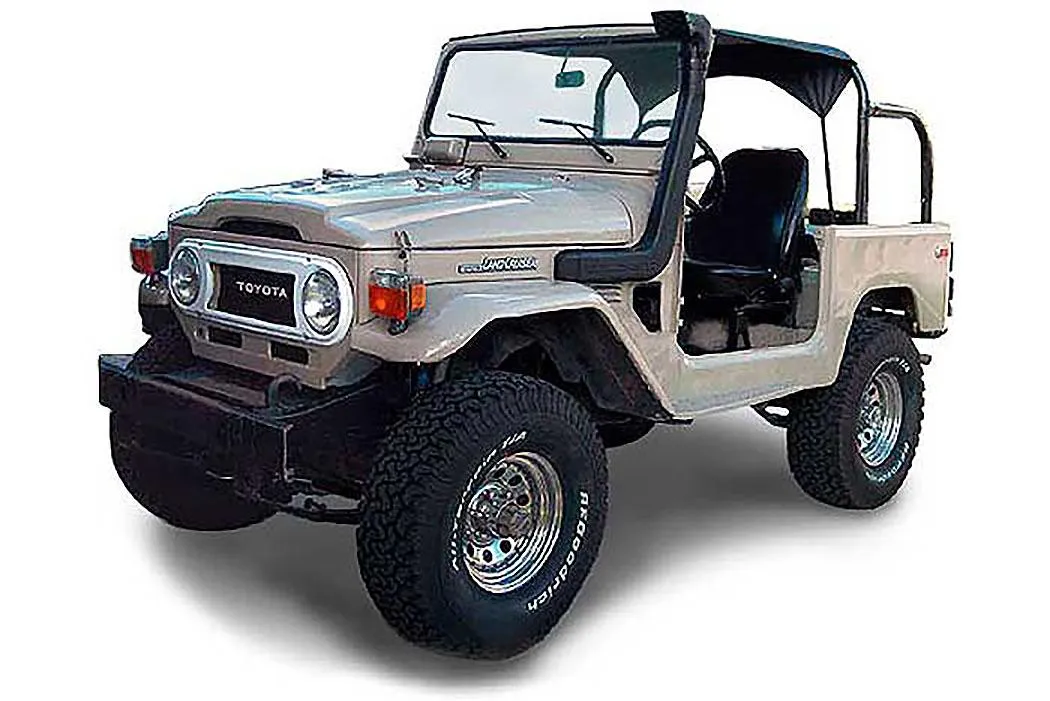

Safari Snorkel – Toyota LandCruiser 40, 42, 45 & 47 Series (80-84) 3.4L Diesel & 4.2L Petrol

Name: Safari Snorkel - Toyota LandCruiser 40, 42, 45 &amp; 47 Series (80-84) 3.4L Diesel &amp; 4.2L Petrol
SKU: SS401HF
Availability: BackOrder

€532,17

Product code: SS401HF Categorieën: Safari Snorkels, Safari Toyota, Snorkels Tags: 3.4L, 4.2L, 40 serie, Benzine, diesel, landcruiser, petrol, prado, safari, Snorkel, Toyota

Safari Snorkel – Toyota LandCruiser 40, 42, 45 & 47 Series (80-84) 3.4L Diesel & 4.2L Petrol

The SS401HF Safari Snorkel suitable for Toyota 40, 42, 45 & 47 Series Landcruiser 4×4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1980 – 12/1984 engines.

With the huge air flow demands of each engine in the Toyota 01/1980 – 12/1984 4.2L Diesel 40, 42, 45 & 47 Series Landcruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body – but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream – thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota 40, 42, 45 & 47 Series Landcruiser 4×4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

Safari Snorkel suitable for Toyota 40, 42, 45 & 47 Series Landcruiser 4×4 Features

Safari Automotive Australian designed, moulded and manufactured
Raised air intake to prevent your engine from ingesting harmful elements
Increased airflow for your 01/1980 – 12/1984 2F 4.2L Diesel engine
Water separating air ram design to remove water from the air stream
Durable and UV stable snorkel and air ram for added strength
Comprehensive Snorkel fitting guide suitable for Toyota 40, 42, 45 & 47 Series Landcruiser 4WD with an accurate template for assisting with installation.

Safari Snorkel suitable for Toyota 40, 42, 45 & 47 Series Landcruiser 4×4 Kit – Parts List

Safari Snorkel suitable for Toyota 4×4 Part Number SS401HF

ss401r toyota 40 42 45 47 series landcruiser snorkel kit

ITEM	PART NO.	DESCRIPTION	QTY
1	325-133-000R	BODY – SNORKEL	1
2	000-135-250	3 1/2″ AIR RAM ASSEMBLY	1
3	325-032-000	BRACKET – UPPER MOUNTING	1
4	000-002-100	BOLT – HEX – M6 x 14MM (SEMS)	2
5	000-043	BOLT – S/H – 8mm x 1.25 x 20mm	2
6	000-305	WASHER – STAR – 8mm	2
7	000-110	STUD – S/S – 8mm x 1.25 x 25mm – O/L	3
8	000-311-300	WASHER – BODY – 8mm	3
9	000-205-300	NUT – NYLOC -8mm x 1.25	3
10	000-885-200	CUFFED HOSE – 75mm I.D. x 1100mm	1
11	000-907	CLAMP – HOSE – 60/80	2
12	325-017-000	TEMPLATE	1
13	000-987-365	TIE – CABLE – 365mm	1
14	000-804-112E	HOSE – JOINER 70mm ID x 28mm	1
15	000-914/B	HOSE CLAMP – SIZE 56 (BLACK)	1
