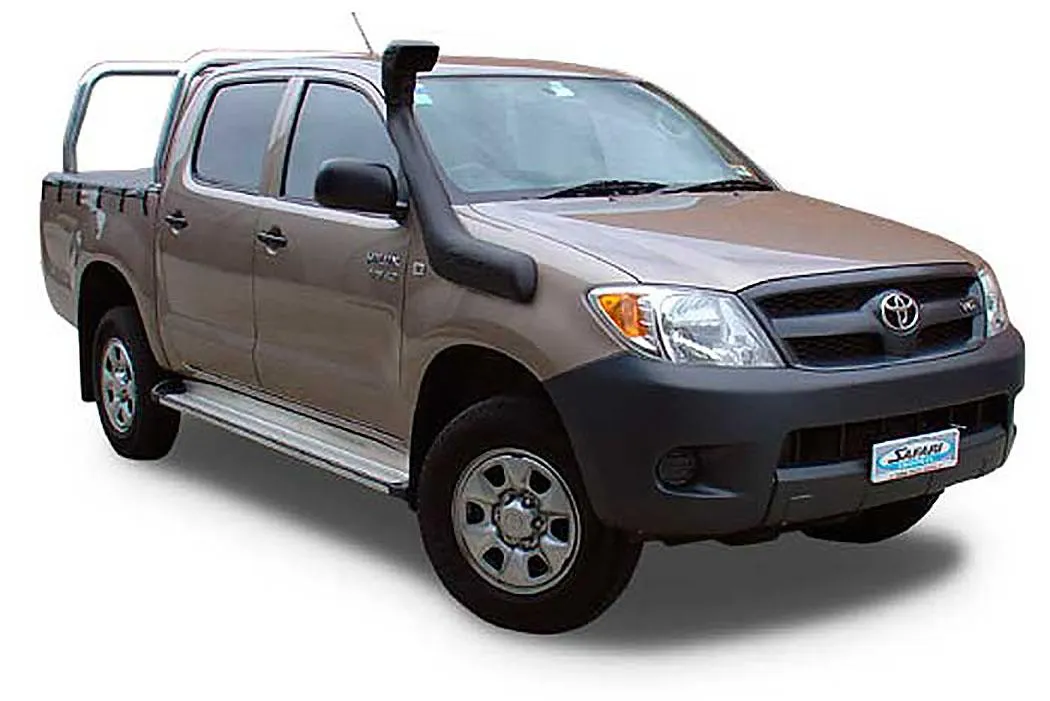

Safari Snorkel – Toyota Hilux 25 Series 03/2005 – 07/2011 3.0L Diesel 1KD-FTV
€469,24
Op voorraad
Safari Snorkel – Toyota Hilux 25 Series 03/2005 – 07/2011 3.0L Diesel 1KD-FTV

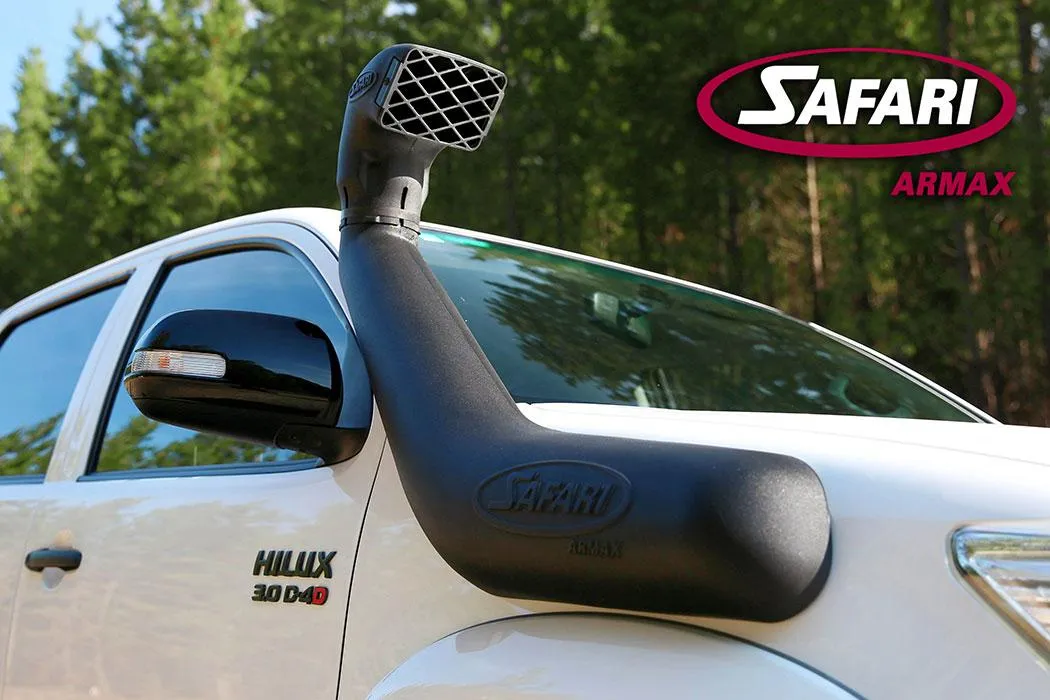

The SS120HF Safari Snorkel suitable for Toyota Hilux 25 Series Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 04/2005 – 09/2011 3.0L Diesel 1KD-FTV engines.
With the huge air flow demands of each engine in the Toyota 04/2005 – 09/2011 3.0L Diesel 1KD-FTV Hilux 25 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body – but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream – thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Snorkel suitable for Toyota Hilux 25 Series 4×4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel suitable for Toyota Hilux 25 Series breezes through the toughest off-road conditions on the planet.
Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 04/2005 – 09/2011 3.0L Diesel 1KD-FTV engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive snortkel fitting guide suitable for Toyota Hilux 25 Series 4WD with an accurate template for assisting with installation.
- Up to 50% increased airflow for your 25 Series Hilux engine
- Safari’s rounded style Air Ram; however with minimum 4” neck and an optimised air flow, low restriction grill
- Australian designed, moulded and manufactured
- Design and flow tested by our in house engineers for maximum performance
- Development in conjunction with other soon to be released ARMAX™ performance enhancement products.
- Raised air intake to prevent your engine from ingesting harmful elements
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Snorkel fitting guide suitable for Toyota Land Cruiser 4WD with an accurate template for installation.
- Lifetime warranty
Parts
Safari Snorkel suitable for Toyota Hilux 25 Series 4×4 Kit – Parts List
Safari Snorkel suitable for Toyota Hilux 25 Series 4×4 Snorkel Part Number SS120HF
| ITEM | PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
| 1 | 320-133-000 | BODY – SNORKEL | 1 |
| 2 | 000-135-650 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 320-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX 6.0mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-951-300 | CREW – S/T 4.2mm x 16mm | 3 |
| 6 | 000-960 | BODY CLIP – PLASTIC | 3 |
| 7 | 320-024-200 | HOSE – AIR ENTRY | 1 |
| 7a | 000-908 | CLAMP – HOSE 70/90mm | 1 |
| 7b | 000-910 | CLAMP – HOSE 90/110mm | 1 |
| 8 | 000-110 | STUD – S/S 8mm x 1.25 x 25mm – O/L | 6 |
| 9 | 000-311 | WASHER – BODY 8mm x 30mm | 6 |
| 10 | 000-205 | NUT – NYLOC 8mm x 1.25mm | 6 |
| 11 | 320-017-000 | TEMPLATE | 1 |
| 12 | 000-914/B | HOSE CLAMP – SIZE 56 (BLACK) | 1 |
| Gewicht | 7 kg |
|---|
