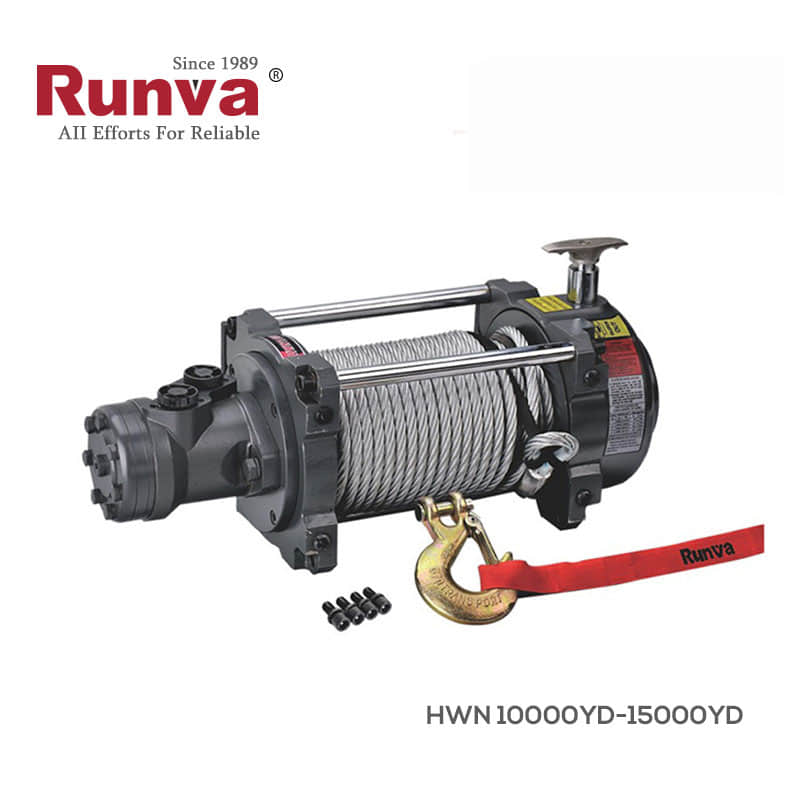

Runva Winch – HWN15000YD serie
€1.139,00
Runva Winch – HWN15000YD serie
Features:
- Wet-type hydraulic brake with powerful braking torque, long life and reliable transmission
- 3-Stage planetary reducer with full alloy gear for high strength and long life
- IP 67 waterproof design to prevent rain and dust
- Application in engineering ,wrecker and recovery,etc
Specifications:
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor displacement | 80ml/r |
| Oil flow | 5～60L/min |
| Pressure | 13Mpa |
| Gear reduction ratio | 33.4:1 |
| Cable (Dia.× L) | Ø15/32″×87 ‘ (Ø12mm×26.5m) |

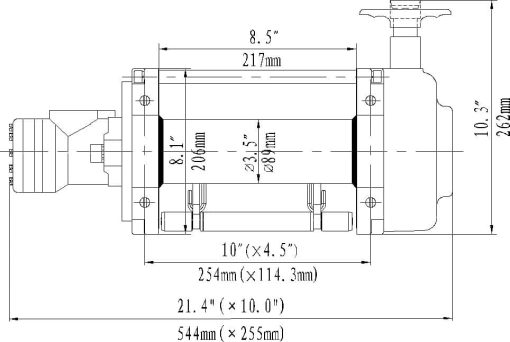

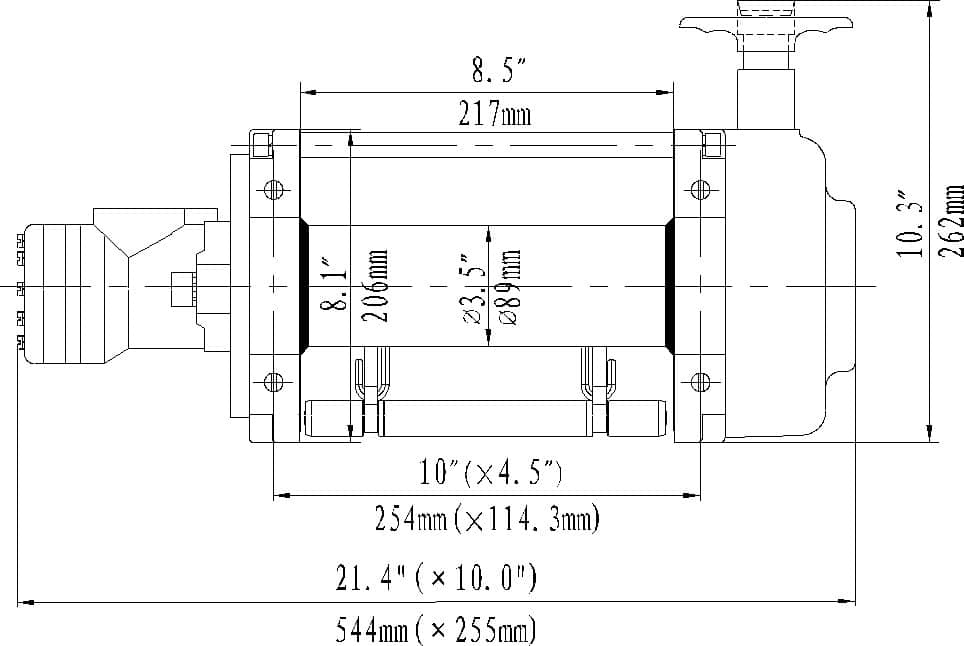

| Drum size(Dia.× L) | Ø3.5 “×8.5” (Ø89mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | |||||
| Line pull Lbs.(kg) | Pressure Mpa(Psi) | Flow G/min(L/min) | Line speed ft/min(m/min) | Layer of wire rope | Rated line pull Lbs.(kg) | Total rope on drum ft (m) |
| 0 | 2.0(290.1) | 1.3(5.0) | 1.6 (0.5) | 1 | 15000(6804) | 18.0(5.5) |
| 5000(2268) | 4.3(623.7) | 2.6(10.0) | 3.3(1.0) | 2 | 12120(5498) | 40.7 (12.4) |
| 10000(4536) | 8.7(1261.8) | 5.3(20.0) | 6.6(2.0) | 3 | 10168(4612) | 65.9(20.1) |
| 12000(5443) | 10.0(1450.3) | 7.9(30.0) | 9.8(3.0) | 4 | 8757(3972) | 86.9(26.5) |
| 15000(6804) | 13.0(1885.4) | 15.9(60.0) | 19.7(6.0) | |||
| Item | HWN15000YD | ||
| Overall dimensions | 21.3″×10.0″×10.3″ | ||
| (L×W×H) | 541mm ×255mm ×262mm | ||
| Net weight (Ibs/kg) | 132lbs /60kg |
| Gewicht | 60 kg |
|---|---|
| Afmetingen | 54,1 × 25,5 × 26,2 cm |
