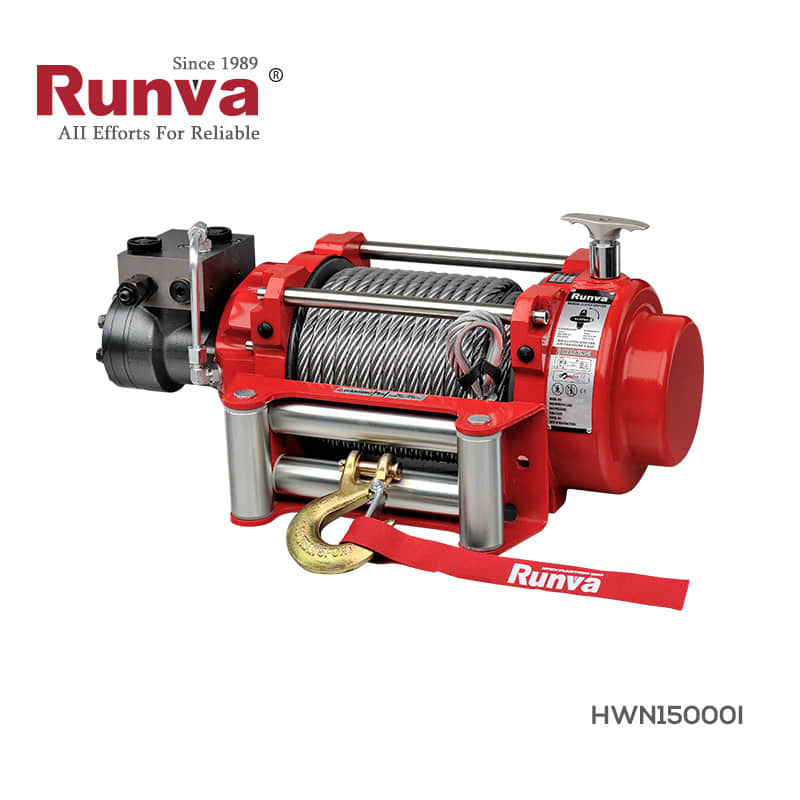

Runva Winch – HWN15000I serie

€1.189,00

Wet-type hydraulic brake with powerful braking torque, long life and reliable transmission
3-Stage planetary reducer with full alloy gear for high strength and long life
IP 67 waterproof design to prevent rain and dust
Application in engineering ,wrecker and recovery,etc

Line Speed Amperes Volts First Layer				Line Pull and Rope Capacity in Layer Line Pull
Line pull Lbs.(kg)	Pressure Mpa(Psi)	Flow G/min(L/min)	Line speed ft/min(m/min)	Layer of wire rope	Rated line pull Lbs.(kg)	Total rope on drum ft (m)
0	2.0(290.1)	1.3(5.0)	1.6 (0.5)	1	15000(6804)	18.0(5.5)
5000(2268)	4.3(623.7)	2.6(10.0)	3.3(1.0)	2	12120(5498)	40.7 (12.4)
10000(4536)	8.7(1261.8)	5.3(20.0)	6.6(2.0)	3	10168(4612)	65.9(20.1)
12000(5443)	10.0(1450.3)	7.9(30.0)	9.8(3.0)	4	8757(3972)	86.9(26.5)
15000(6804)	13.0(1885.4)	15.9(60.0)	19.7(6.0)
