Runva Winch - HWN11000YD serie

Runva Winch - HWN11000YD serie - Afbeelding 2

Runva Winch – HWN11000YD serie

€1.099,00

Product code: HWN11000-YDRF Categorieën: For Towtruck, Lieren, Runva Lieren Tags: 11000lbs, cable, HWN11000YD, hydraulic, hydraulisch, kabel, lier, staal, steel, winch

Beschrijving
Extra informatie

Runva Winch – HWN11000YD serie

Features:

Wet-type hydraulic brake with powerful braking torque, long life and reliable transmission
3-Stage planetary reducer with full alloy gear for high strength and long life
IP 67 waterproof design to prevent rain and dust
Application in engineering ,wrecker and recovery,etc

Specifications:

Rated line pull	11000 lbs (4990 kgs)
Motor displacement	65ml/r
Oil flow	15～45L/min
Pressure	12.5Mpa
Gear reduction ratio	25.5:1
Cable (Dia.× L)	Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m)
Drum size(Dia.× L)	Ø2.8 “×8.6” (Ø72mm×219mm)
Mounting bolt pattern	10 “×4.5 ” (254mm×114.3mm) 4-M12

Line Speed Amperes Volts First Layer				Line Pull and Rope Capacity in Layer Line Pull
Line pull Lbs.(kg)	Pressure Mpa(Psi)	Flow G/min(L/min)	Line speed ft/min(m/min)	Layer of wire rope	Rated line pull Lbs.(kg)	Total rope on drum ft (m)
0	2.0(290.1)	1.3(5.0)	2.3 (0.7)	1	11000(4990)	16.4 (5.0)
3000(1361)	4.5(652.7)	2.6(10.0)	4.6(1.4)	2	8695(3944)	37.2(11.3)
6000(2722)	6.8(986.2)	5.3(20.0)	8.9(2.7)	3	7189(3261)	60.9(18.6)
9000(4082)	9.0(1305.3)	9.2(35.0)	15.1(4.6)	4	6128(2779)	83.7(25.5)
11000(4990)	12.5(1812.9)	10.6(40.0)	17.4(5.3)

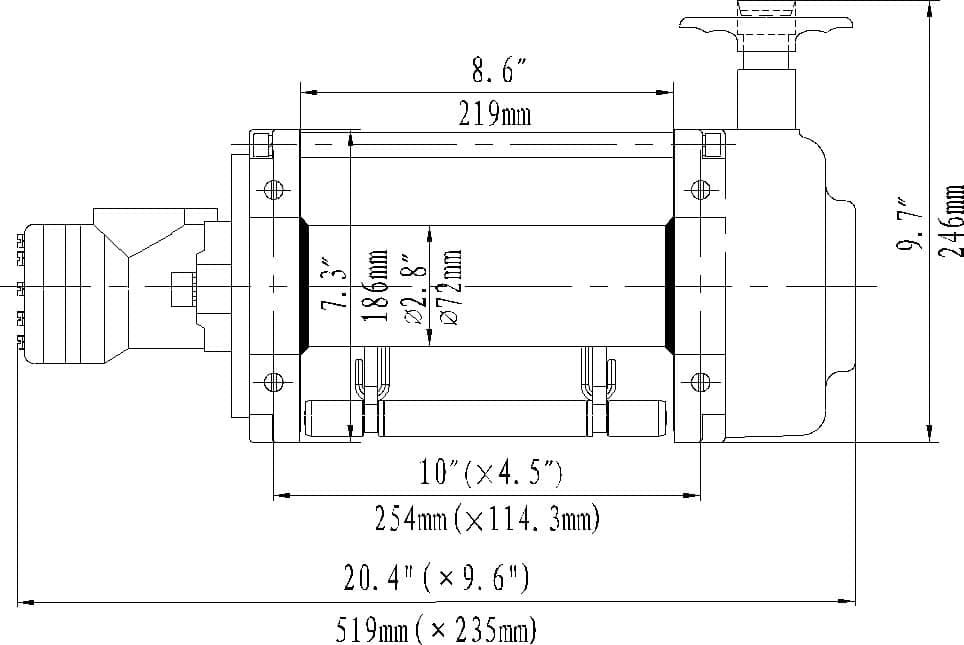

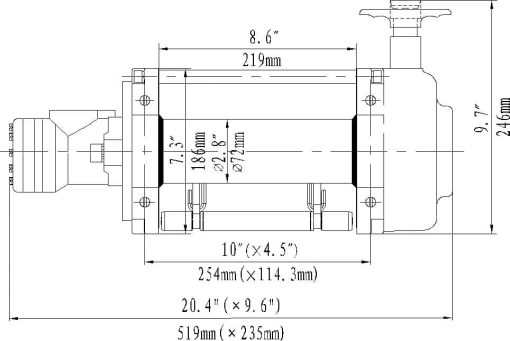

Item	HWN11000YD
Overall dimensions	20.4″×9.6″×9.7″
(L×W×H)	519mm ×235mm×246mm
Net weight (Ibs/kg)	117lbs /53kg

Gewicht	53 kg
Afmetingen	51,9 × 23,5 × 24,6 cm
