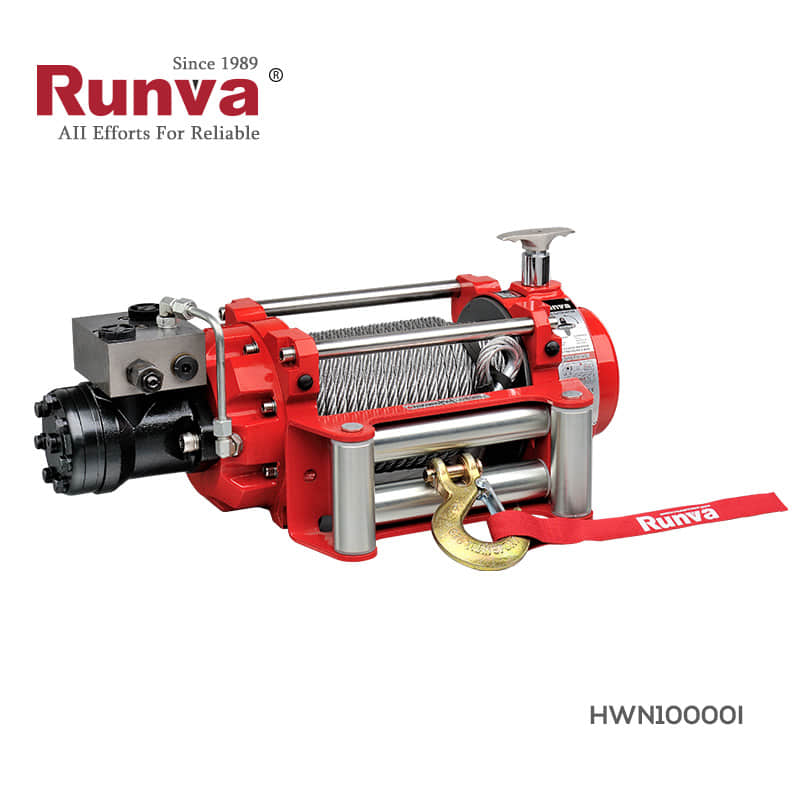

Runva Winch – HWN10000I serie
€1.049,00
Runva Winch – HWN10000I serie
Features:
- Wet-type hydraulic brake with powerful braking torque, long life and reliable transmission
- 3-Stage planetary reducer with full alloy gear for high strength and long life
- IP 67 waterproof design to prevent rain and dust
- Application in engineering ,wrecker and recovery,etc
Specifications:
| Rated line pull | 10000 lbs (4536 kgs) |
| Motor displacement | 65ml/r |
| Oil flow | 15～45L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | 25.5:1 |
| Cable (Dia.× L) | Ø13/32″×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size(Dia.× L) | Ø2.8 “×8.6” (Ø72mm×219mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | |||||
| Line pull Lbs.(kg) | Pressure Mpa(Psi) | Flow G/min(L/min) | Line speed ft/min(m/min) | Layer of wire rope | Rated line pull Lbs.(kg) | Total rope on drum ft (m) |
| 0 | 2.0(290.1) | 1.3(5.0) | 2.3 (0.7) | 1 | 11000(4536) | 16.4 (5.0) |
| 3000(1361) | 4.5(652.7) | 2.6(10.0) | 4.6(1.4) | 2 | 8040(3647) | 37.2(11.3) |
| 6000(2722) | 6.8(986.2) | 5.3(20.0) | 8.9(2.7) | 3 | 6721(3049) | 60.9(18.6) |
| 9000(4082) | 9.0(1305.3) | 9.2(35.0) | 15.1(4.6) | 4 | 5775(2620) | 83.7(25.5) |
| 11000(4536) | 12.5(1812.9) | 10.6(40.0) | 17.4(5.3) | |||
| Item | HWN10000I | ||

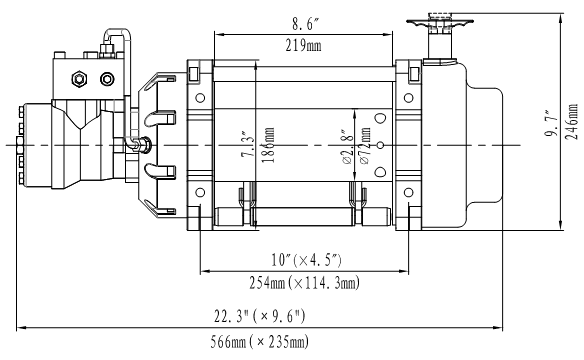

| Overall dimensions | 22.3″×9.6″×9.7″ | ||
| (L×W×H) | 566mm ×235mm×246mm | ||
| Net weight (Ibs/kg) | 117lbs /53kg |
| Gewicht | 53 kg |
|---|---|
| Afmetingen | 56,6 × 23,5 × 24,6 cm |
