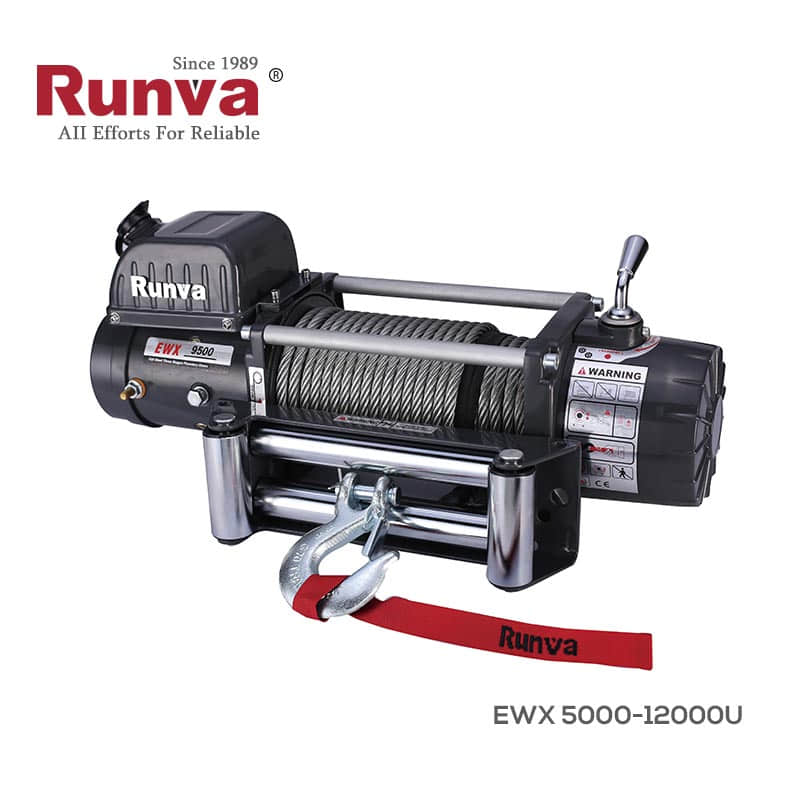

Runva Winch – EWX5000 serie

Features:

Full steel gear
Runva patent three stage planetary gear reducer
Sliding geared ring cluth
Automatic screw cone braking action
Remote control through control box and switch
Wireless remote control available

Specifications:

Rated line pull	5000 lbs (2268 kg)
Motor: permanent magnet	12V:Input: 3.4 kW / 4.5hp; Output: 1.4 kW / 1.9hp
Gear reduction ratio	280:1
Cable (Dia.× L)	Ø1/4 “×79 ‘ (Ø6.4mm×24m)
Drum size (Dia.× L)	Ø2.48 “×5.3 ” (Ø63mm×133.5 mm)
Mounting bolt pattern	6.55 “×4.5 ” (166.4mm×114.3 mm) 4-M10

Line Speed Amperes Volts First Layer					Line Pull and Rope Capacity in Layer Line Pull
Line Pull Lbs.(kg)	Line Speed ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs. (kg)	Total rope on the drum ft (m)
	12DC		12DC		1	5000(2268)	16.4(5.0)
0	12.8 (3.9)		45		2	4259(1932)	35.8(10.9)
1000(454)	11.5 (3.5)		90		3	3710(1683)	57.1(17.4)
3000(1361)	9.2 (2.8)		170		4	3286(1490)	78.9(24.0)
5000(2268)	7.2 (2.2)		280

Item	EWX5000

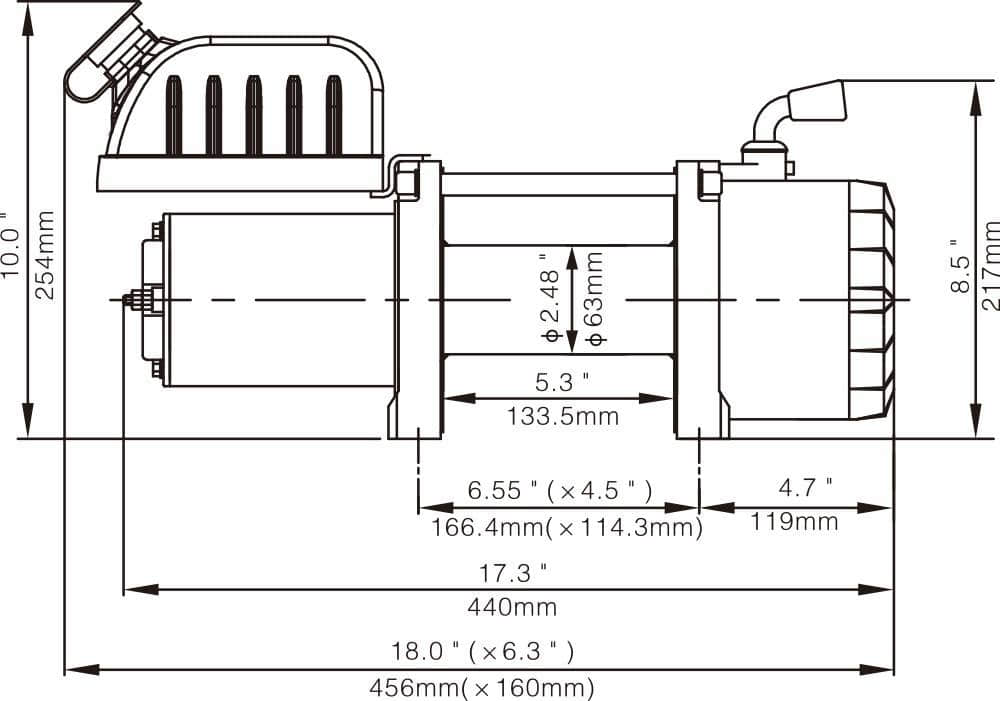

Overall dimensions	18.0″×6.3 “×10.0 “
(L×W×H)	456mm ×160mm ×254mm
Net weight (Ibs/kg)	54.5lbs / 24.7kg

Gewicht	24,7 kg
Afmetingen	45,6 × 16 × 25,4 cm
