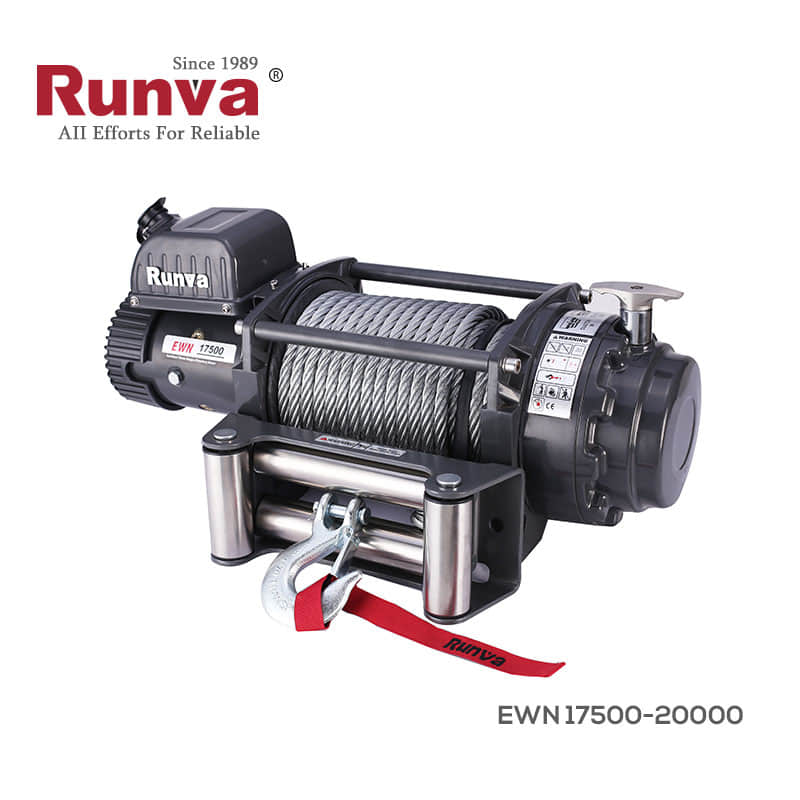

Runva Winch – EWN18000 serie

€1.090,00 incl. BTW

Product code: EWN18000UWS3 24V Categorieën: For Towtruck, Lieren, Runva Lieren Tags: 18000lbs, 24V, cable, EWN, EWN18000, kabel, lier, staal, steel, winch

Beschrijving
Extra informatie

Runva Winch – EWN18000 serie

Features:

Free spooling clutch
Automatic screw cone braking action
Series wound motor
Runva patent three stage planetary gear reducer
Sepcially designed shape for convenience of installation and good looking
Remote control through control box and switch
Wireless remote control available
DC 12v or DC 24v Power drive optional

Specifications:

Rated line pull	18000 lbs (8165 kg)
Motor: series wound	24V:Input: 6.0kW / 7.9hp;Output: 3.1 kW /4.1hp
Gear reduction ratio	430:1
Cable (Dia.× L)	Ø15/32 “×87 ‘ (Ø12mm×26.5m)
Drum size (Dia.× L)	Ø3.5 “×8. 6” (Ø89mm×219mm)
Mounting bolt pattern	10 “×4.5 ” (254mm×114.3mm) / 10 “×6.5 ” (254mm×165.1mm) 8-M12

Line Speed Amperes Volts First Layer					Line Pull and Rope Capacity in Layer Line Pull
Line Pull Ibs.(kg)	Line Speed ft/min (m/min)		Current A		Layer of cable	Rated line pull lbs. (kg)	Total rope on the drum ft (m)
		24DC		24DC	1	17500（7938）	18.0（6.0）
0		13.8（4.4）		40	2	14140（6414）	40.7（13.0）
10000（4536）		5.9（1.8）		140	3	11862（5381）	65.9（21.0）
14000（6350）		4.6（1.4）		200	4	10217（4634）	86.9（26.5）
17500（7938）		3.9（1.2）		250

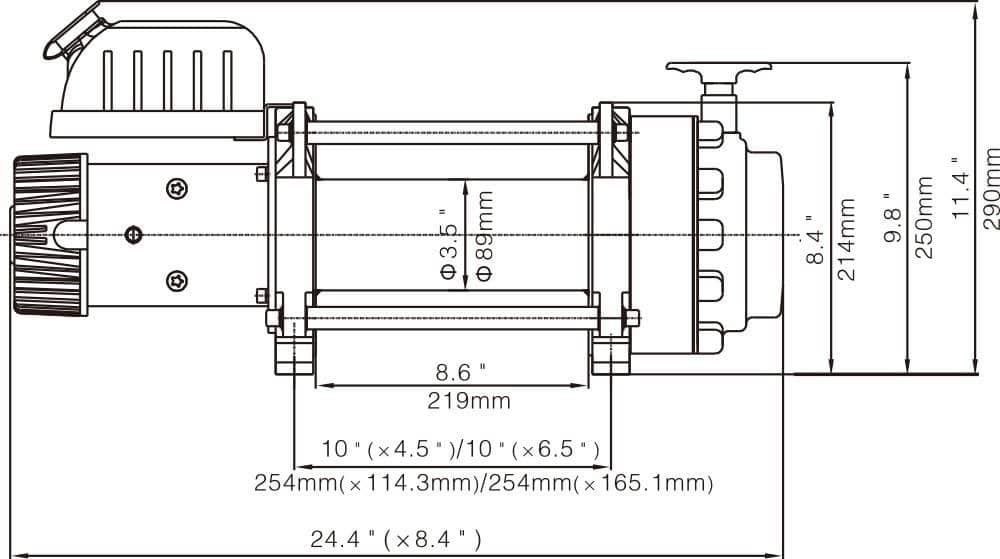

Item	EWN18000
Overall dimensions	24.4″×8.4″×11.4″
(L×W×H)	620mm ×214mm ×290mm
Net weight (Ibs/kg)	147.7lbs / 67.0kg

Gewicht	67 kg
Afmetingen	62 × 21,4 × 29 cm
