Runva Winch – EWB9500-Q 12V Synthetic Rope

Every off-road enthusiast, 4×4 enthusiast, has probably found himself at least once in a situation where a winch would come in handy. If it is good, it can save a lot of effort and work, especially in extreme conditions.

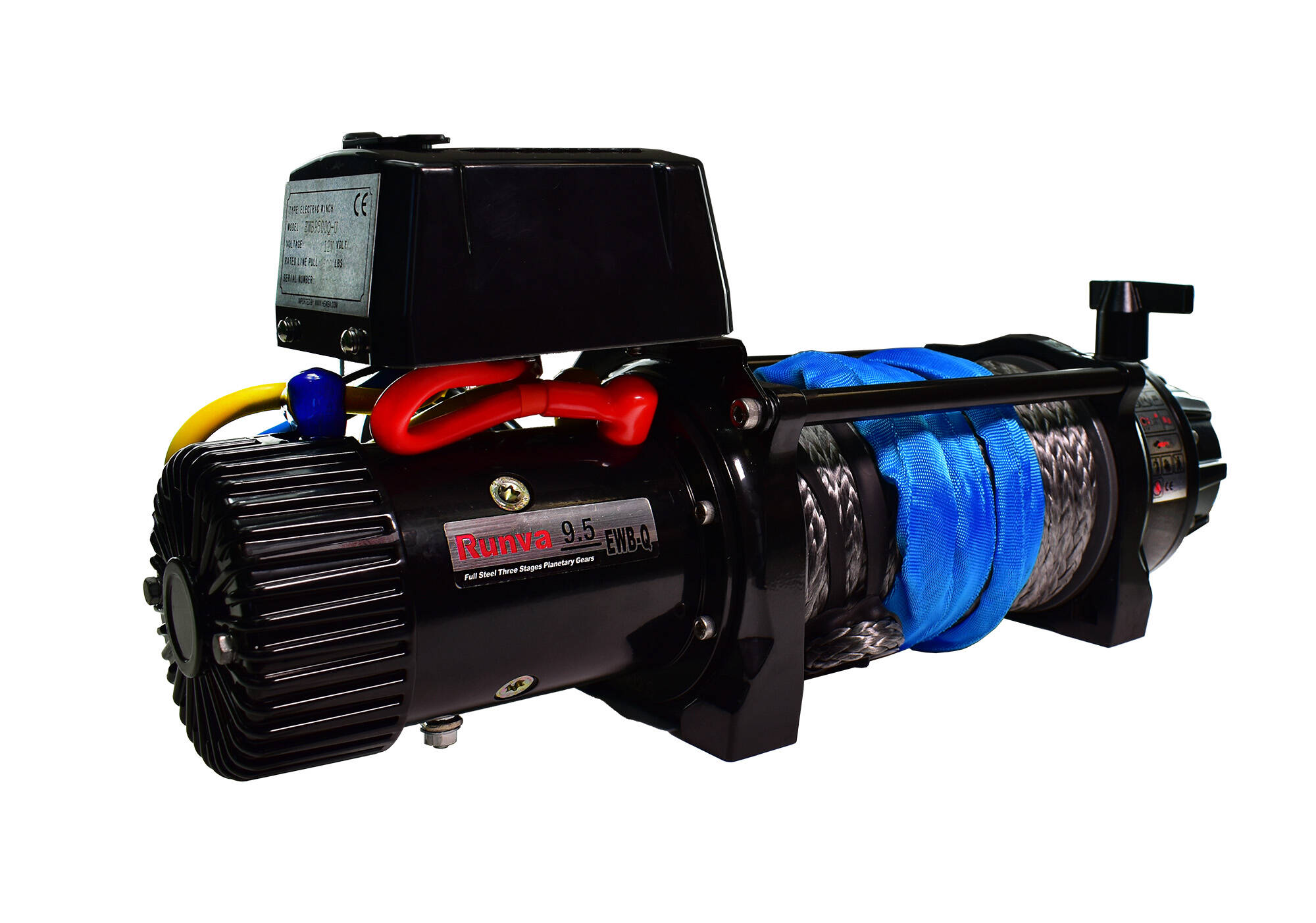

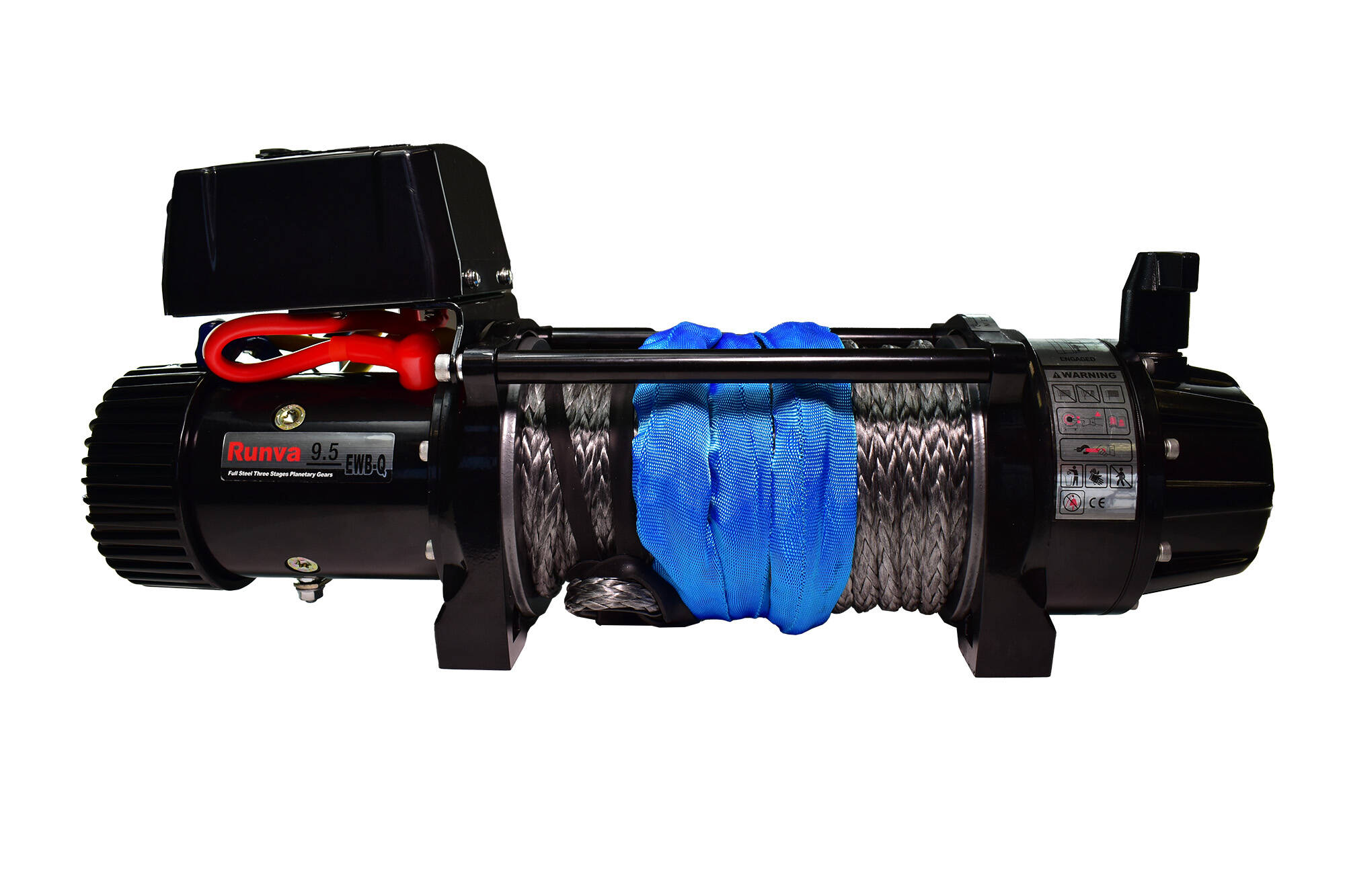

The RUNVA EWB9500-Q electric winch is designed for heavy duty work in off-road and utility vehicles. Very long service life and high resistance to harsh working conditions are its most important features.

The winch has a brake built into the gear, which reduces the heating of the winch during operation and extends its service life.

Thanks to the innovative gear, the winch has a ratio of 108:1. Thanks to this, the winch, when fully loaded, reels in 4.5 meters of rope per minute.

CE declaration of conformity.

TECHNICAL SPECIFICATIONS:
Pulling capacity – 4309 kg (9500lbs)
Engine – 12V:input: 5.4kW / 7.2hp; output: 2.7kW / 3.6hp
Gear ratio : 108:1
Rope diameter -Ø10mm
Rope length – 25.0m

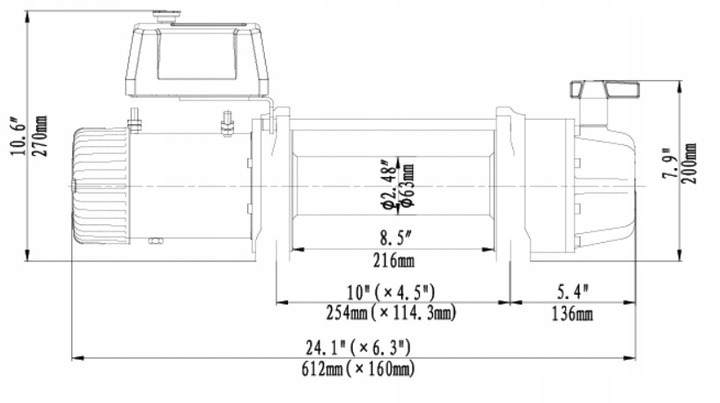

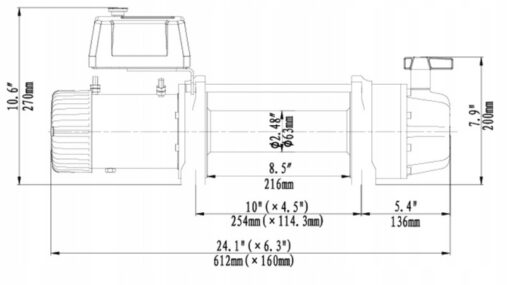

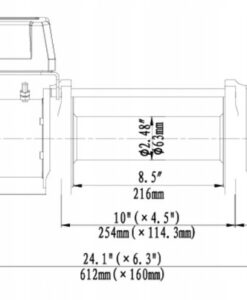

Drum diameter -Ø63mm×216mm
Dimensions (L x W x H) – 612mm × 160mm × 270mm
Mounting bolt spacing – 254mm x 114.3mm, 4-M10
Weight – 35 kg

The set includes:
12V electric winch,

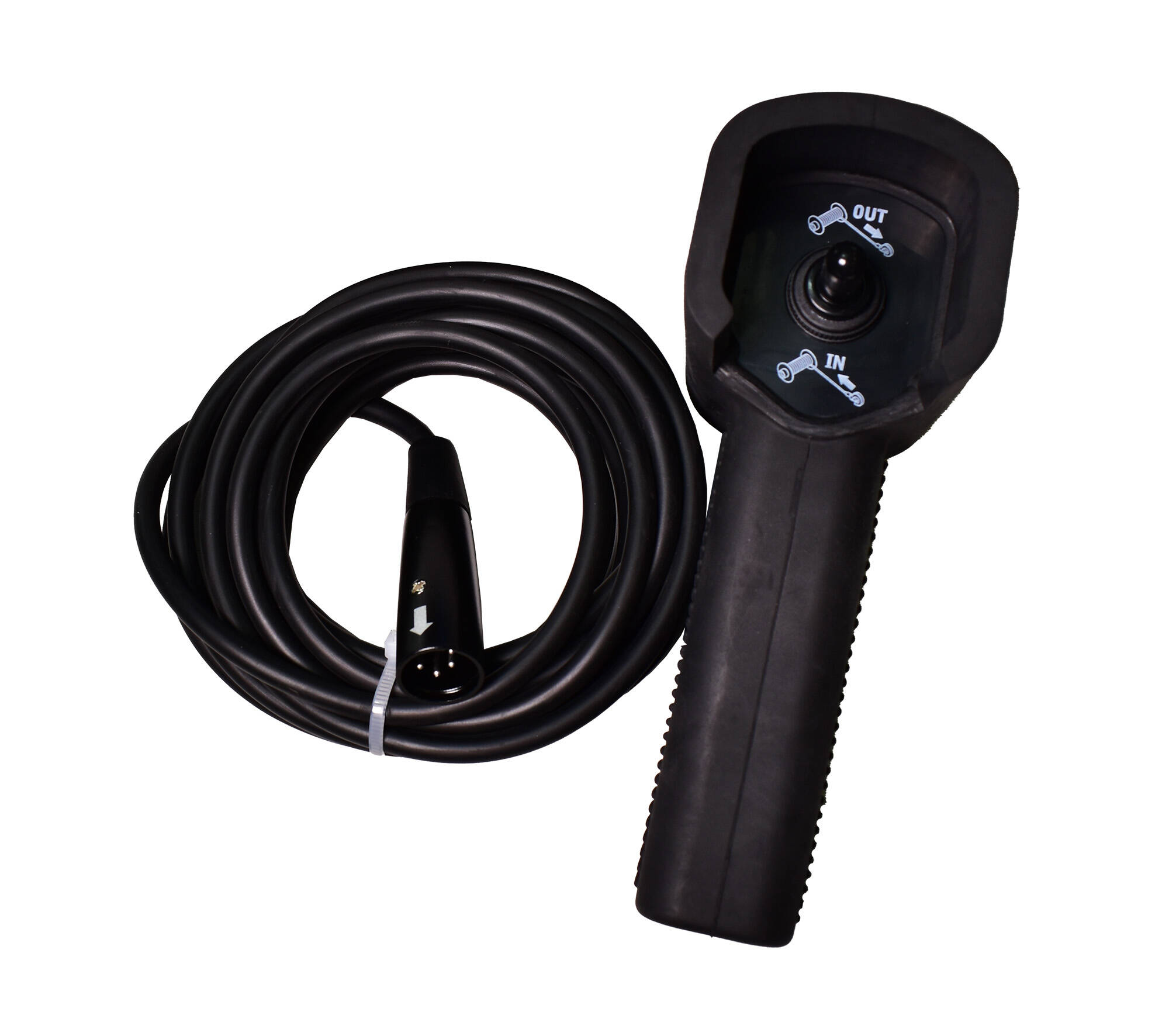

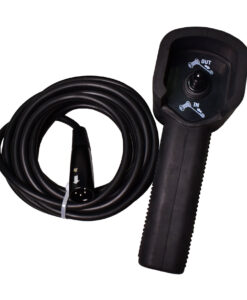

wired remote control,

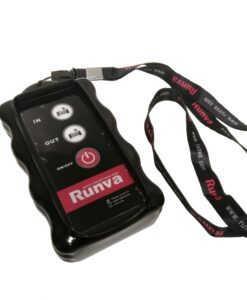

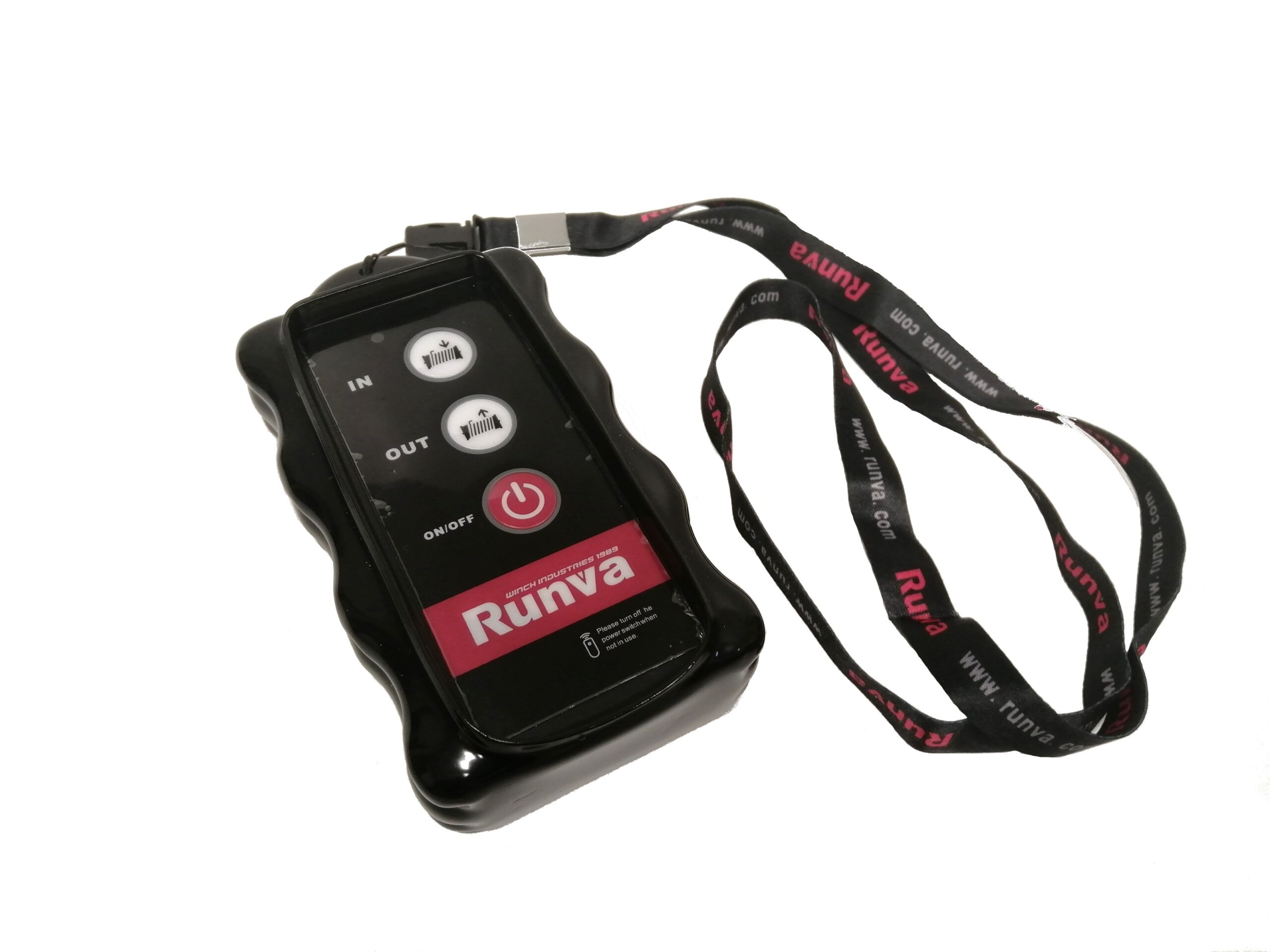

wireless remote control in rubber casing,

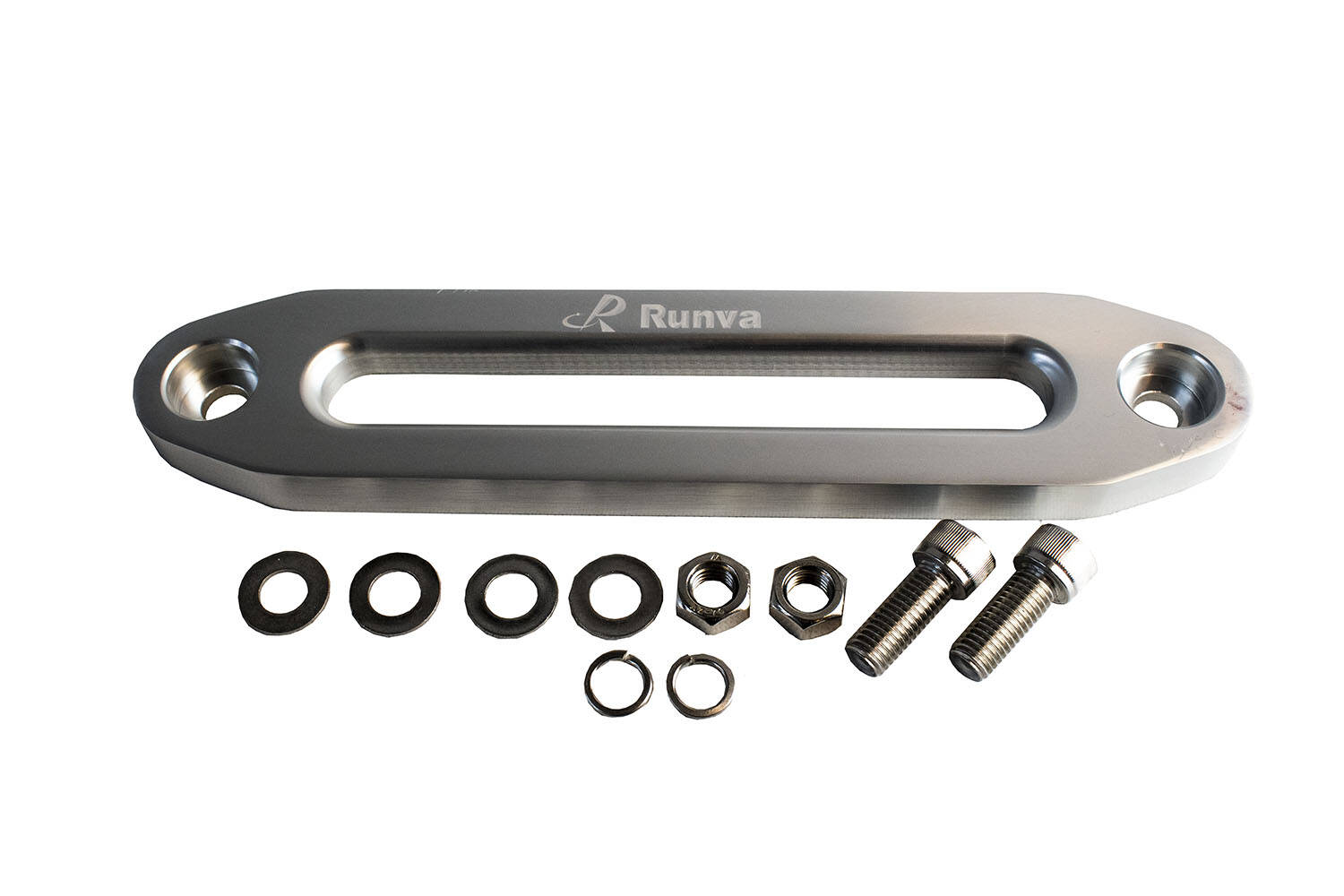

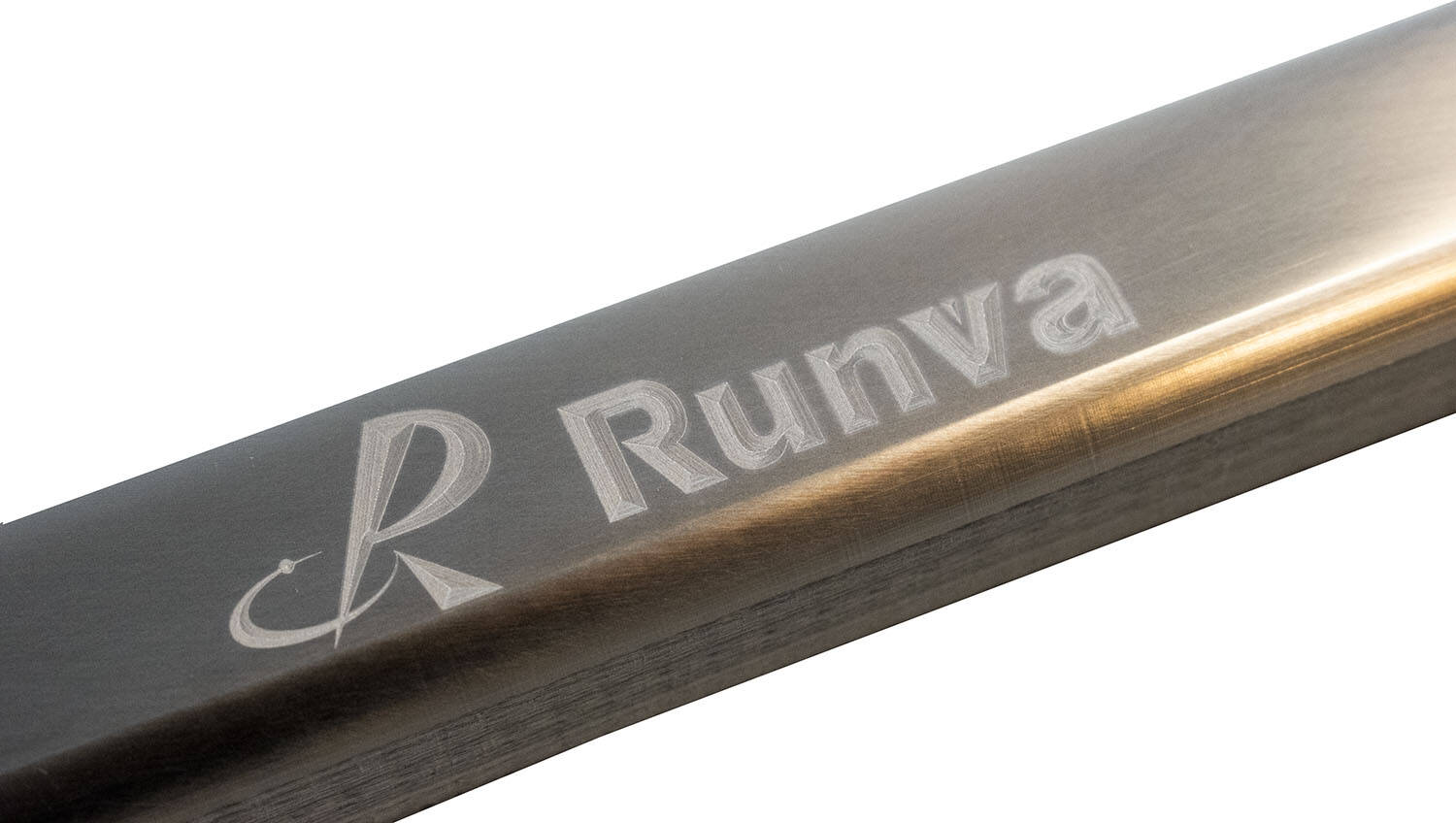

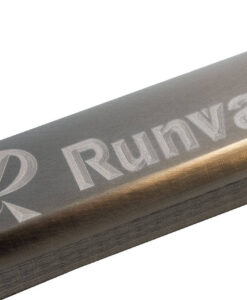

aluminum sliding guide,

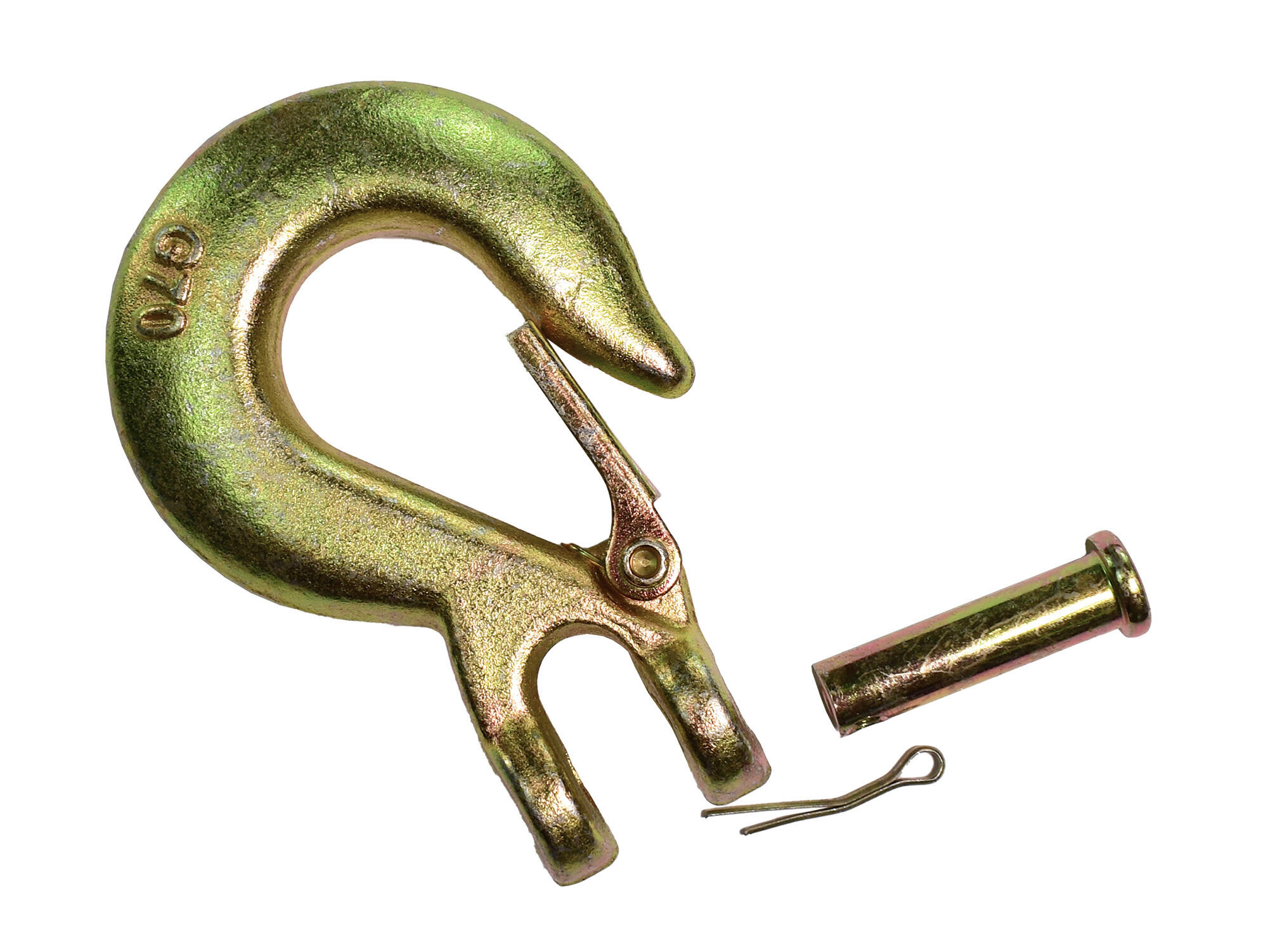

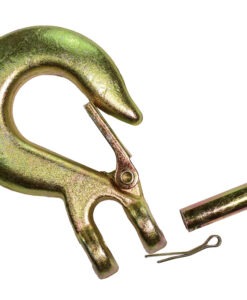

hook, red safety tape,
set of mounting screws,

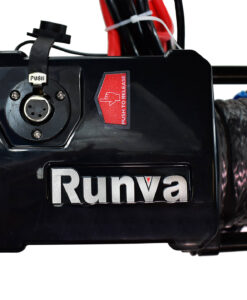

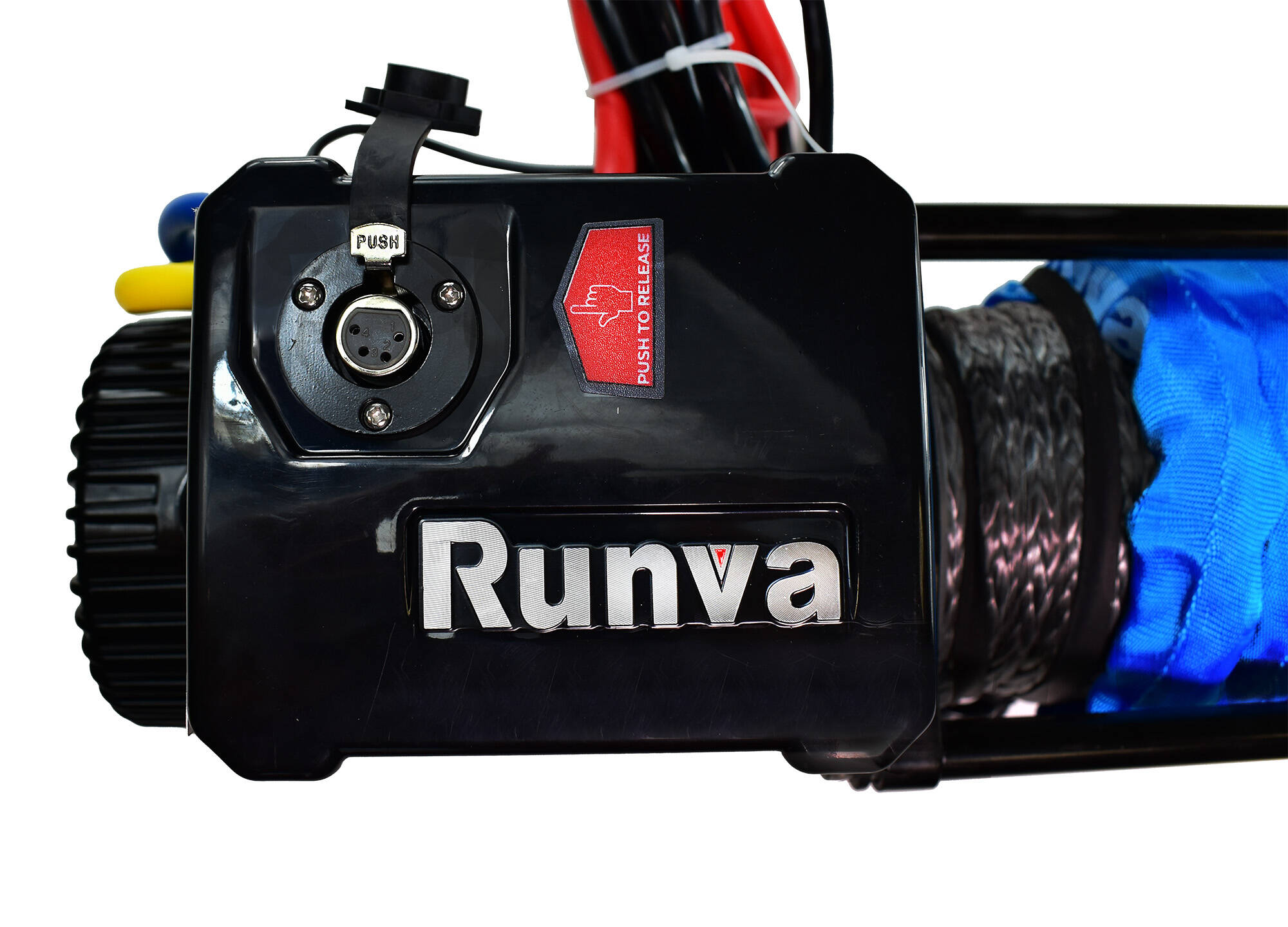

control box mounted above the engine with connecting cables.
