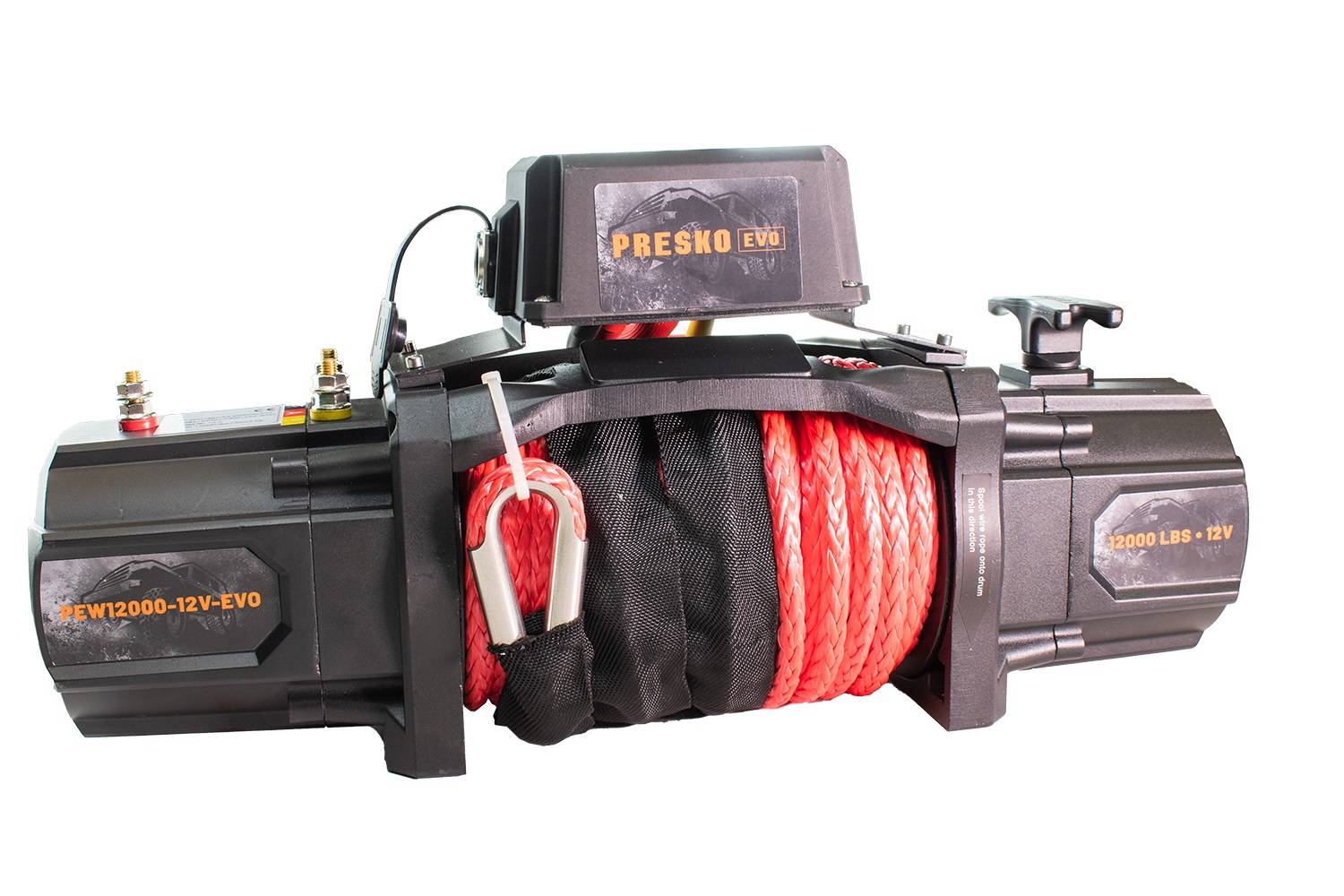

Presko Winch – PEW12000 12V EVO Synthetic Rope

Presko Winch Evo 12000 lbs 5.4 t electric winch with synthetic rope

The Presko Evo electric winch is an improved version of the basic Pew 12000 model.
The characteristic feature is the changed design of the winch. The winch is distinguished by the use of a special cooling system for the electric motor.

Technical Specifications:
Pulling capacity: 12,000 lbs (5,443 kg),
Engine: 12V, Input 6.8 HP,
Gear ratio: 235:1,
Rope diameter: Ø 10 mm,
Rope length: 25m,
Dimensions: (length x width x height): 564 mm x 160 mm x 259 mm,
Mounting bolt spacing: 254mm x 114.3mm, 4-M10,
Weight 27 kg,

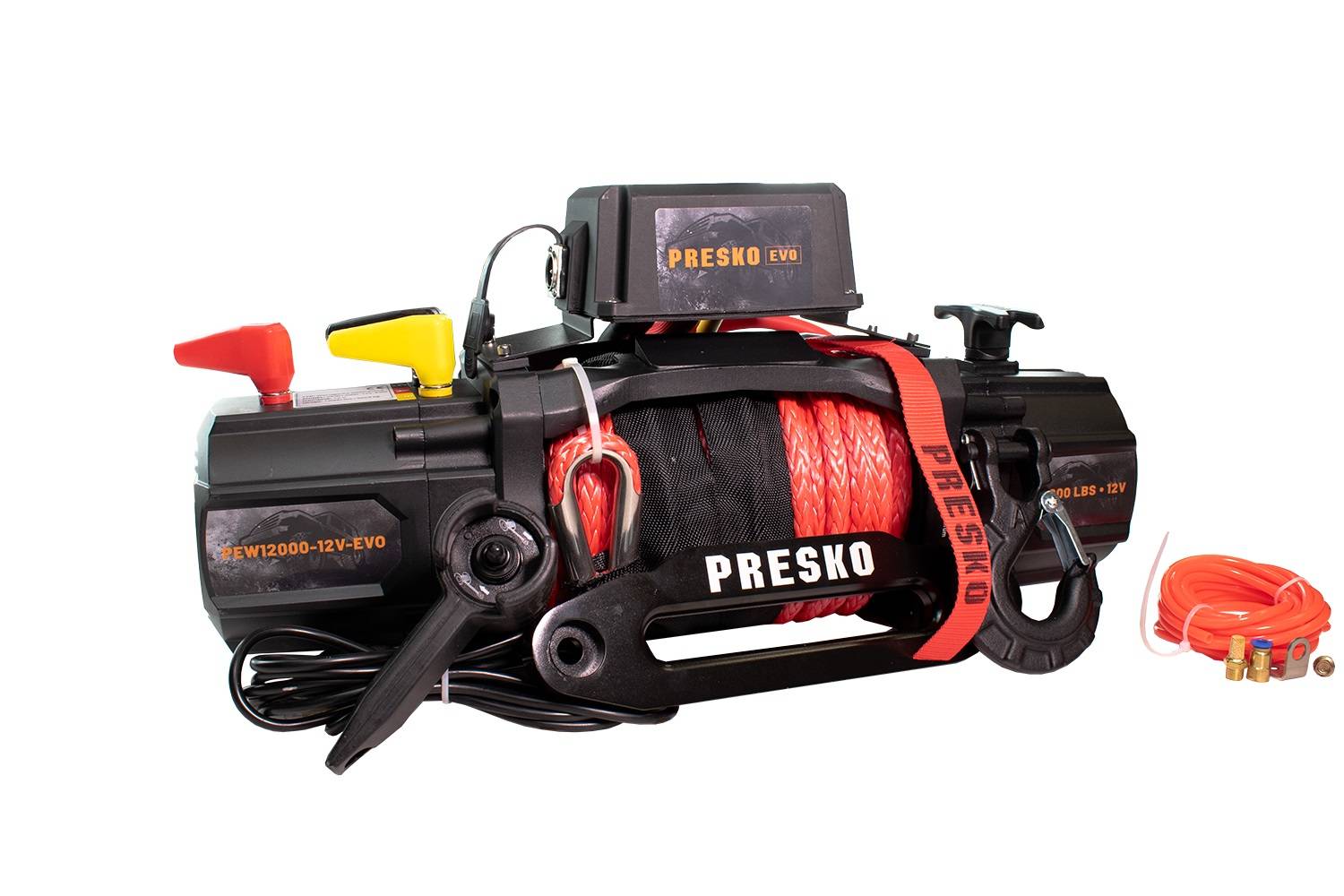

The set includes:
aluminum synthetic rope guide
control box, placed above the winch drum, together with the connecting cables,
a synthetic rope with a thimble at the end, wound onto a winch,

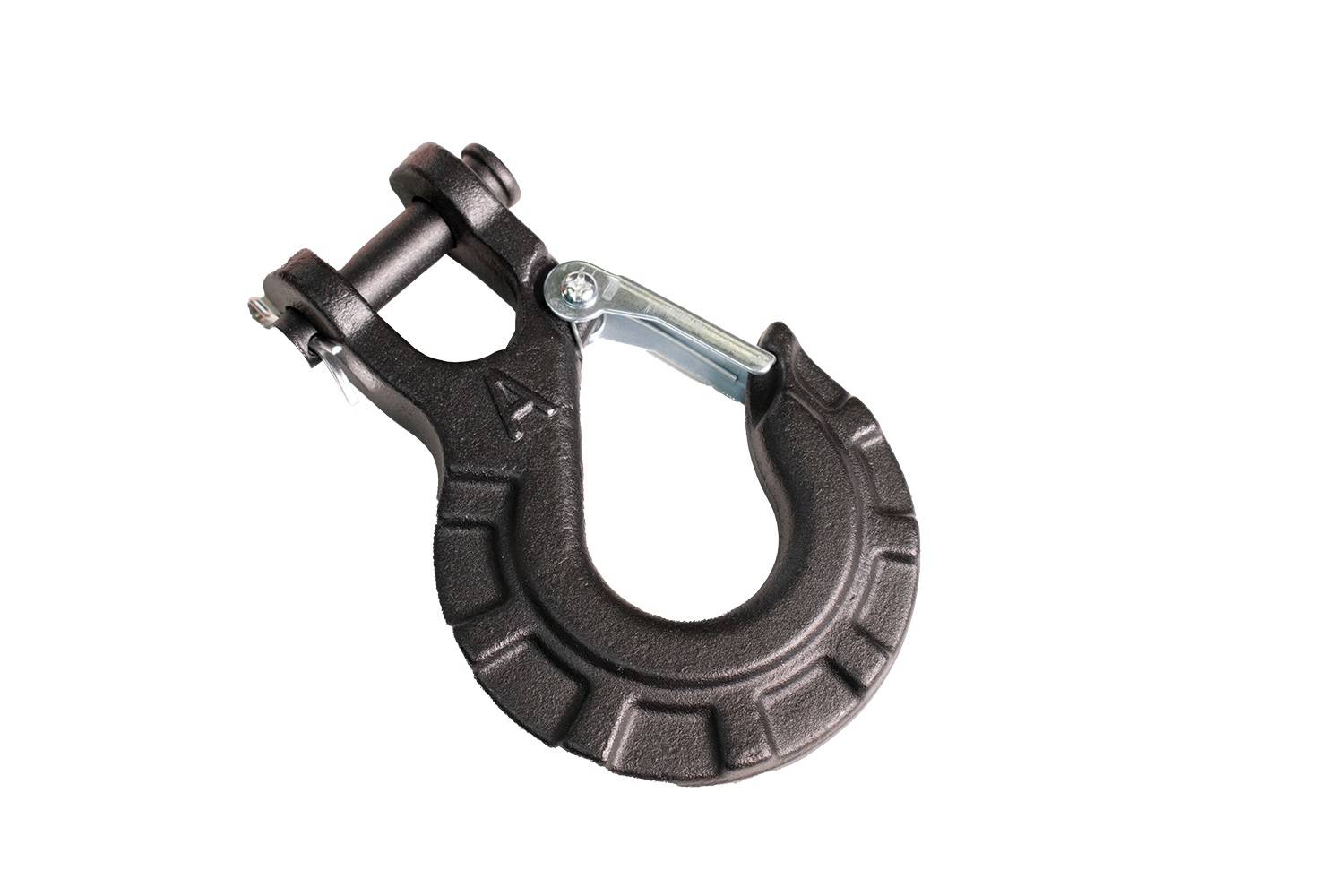

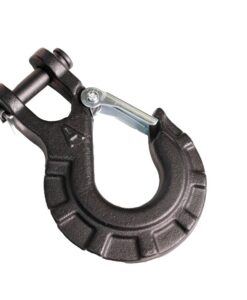

durable hook,
case,
wired and wireless control,
mounting kit for engine cooling system,
mounting screws.

Sliding rope guide
This is essential equipment for every vehicle on which a winch is mounted. Its use allows you to control the even positioning of the rope on the drum during the rope winding operation. Additionally, it has a protective function for the rope – it protects against damage that could occur when the rope rubs against steel, stationary elements (e.g. a window in the mounting plate).

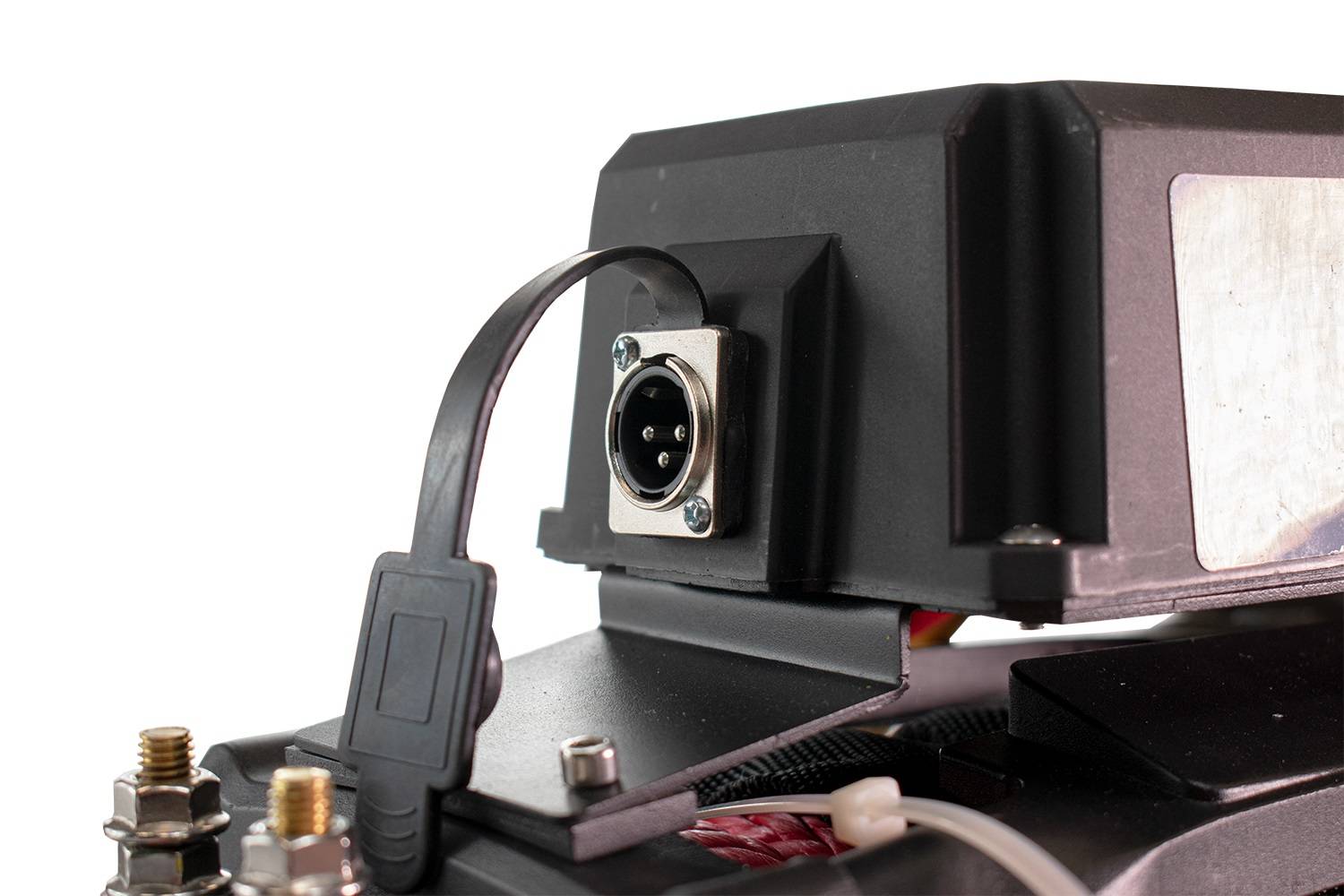

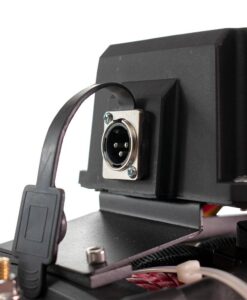

Wired control
The optimal shape of the remote control and the appropriate length of the cable ensure comfort of use for the winch operator.

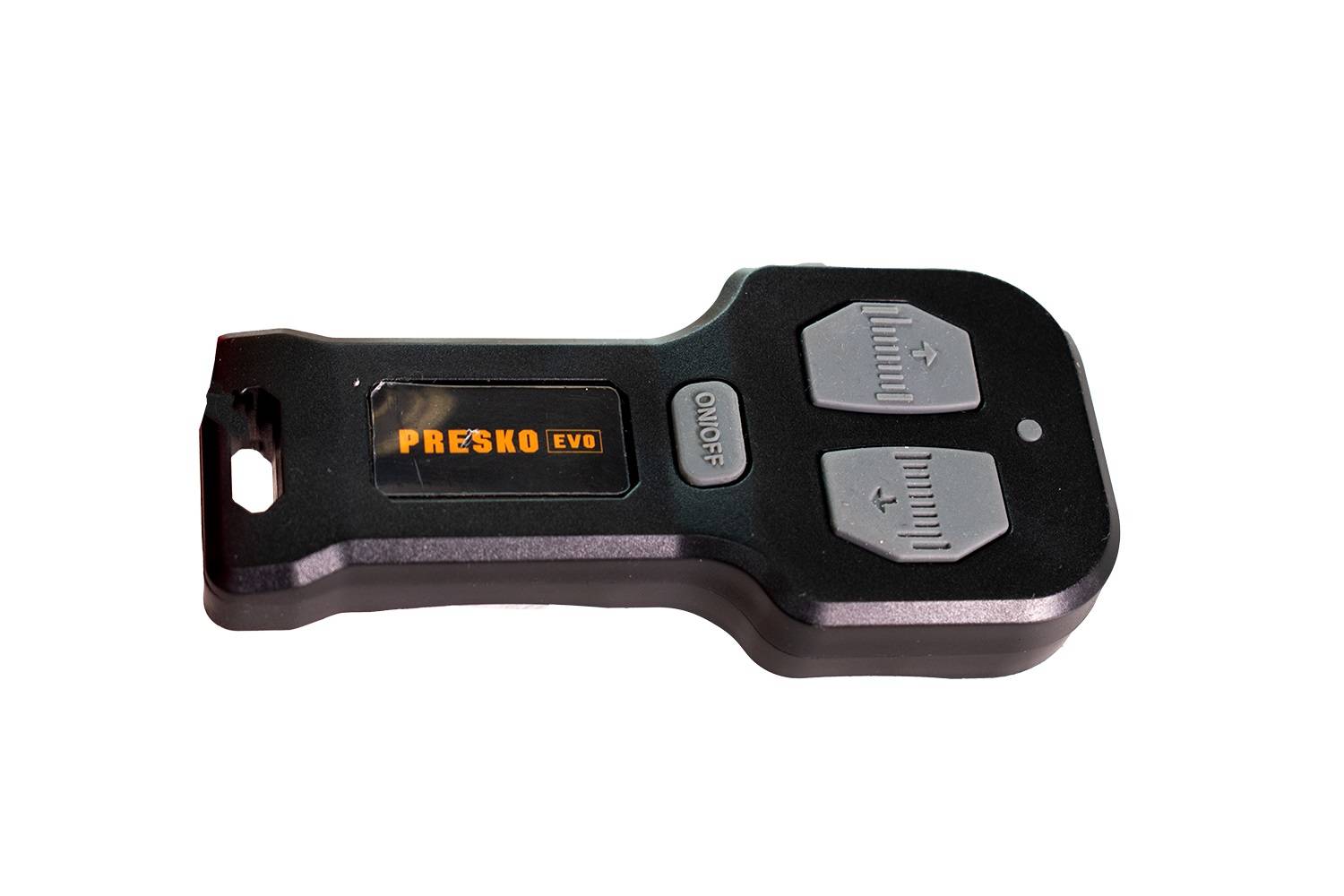

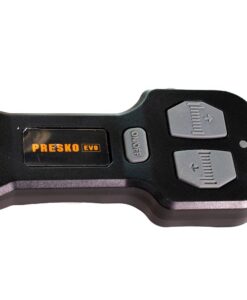

Wireless control
For increased safety and even greater comfort of work, the winch is equipped with wireless control as standard.

Motor cooling system
The winch is equipped with an electric motor cooling system. At the back of the electric motor, a breather is mounted to which an air hose with an air filter at the end is connected. The air hose should be connected to the valve, and the end with the filter should be placed in such a place as to limit the access of water, dust, etc. To connect the air hose, press the blue ring of the breather and insert the hose, then release the blue ring, which will return to the original position and tighten the hose. To disconnect the air hose, press the blue ring of the breather and pull the hose. The engine cooling system allows for the quick removal of heat accumulated in the engine compartment. This can shorten the cooling time of the winch engine, which increases the frequency and efficiency of its use. In the long term, it improves the efficiency of the engine.
