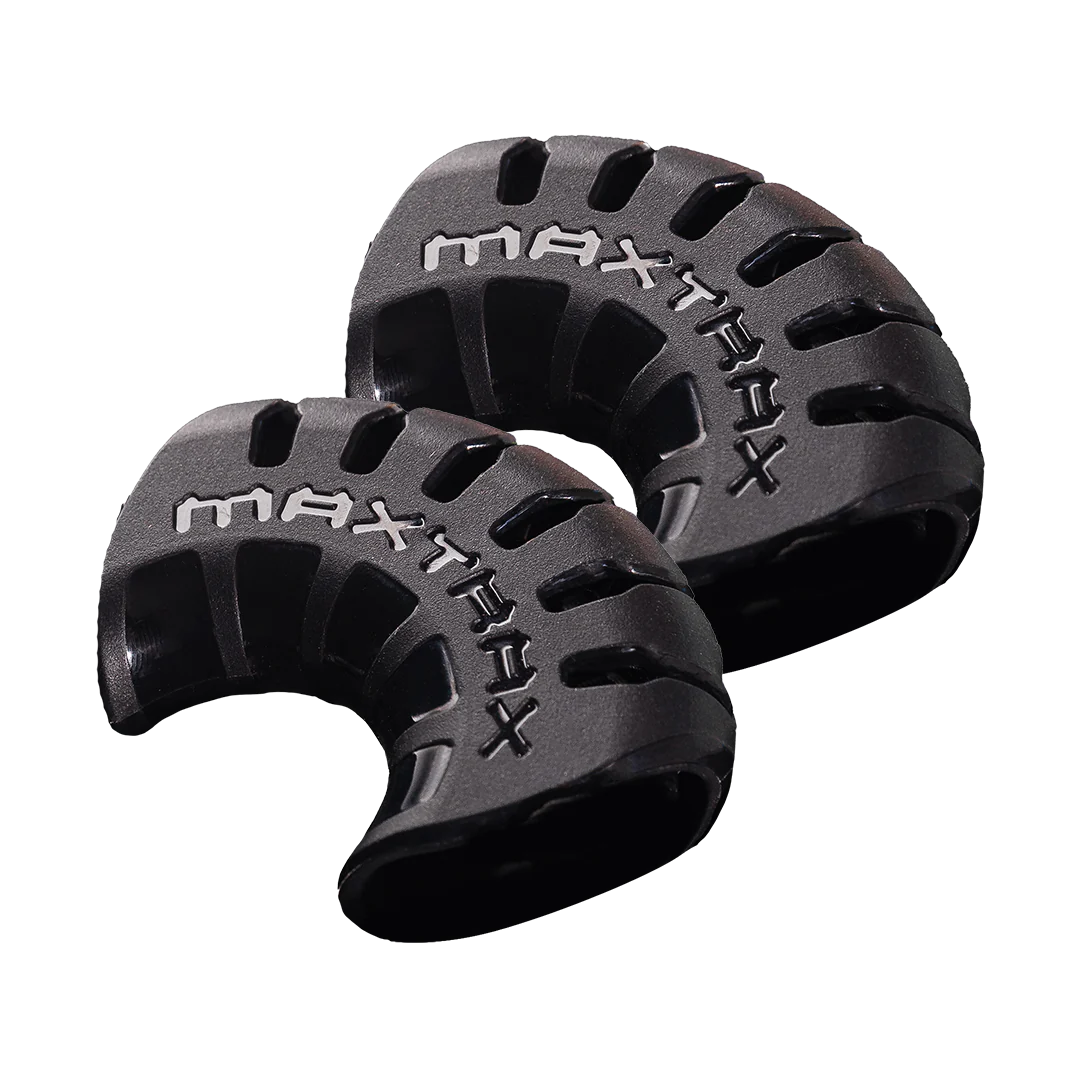

MAXTRAX SHACKLE SHIELD 4 PACK
*MAXTRAX Fuse Shackle not included.

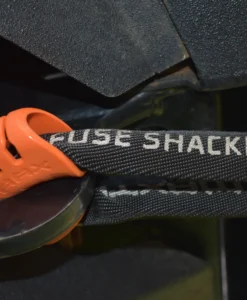

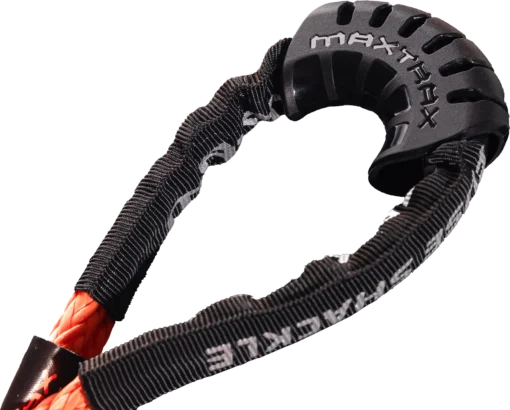

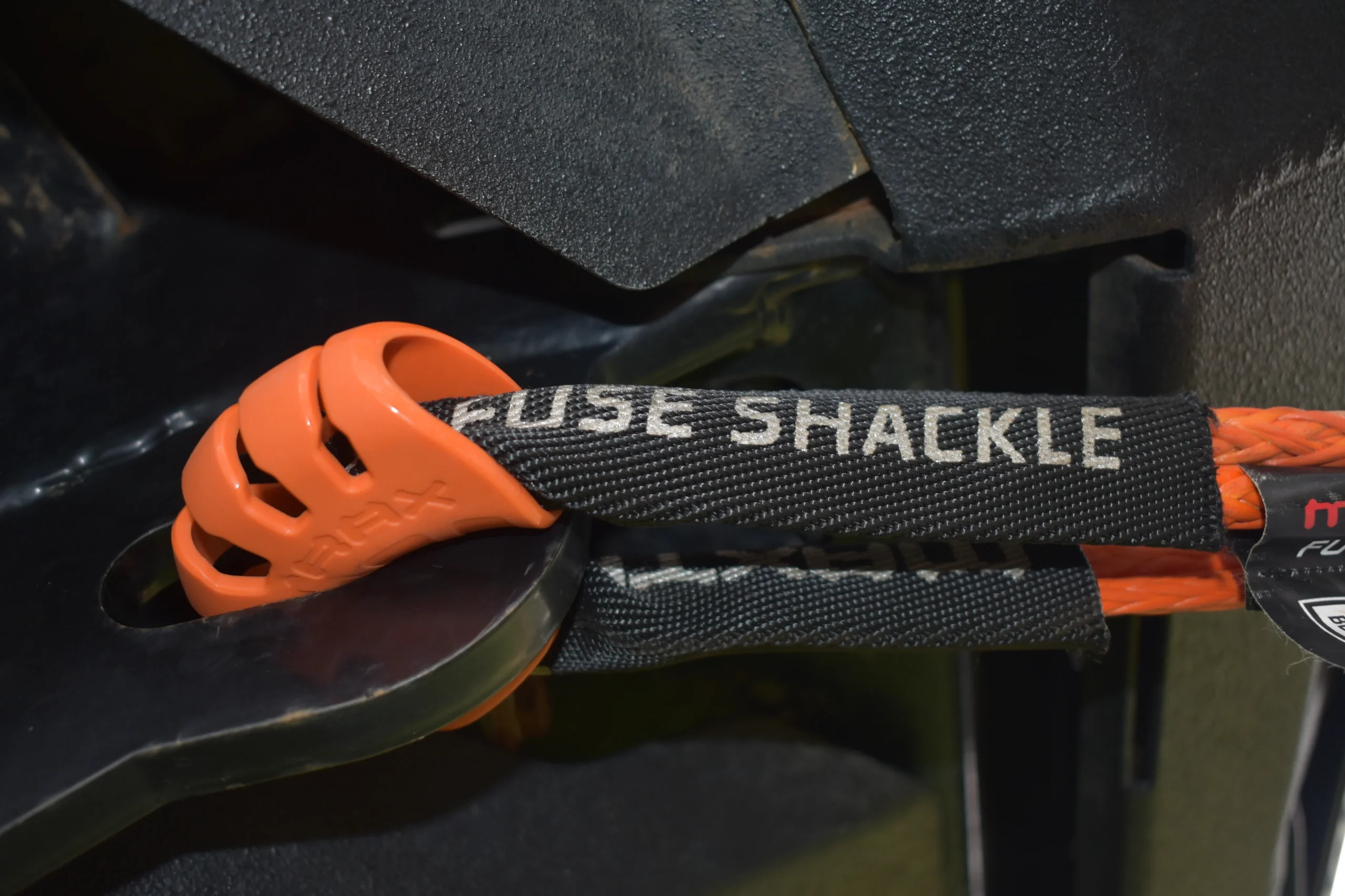

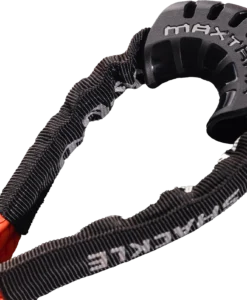

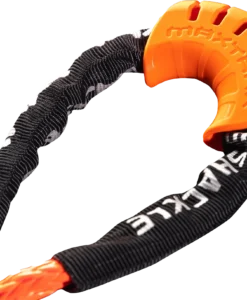

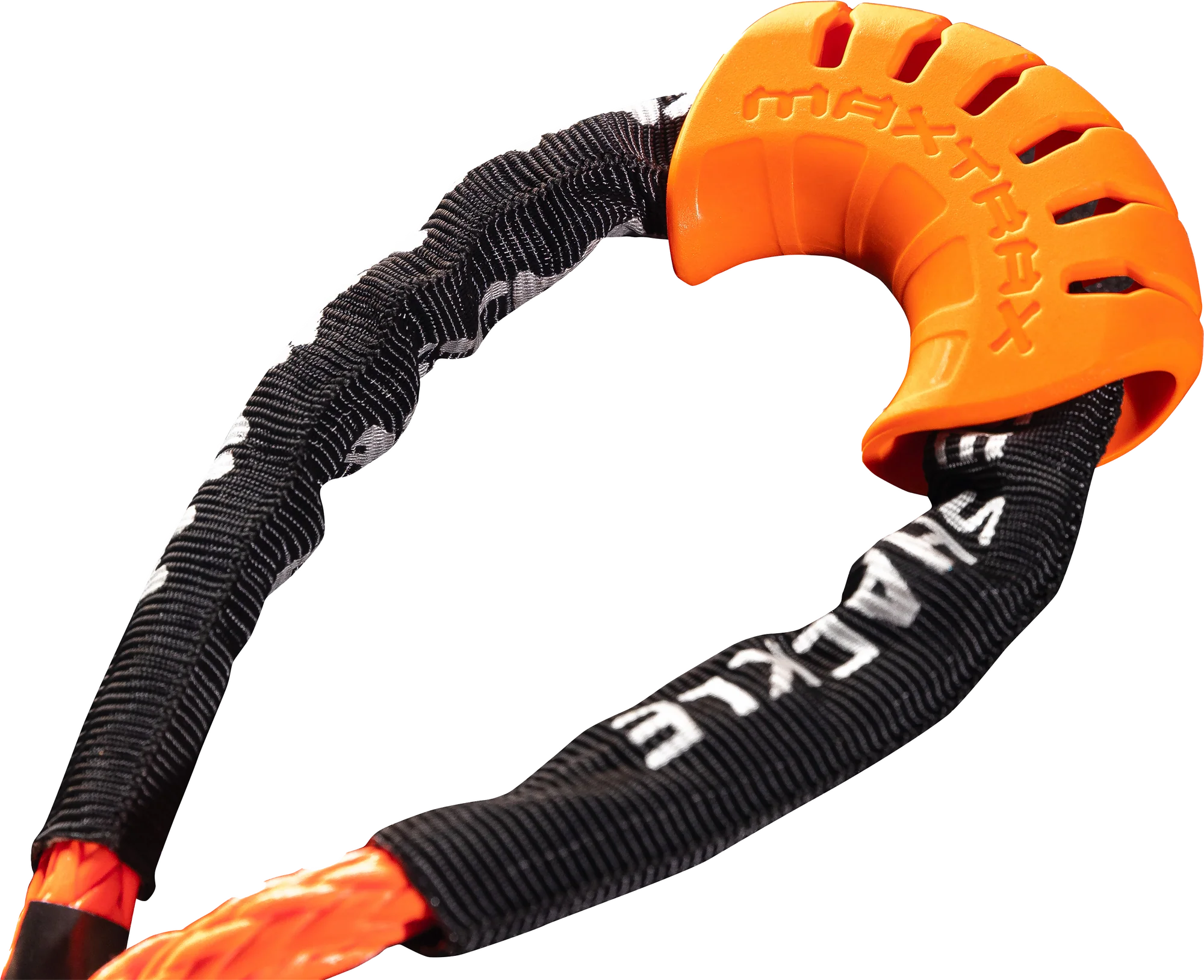

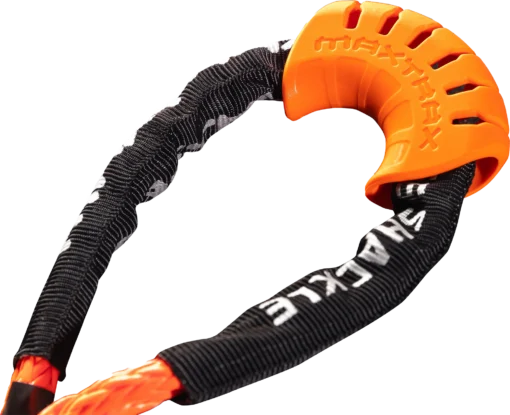

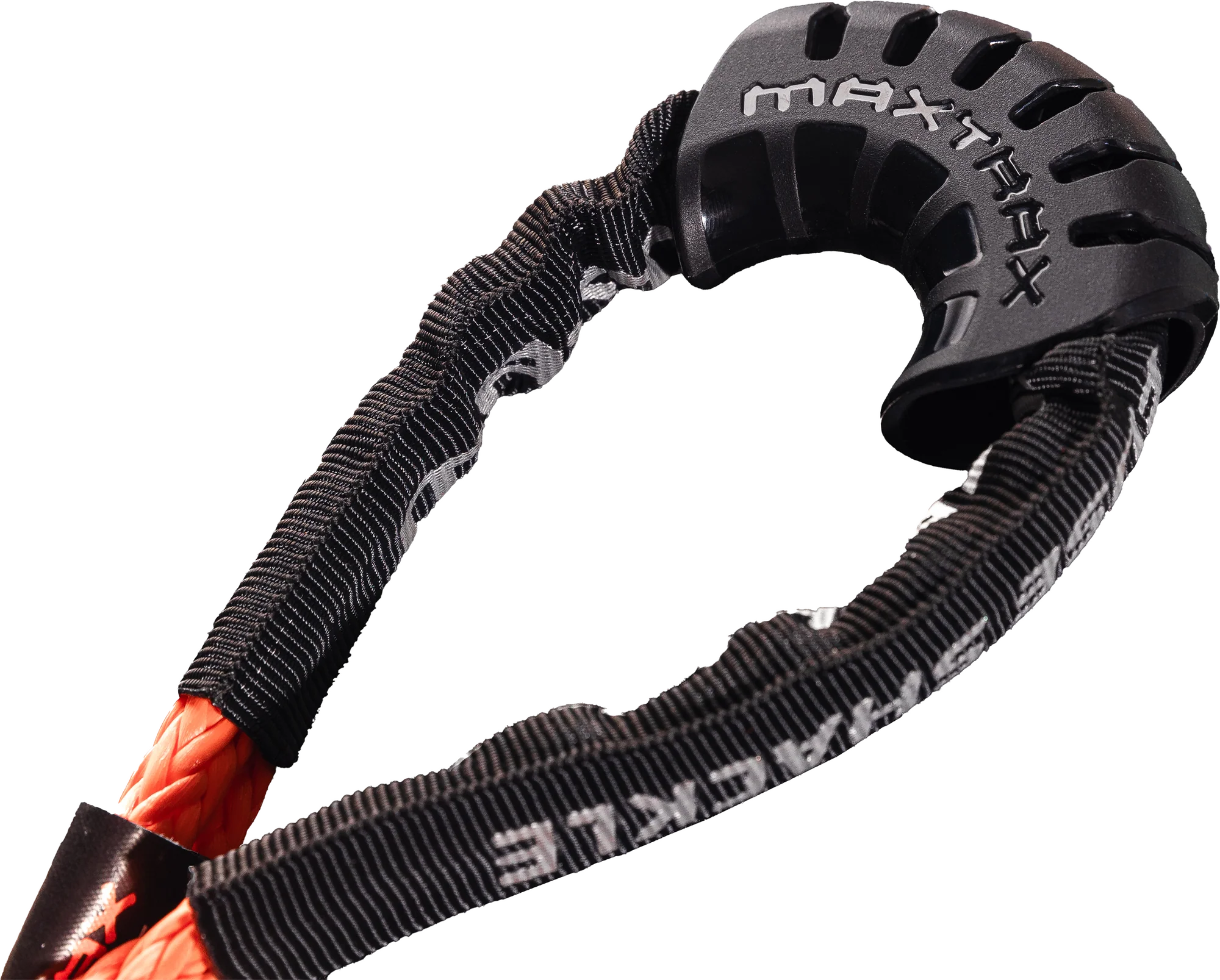

The MAXTRAX Shackle Shield is designed to act as a protective sheath that slides over the MAXTRAX Core and Fuse shackles to offer extra protection from abrasions and sharp-edged recovery points, prolonging soft shackle life and enhancing safety.
Current Independent Recovery Points and Recovery points incorporated into bullbars have frequently been manufactured with a 90-degree edge which is not recommended for soft shackle use as can damage rope fibres during recoveries.
MAXTRAX Shackle Shield is compatible withany soft shackle brand on the market & can be retro fitted to soft shackle ropes with a diameter up to 14mm (not including woven cover sheaths).
The MAXTRAX Shackle Shield removes the need to rely on using metal bow shackles in many vehicle recovery situations, making for a lighter, metal free vehicle recovery solution. Manufactured using a thermoplastic polyurethane designed to be flexible while maintaining strength to protect the fibres of the soft shackle.
Using the unique “U” shaped design the MAXTRAX Shackle Shield is developed to reduce tight radius contraction under load, protecting soft shackle rope fibres & potentially extending the soft shackle lifespan.

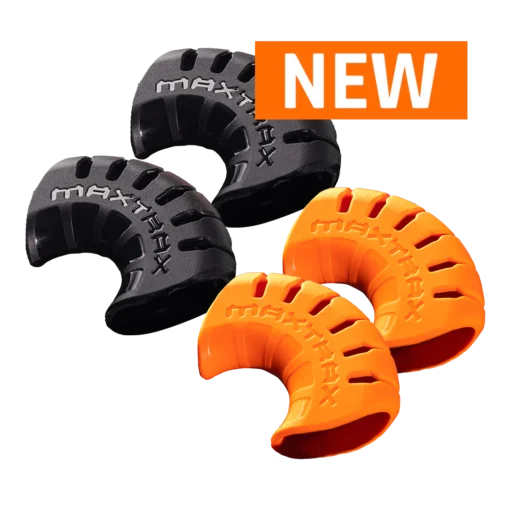

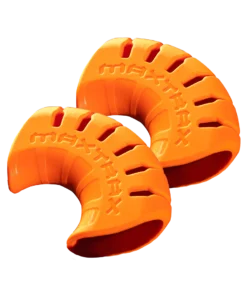

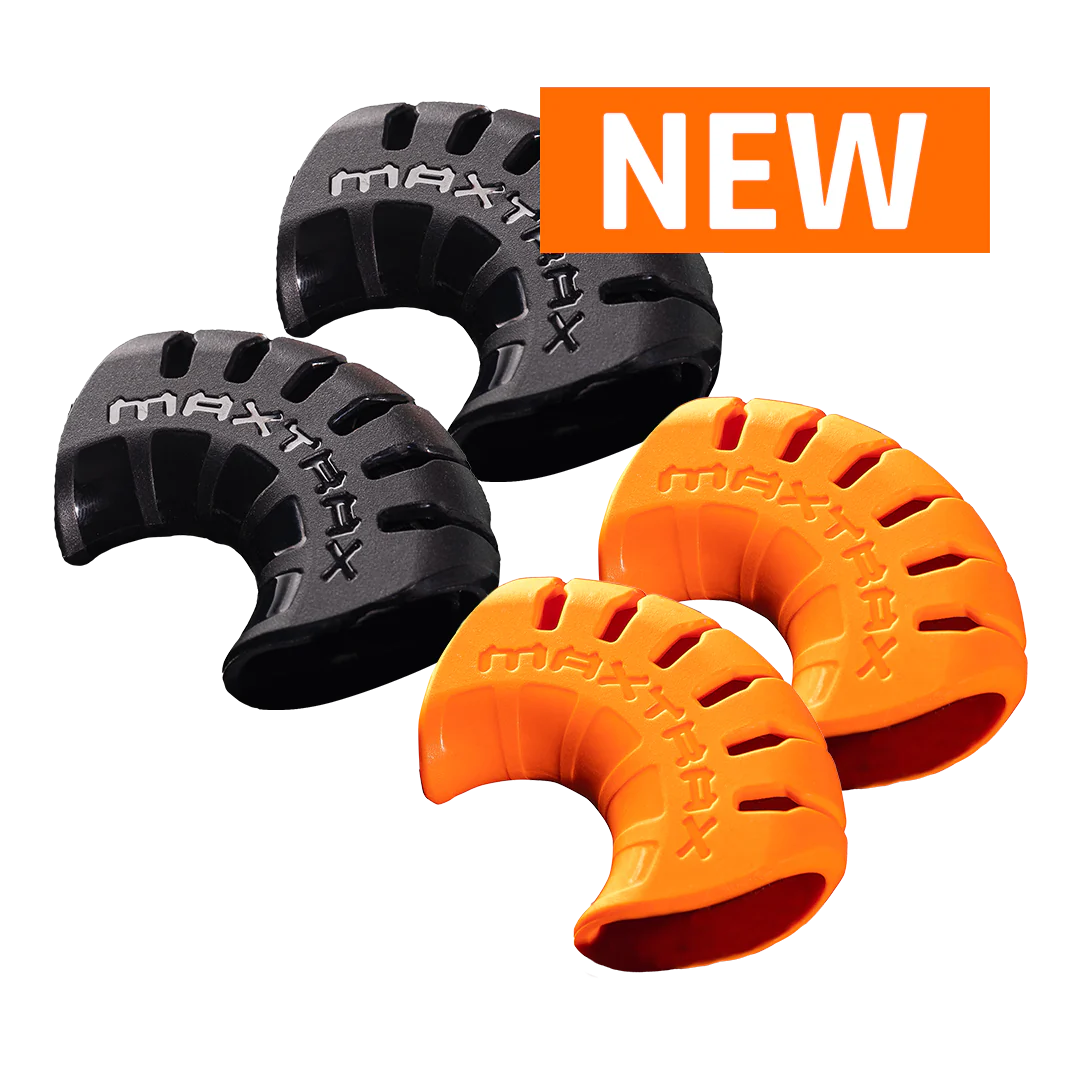

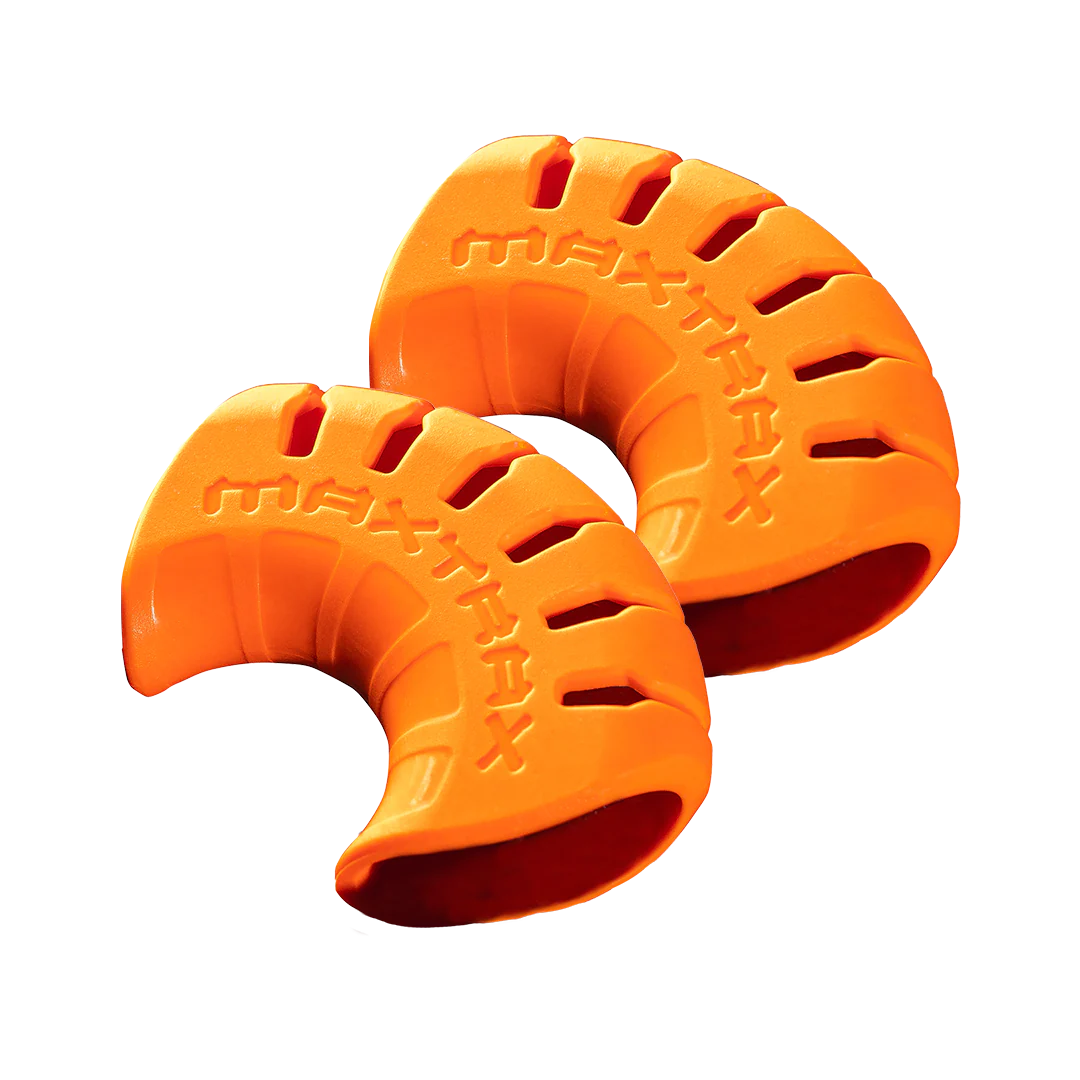

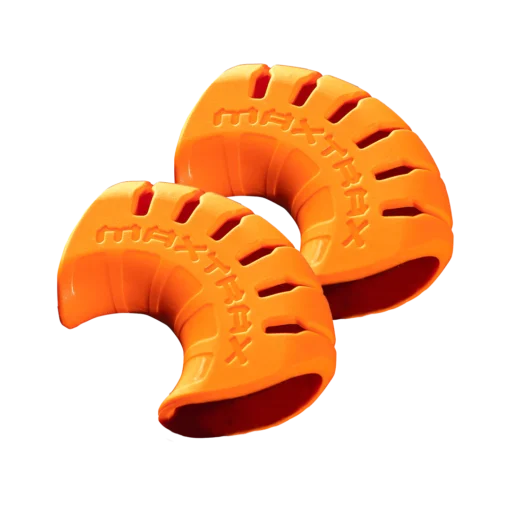

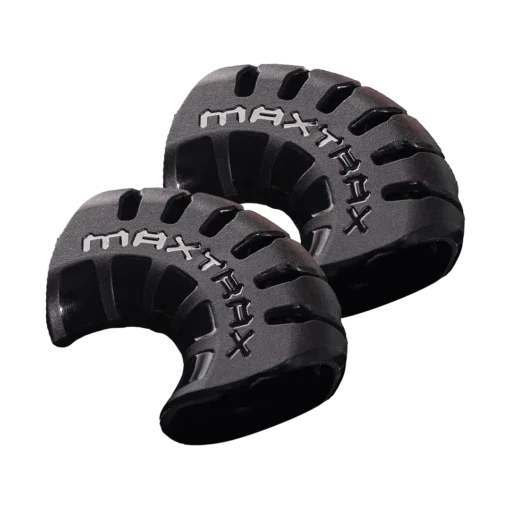

The MAXTRAX Shackle Shield is sold as a Quad pack of 2x Safety Orange and 2x Black Shackle Shields
Adding the MAXTRAX Shackle Shield to the MAXTRAX Recovery System range continues to support the MAXTRAX ethos around safety while developing simple, easy to use products complementing our current vehicle recovery systems.
Size:
80mm L, 42mm W, 22mm H
![](https://cdn.shopify.com/s/files/1/0562/0390/3043/files/ShackleShield_IMG_480x480.png?v=1712030978)
Compatibility:
MAXTRAX Shackle Shield is compatible with most aftermarket Rated Vehicle Recovery points with a 40mm + diameter circular aperture (opening) pic Figure1 or elongated design aperture no less than 22mmH x 42mmL pic Figure 2.
Figure 1:
![](https://cdn.shopify.com/s/files/1/0562/0390/3043/files/image015_2_480x480.png?v=1712018826)
![](https://cdn.shopify.com/s/files/1/0562/0390/3043/files/image019_480x480.png?v=1712018827)
The MAXTRAX Shackle Shield is compatible with many popular aftermarket brands including but not limited to:
Roadsafe
Ocam
TJM
ARB
Ironman
MCC4x4
KAON
Superior Engineering
ATI
Rockarmor
