Lazer Lights – Isuzu D-Max (2017+) Lower Grille Mounting Kit

Name: Lazer Lights - Isuzu D-Max (2017+) Lower Grille Mounting Kit
SKU: 68279
Availability: BackOrder

€649,95 – €879,95

Soort

Product code: N/B Categorieën: Lazer Integration Kits, Lazer Lights, Lazer ST/T Evolution, Lazer Triple-R, Verlichting Tags: 2017, d-max, grille, integration, Isuzu, kit, Lazer, lower

Lazer Lights – Isuzu D-Max (2017+) Lower Grille Mounting Kit

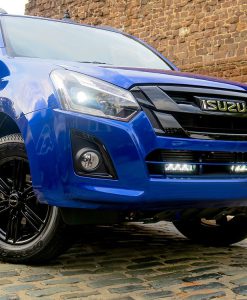

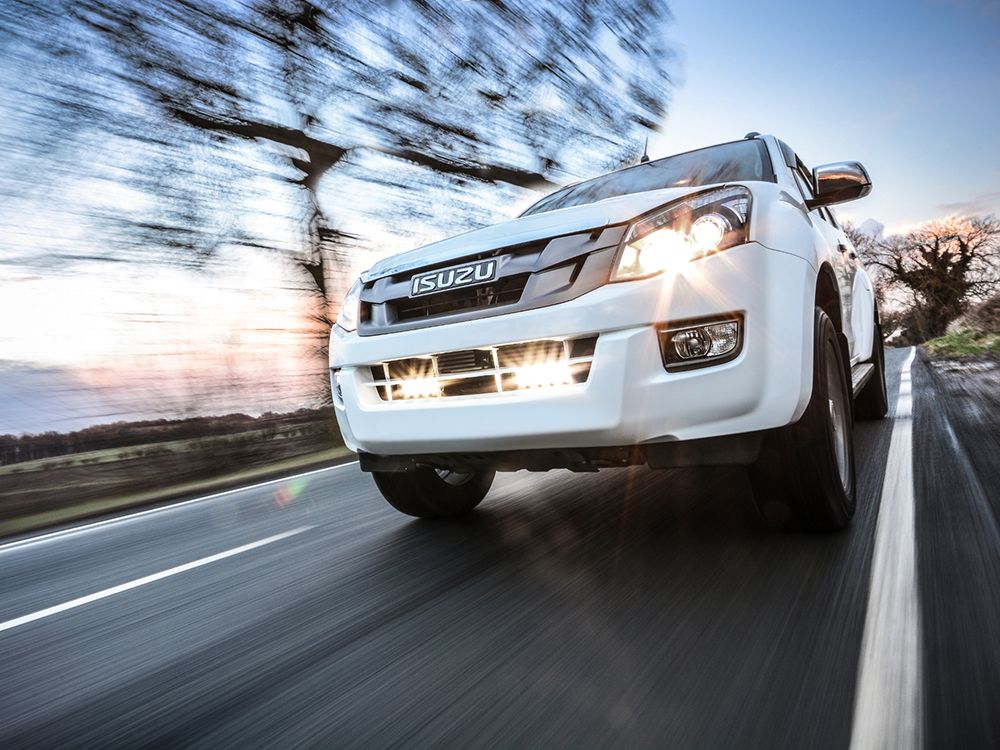

If looking for a discreet yet powerful auxiliary high beam driving light install for your D-Max (model year 2017+), then look no further than a pair of ST4 Evolution, or Triple-R 750 high-performance spotlights from Lazer Lamps. The lights are secured to the vehicles bumper beam bar, behind the lower grille, providing for a fully road legal installation that will leave you finding excuses to go out at night!

Optimised for the ST4 Evolution, or range of Triple-R 750 high performance spotlights, the lights mount in pairs directly on the bumper beam bar, for an installation that gets noticed when you need it most – at night. Vehicle wiring kits are also available allowing for connecting your lights either direct to your standard high beams, and/or operated via a separate switch on your dashboard.

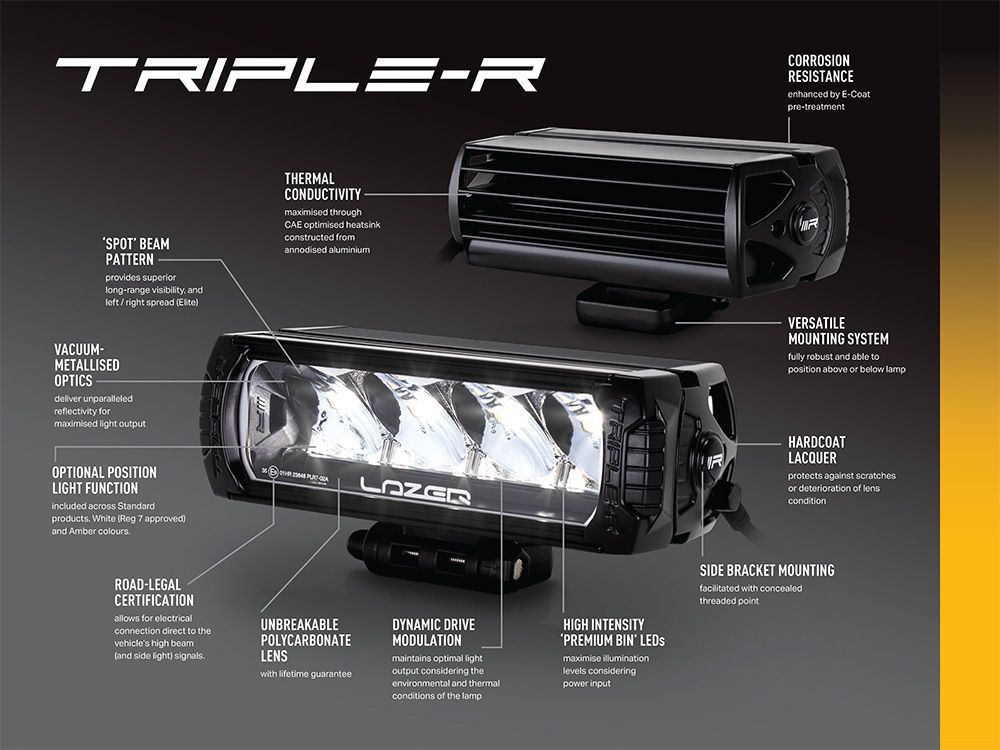

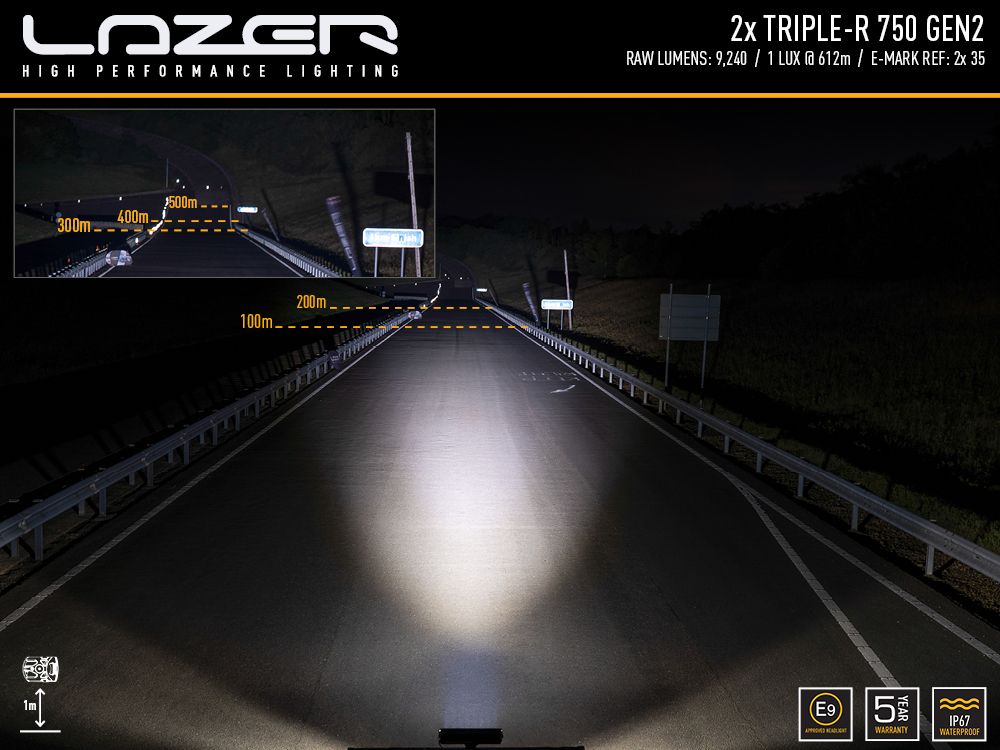

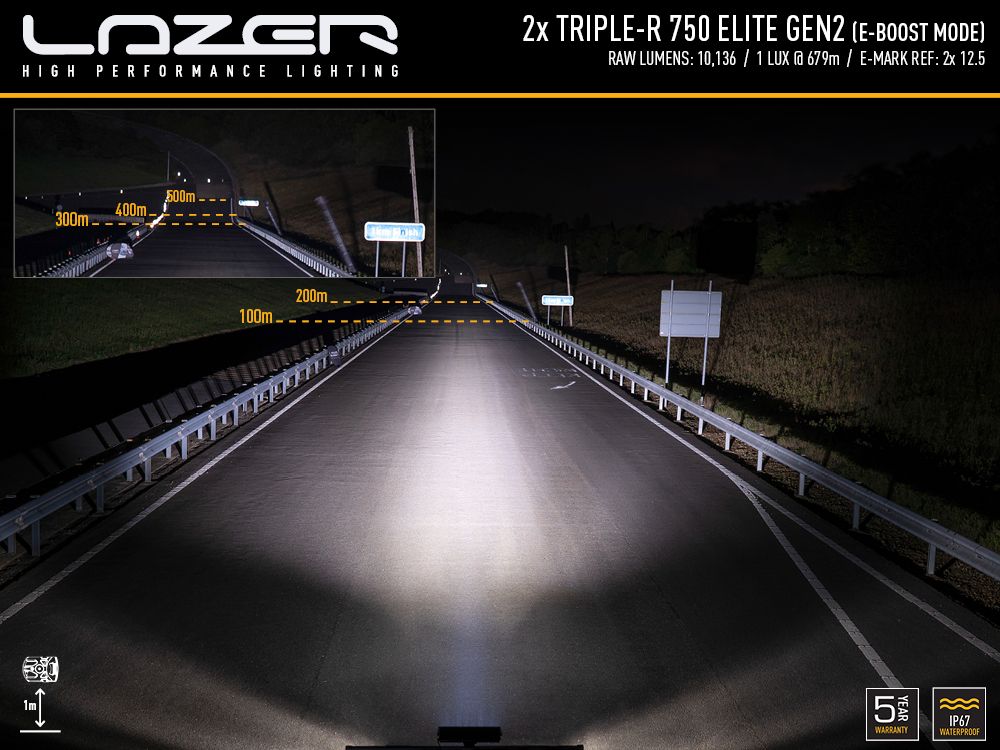

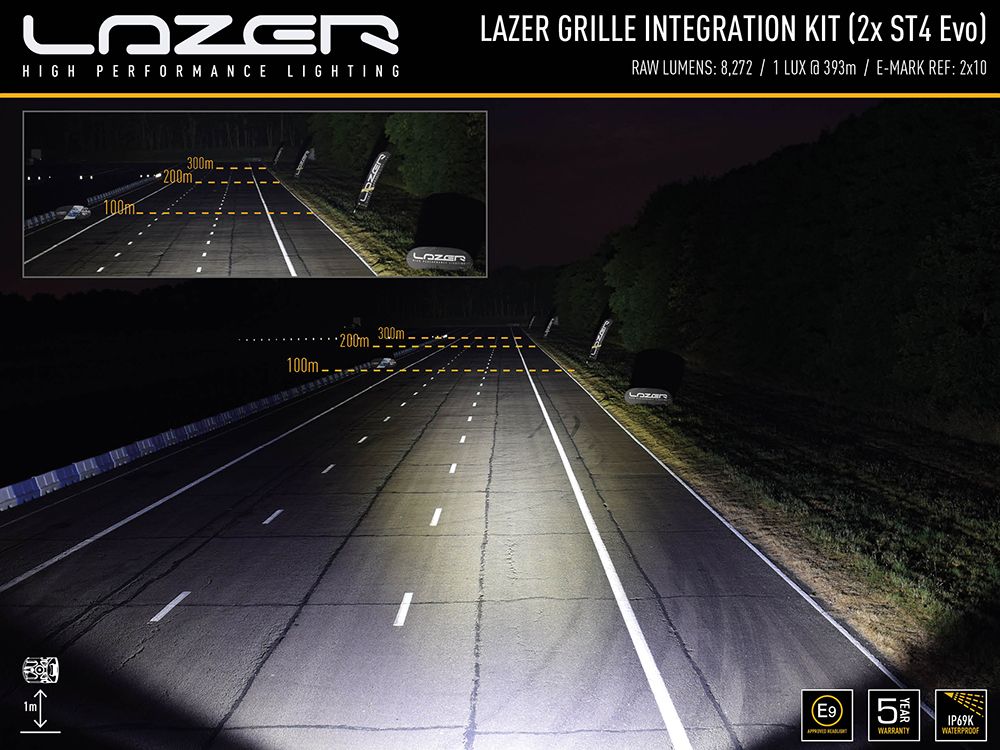

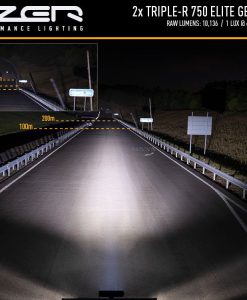

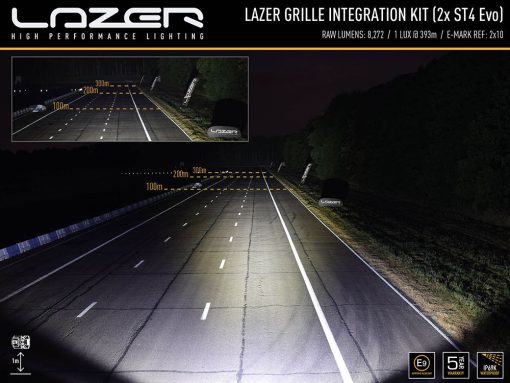

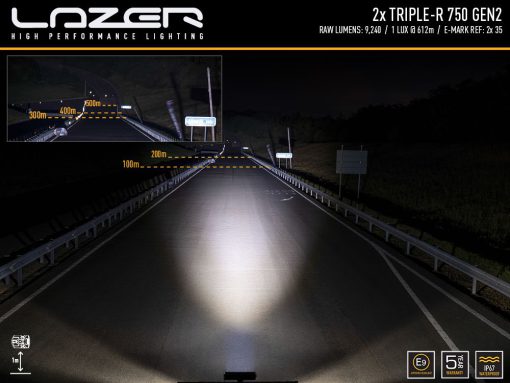

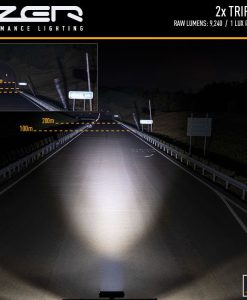

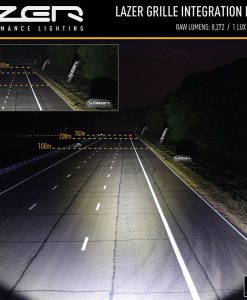

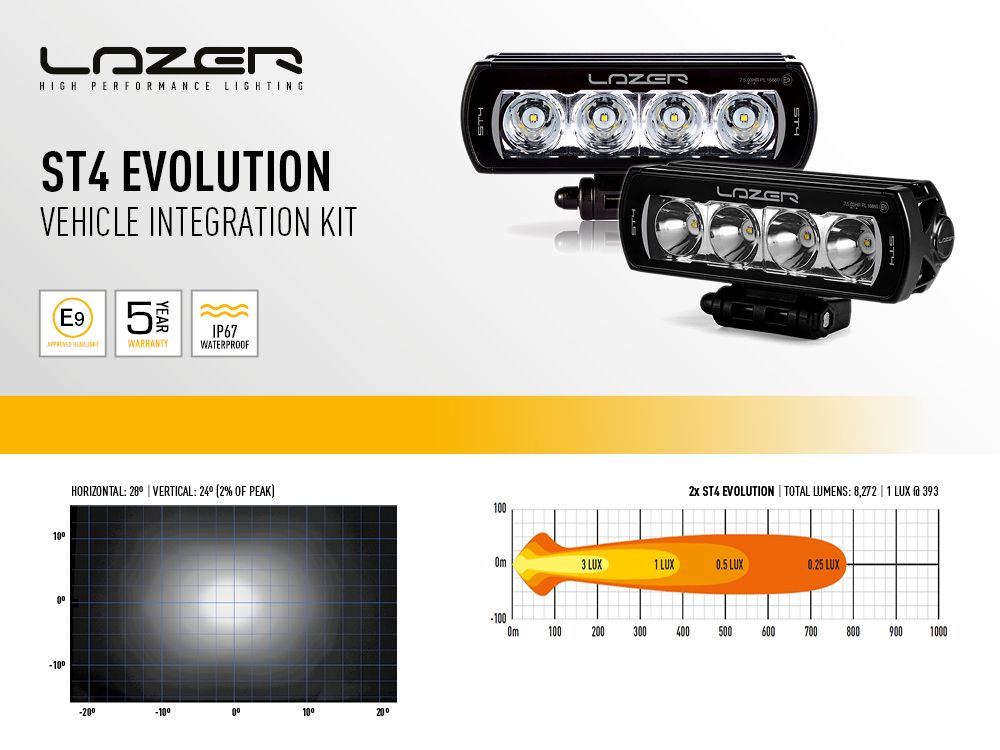

The ST4 Evolution option delivers good distance illumination (1 lux at 393m) but with an all-round spread of light that ensures excellent visibility both left/right and up/down. In this respect, the ST4 is particularly well suited for customers driving in rural or off-road locations. By contrast the Triple-R 750 (available in Standard or Elite grade) delivers a spot beam with 1 lux reaching 612m or 679m depending the lamp version selected. Both options are fully ECE approved for on-road use.

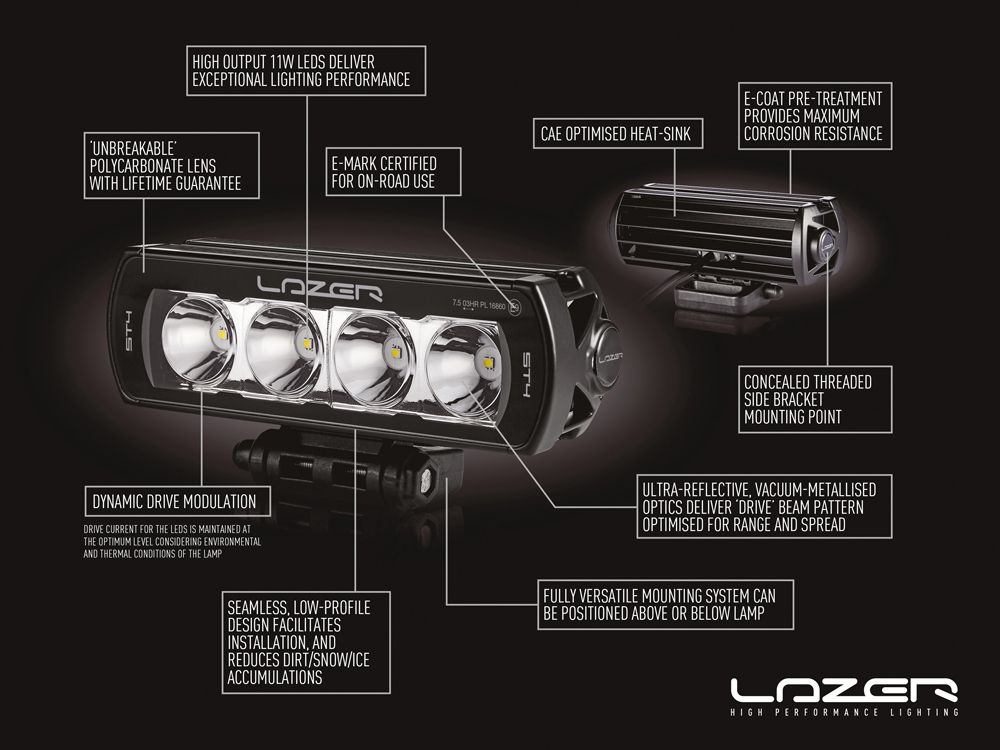

With no compromises in component parts or production techniques, as with all Lazer products, we have taken every step to maximise lighting performance, and build quality, to ensure your lighting installation remains in excellent condition for years to come.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Auxiliary spotlight installation for Isuzu D-Max (2017+)

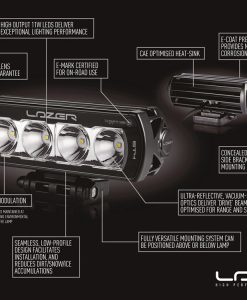

Optimised mounting with pair of ST4 Evolution or Triple-R 750 spotlights

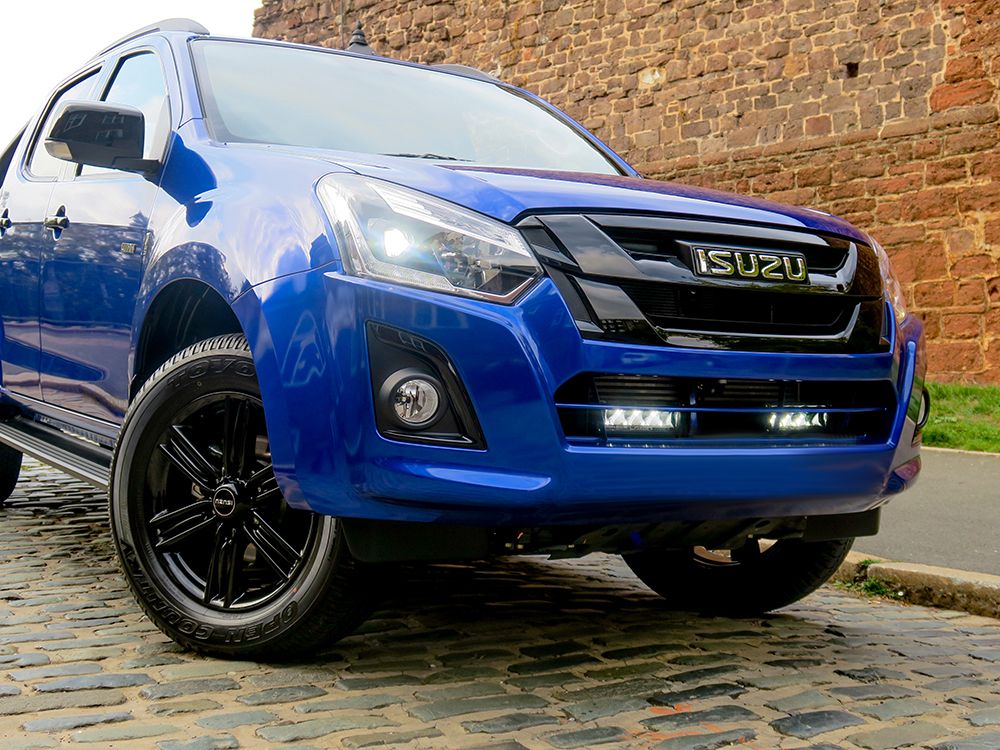

Secured to vehicle’s bumper beam bar behind lower grille

Vehicle wiring kits available

Fully road-legal

5-year warranty

Made in Britain

Wat wordt er geleverd:
– x1 Linear-24 Elite High Performance LED-spot

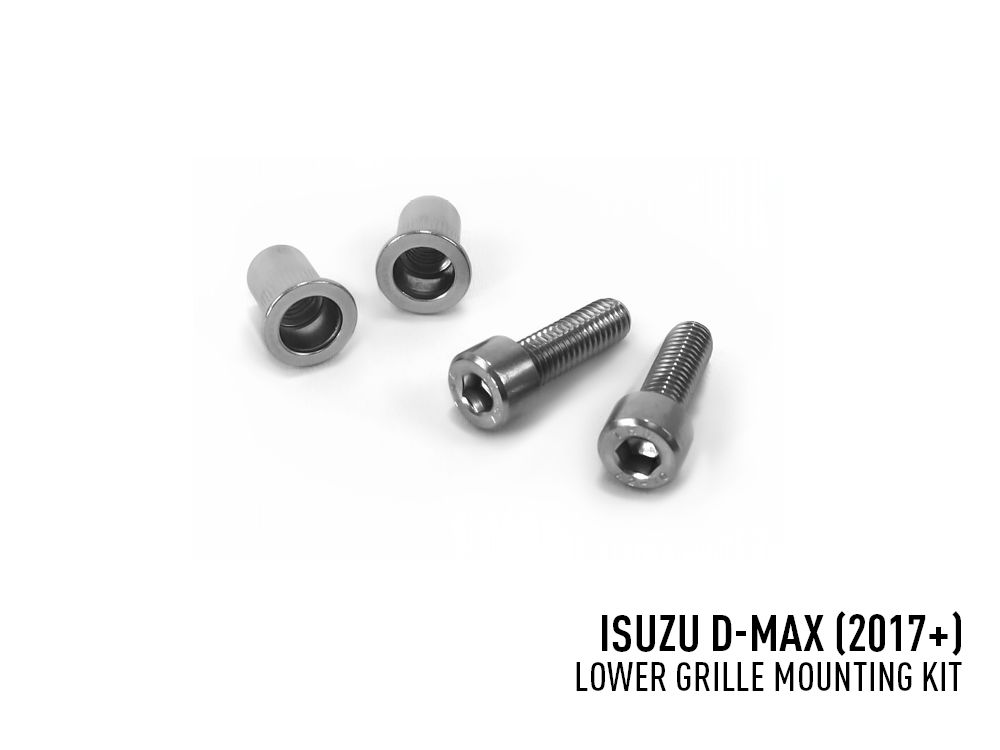

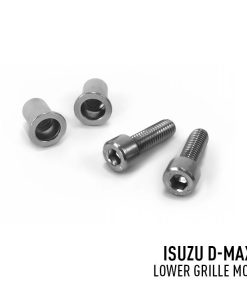

– x1 montagekit (bestaande uit 2 beugels en bevestigingen)
– x1 bedradingsset voor één lamp
– x1 installatie-instructies

Specifications:

Technical Specifications

	2x Triple-R 750 Elite (E-Boost Mode)	2x Triple-R 750	2x ST4 Evolution
Voltage Range	10-32V	10-32V	10-32V
LED Life	50,000 hrs	50,000 hours	50,000 hours
Weight	2 kg	2 kg	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	10136 Lm	9240 Lm	8272 Lm
Total Driver ‘FOV’ Flux †	6680 Lm	5572 Lm	4980 Lm
Colour Temperature	5000K	5000K	5000K
Number of High Output LEDs	2 x 4	2 x 4	2 x 4
Power Consumption	104 Watts	88 Watts	94 Watts
Current Draw (at 14.4V)	7.2 Amps	6.2 Amps	6.6 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112	ECE R112
E-Mark Ref	N/A (12.5 x2 – E-Mark Mode)	35 x2	10 x2
Position Light (White only)	N/A	ECE R7	N/A

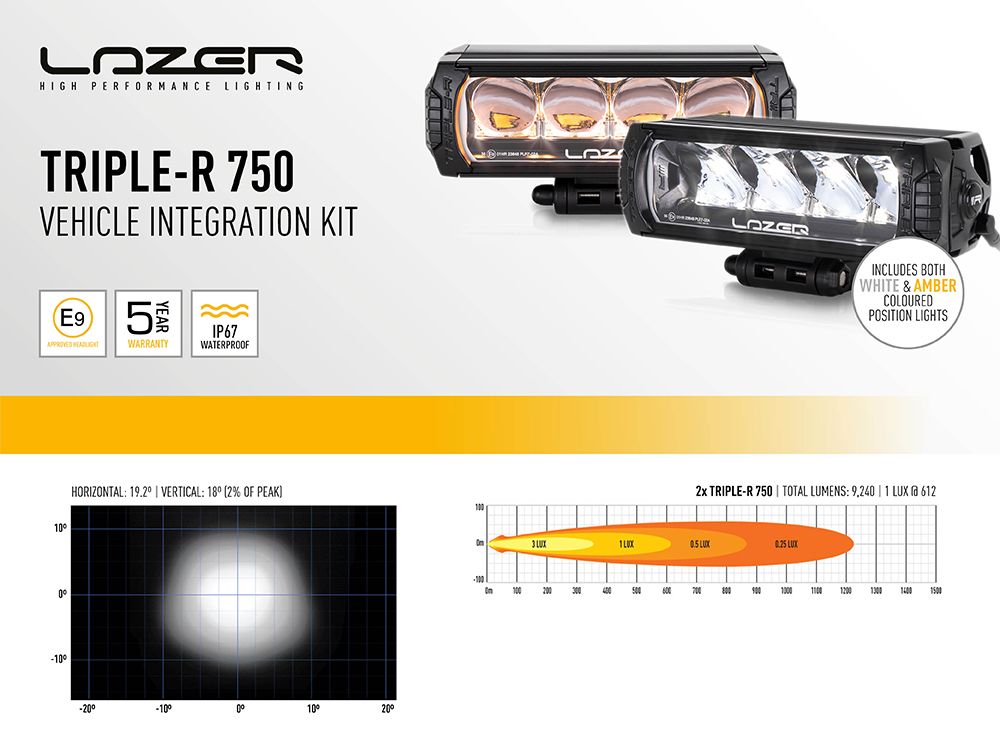

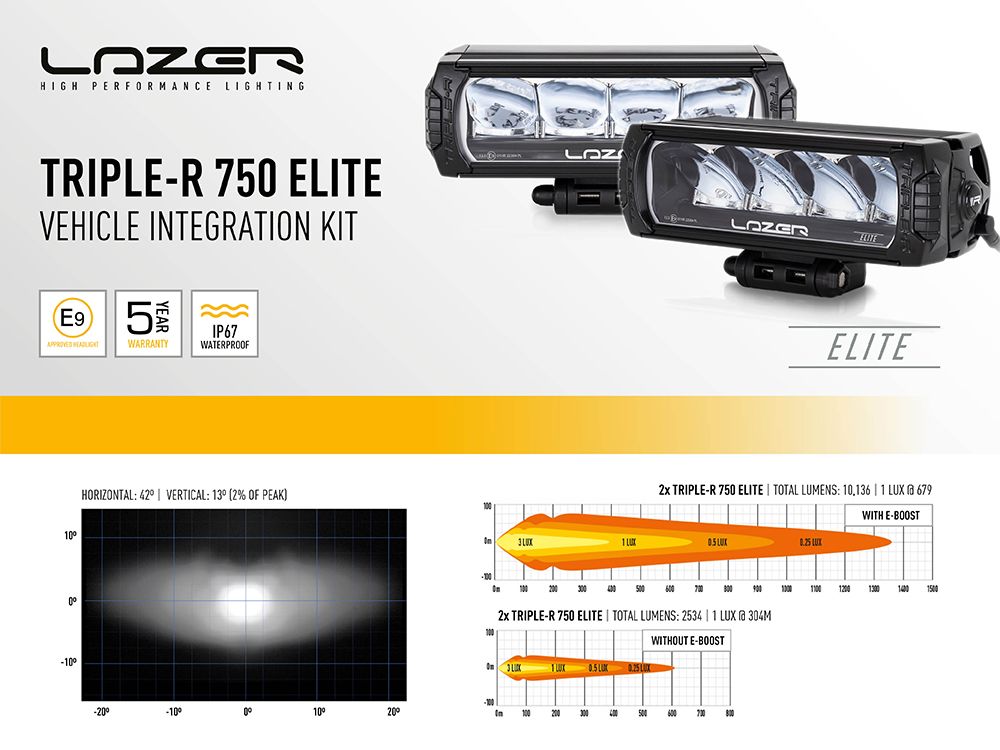

PHOTOMETRIC DATA
Horizontal Beam Angle	42°	19°	40°
0.25 lx Line	1358m	1225m	786m
0.5 lx Line	960m	866m	555m
1 lx Line	679m	612m	393m
3 lx Line	392m	354m	227m
