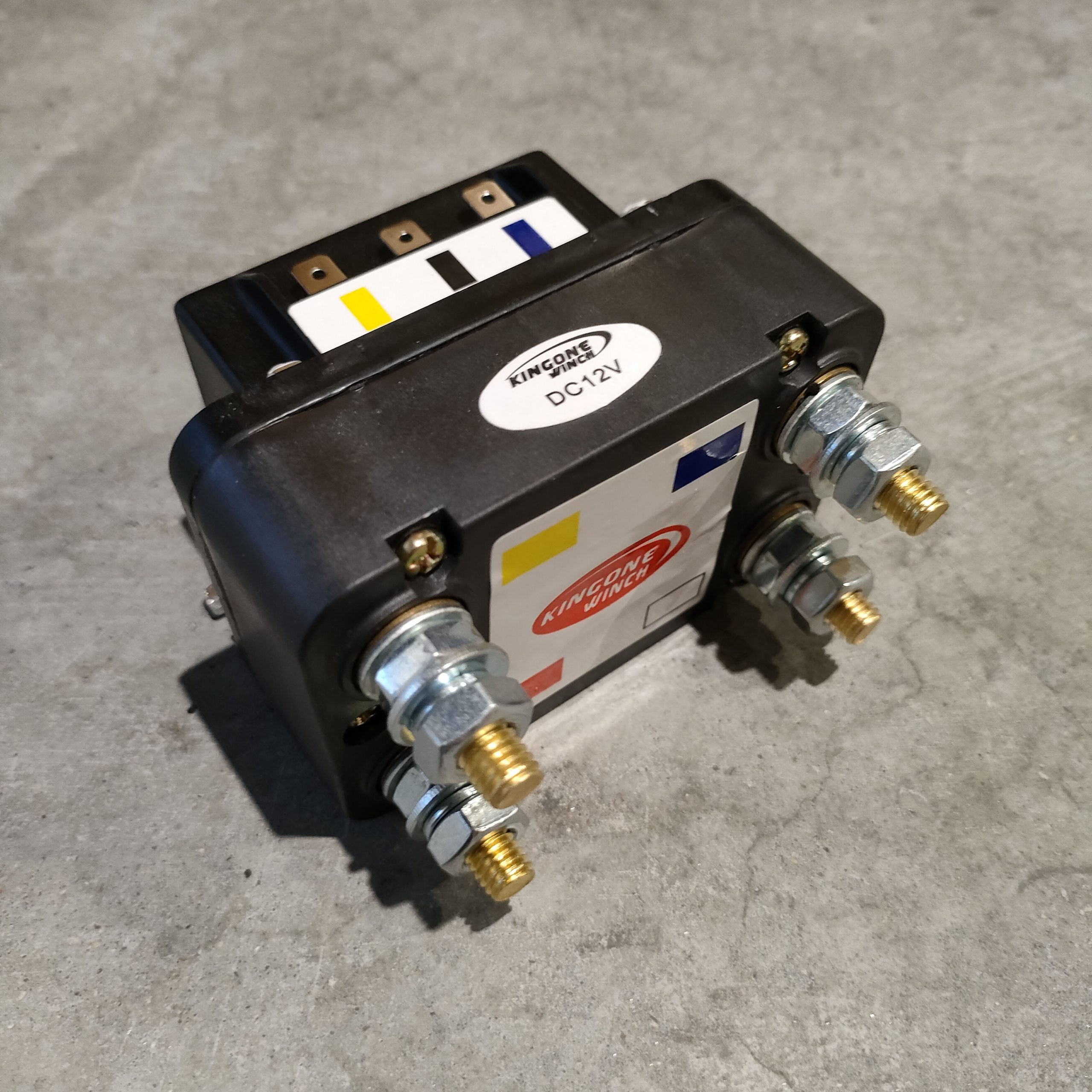

KingOne Winch – TDS Relay / Magnetic Switch

• 500 A 12 V winch magnetic relay protection, suitable for winches up to 8000 lb – 12000 lb.
• Compatible with wireless winch remote control systems, allows the operator to keep away from dangerous rigs.
• Excellent replacement for the old or damaged winch relay made of high quality plastic with solid construction.
• This replacement of the winch magnet guard comes with a shatterproof, sealed and corrosion-resistant housing that is durable.
• Easy installation in the control box with pre-cut mounting bracket. Suitable for all 12V magnetic winches of ATV, UTV, etc.

Specification:

Element Type: Winch Relay
Material: plastic.

Size: approx. 10 x 8.7 x 5.5 cm.

Coil Rated Voltage: 6-110V DC

Operating voltage: 12 V DC.
Working Power: 15W
Contact Circuit Voltage: 80V DC
Charging current: maximum 250V AC 500A
Ambient temperature: -40 °C to 85 °C.
Frequency: 10 Hz – 200 Hz.
Acceleration: ≤ 3.5 g.
Speed: 60-100 per minute
Mechanical life: up to 100,000 operations.
Electrical life: up to 50,000 operations.
Operating control: 50 circle.

TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.
