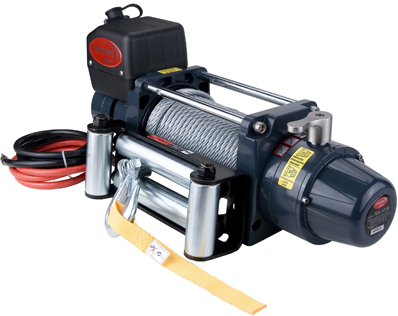

KingOne Winch – TDS-12.0C Steel Cable

Heavy duty series wound motor delivers superior torque output and faster line speed.
3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
Automatic,double cone brake.
Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
Installation ,operation and maintenance with ease.

Specification

Line pull:	5,442kgs/12,000lbs
Motor:	12V/6.0HP 24V/3.6HP
Gear Train:	Three stage
Gear Ratio:	254:1
Freespooling Clutch:	Rotating ring gear
Wire Rope Size:	Φ3/8″×90′(Φ9.5mm×27.4m)
Drum Size:	Φ2.5″×9″(Φ63.5mm×229mm)

Line pull

Layer of Wire Rope	Max Line Pull
1	12,000lbs/5,442kgs
2	9,789lbs/4,445kgs
3	8,273lbs/3,760kgs
4	7,199lbs/3,255kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)	AMP Draw(24V)
No Load	29.3FPM/9MPM	60	40
2,000lbs/907kgs	13FPM/4MPM	116	87
4,000lbs/1,814kgs	9.8FPM/3MPM	141	110
6,000lbs/2,722kgs	7.9FPM/2.4MPM	178	129
8,000lbs/3,650kgs	6.9FPM/2.1MPM	224	165
9,500lbs/4,309kgs	6.2FPM/1.9MPM	238	185
11,000lbs/5,000kgs	4.9FPM/1.5MPM	270	214
12,000lbs/5,442kgs	4.5FPM/1.4MPM	285	217

Standard accessoiries

Controller	TA-0906
Wire Rope With Hook
4 Way Roller Fairlead	TA-0903
Control Unit	TA-0910/12V	TA-0910/24V
Mounting Hardware
Handsaver Strap

Package

Winch weight :	43kgs/94.6lbs
Gross Weight :	45kgs/99lbs
Box Dimension :	647×198×410 mm(25.5″×7.8″×16.1″)

TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.

Gewicht	45 kg
Afmetingen	64,7 × 19,8 × 41 cm
Voltage	12V, 24V
