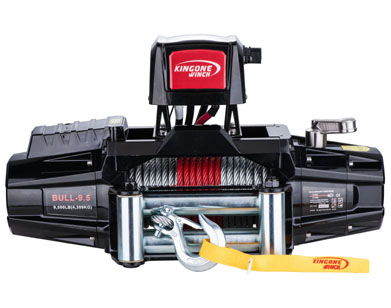

KingOne Winch – BULL-9.5 Steel Cable

Heavy duty series wound motor delivers superior torque output and faster line speed.
3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
Automatic,double cone brake.
Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
Installation ,operation and maintenance with ease.

Specification

Line pull:	4,309kgs/9,500lbs
Motor:	12V/24V series wound
Gear Train:	Three stage
Gear Ratio:	156:1
Freespooling Clutch:	Rotating ring gear
Wire Rope Size:	Φ11/32″×100′(Φ8.7mm×27m)
Drum Size:	Φ2.5″×9″(Φ63.5mm×229mm)

Line pull

Layer of Wire Rope	Max Line Pull
1	9,500lbs/4,309kgs
2	7,800lbs/3,500kgs
3	6,550lbs/2,977kgs
4	5,700lbs/2,578kgs

LINE SPEED AND AMP DRAW(1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)	AMP Draw(24V)
No Load	64FPM/19.5MPM	60	40
2,000lbs/907kgs	15.4FPM/4.7MPM	150	116
6,000ibs/2.722kgs	11.2FPM/3.4MPM	246	220
9,500ibs/4,309kgs	8.2FPM/2.5MPM	370	300

Standard accessoiries

Controller	TA-0906
Wire Rope With Hook
4 Way Roller Fairlead	TA-0903
Control Unit	TA-0909
Mounting Hardware
Handsaver Strap

Package

Winch weight :	45.2kgs/99.6lbs
Gross Weight :	46.5kgs/102.5lbs
Box Dimension :	655×193×445 mm(25.8″×7.6″×17.5″)

TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.

Gewicht	46,5 kg
Afmetingen	65,5 × 19,3 × 44,5 cm
Voltage	12V, 24V
