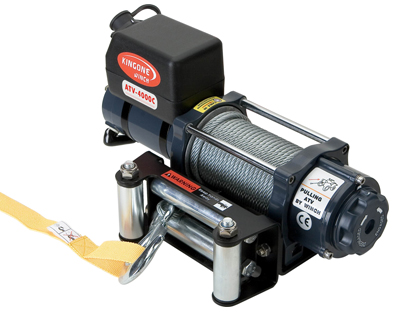

KingOne Winch – ATV-4000C Steel Cable
€379,00 – €409,00 incl. BTW
KingOne Winch – ATV-4000C Steel Cable
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
Specification
| Line pull: | 1,814kgs/4,000lbs |
| Motor: | 12V/1.6HP 24V/1.0HP |
| Gear Train: | Three stage |
| Gear Ratio: | 187:01 |
| Freespooling Clutch: | Rotating ring gear |
| Wire Rope Size: | Φ7/32″x50′(Φ5.5mmx15m) |
| Wire Rope Type: | Aircraft A7X19 |
| Drum Size: | Φ2.3″x5.2″(Φ59mmx131.5mm) |
Line pull
| Layer of Wire Rope | Max Line Pull |
| 1 | 4,000lbs/1,814kgs |
| 2 | 3,735lbs/1,694kgs |
| 3 | 3,188lbs/1,446kgs |
| 4 | 2,780lbs/1,261kgs |
LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
Â
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
| No Load | 24FPM/7.3MPM | 55 | 49 |
| 500lbs/230kgs | 6.6FPM/2.0MPM | 210 | 172 |
| 1,000lbs/450kgs | 4.0FPM/1.2MPM | 290 | 260 |
| 1,500lbs/680kgs | 2.6FPM/0.8MPM | 350 | 310 |
| 2,000lbs/900kgs | 2.6FPM/0.8MPM | 350 | 310 |
Standard accessoiries
| Controller | TA-0508 |
| 4 Way Roller Fairlead | TA-0905 |
| Control Unit | TA-0511 |
| Handsaver Strap | |
| Base Frame | TA-0304 |
| Mounting Hardware | |
| Wire Rope With Hook |
Package
| Winch weight : | 14.97kgs/32.9lbs |
| Gross Weight : | 16.96kgs/37.3lbs |
| Box Dimension : | 430×225×235 mm(16.9″×8.9″×9.3″) |
TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.
| Gewicht | 16,96 kg |
|---|---|
| Afmetingen | 43 × 22,5 × 23,5 cm |
| Voltage | 12V, 24V |
