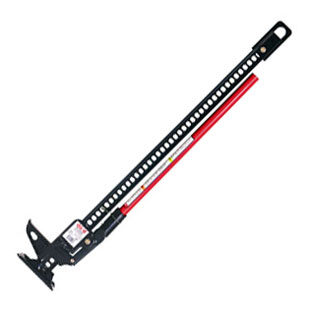

Hi-Lift® – Cast/Steel Jack HL-604 152 cm

The cast and steel jack is exactly the same as the all-cast jack except that it has four stamped high-strength steel parts. We stamp and form the parts in-house; that allows us to offer the jack at a lower price, yet we still maintain the rigid quality standards that every Hi-Lift product must meet.

• Made of Cast & Stamped Steel Parts.
• 7000lb (3175.14kg) Tested Capacity.
• Available in 36″, 42″, 48″, & 60″ Heights. (91, 107, 122, & 152cm)
• Lifts, Winches, Clamps, & More.
• Tested and certified to meet applicable requirements of ASME B30.1-2015.

FEATURES

• Size: 150cm
• Min. Lift Height: 11.43cm
• Max. Lift Height: 123.83cm
• Overall Height: 150.5cm
• Width: 12.7cm
• Depth: 24.46cm
• Rated Load (RL): 2,113kg
• RL on upper 30.5cm: 1,206kg
• Tested Load (TL): 3,175kg
• TL on upper 30.5cm: 1,814kg
• Winching Capacity: 2,268kg
• Clamping Capacity: 340kg
• Weight: 13.66kg
