FRONT RUNNER – VOLKSWAGEN T5 TRANSPORTER SWB (2003-2015) SLIMLINE II 1/2 ROOF RACK KIT

FRONT RUNNER – VOLKSWAGEN T5 TRANSPORTER SWB (2003-2015) SLIMLINE II 1/2 ROOF RACK KIT

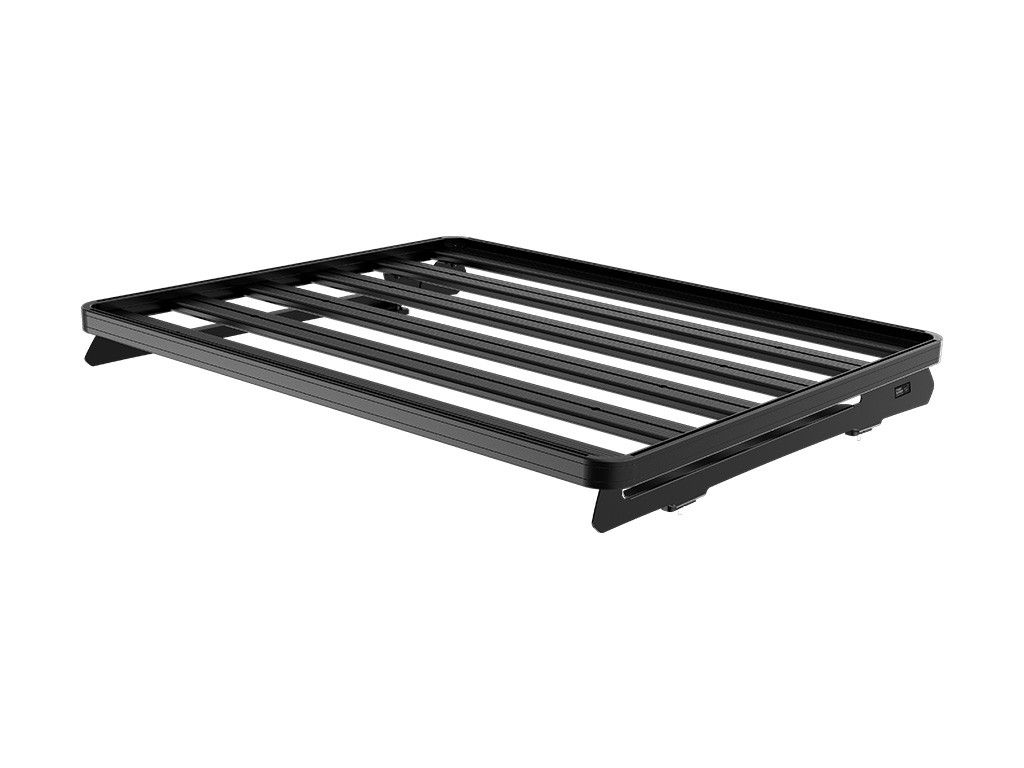

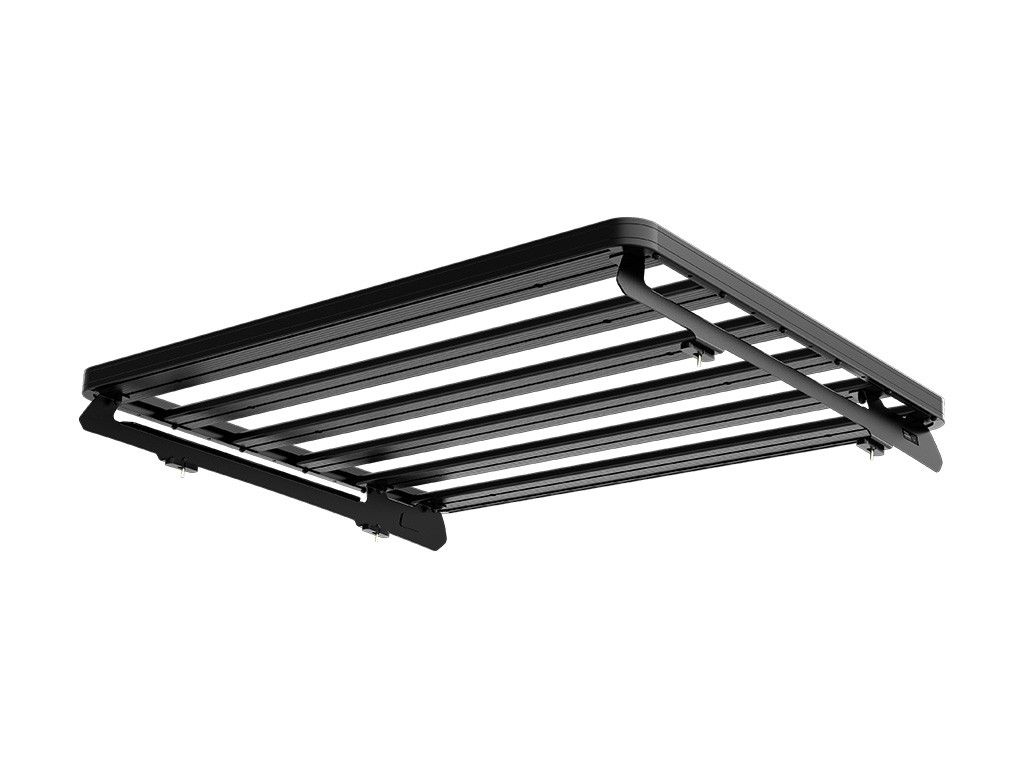

This 1156mm/61.4″ long 1/2 size Slimline II cargo carrying roof rack kit contains a Slimline II Tray, Wind Deflector, and 2 foot rails to mount the Slimline II Tray to your Volkswagen T5 Transporter. It easily installs using the existing factory mounting points. No drilling required.

Info:

All Front Runner Rack Kits contain Installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller prep and 1 larger camp size table).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specs:

Consisting of:

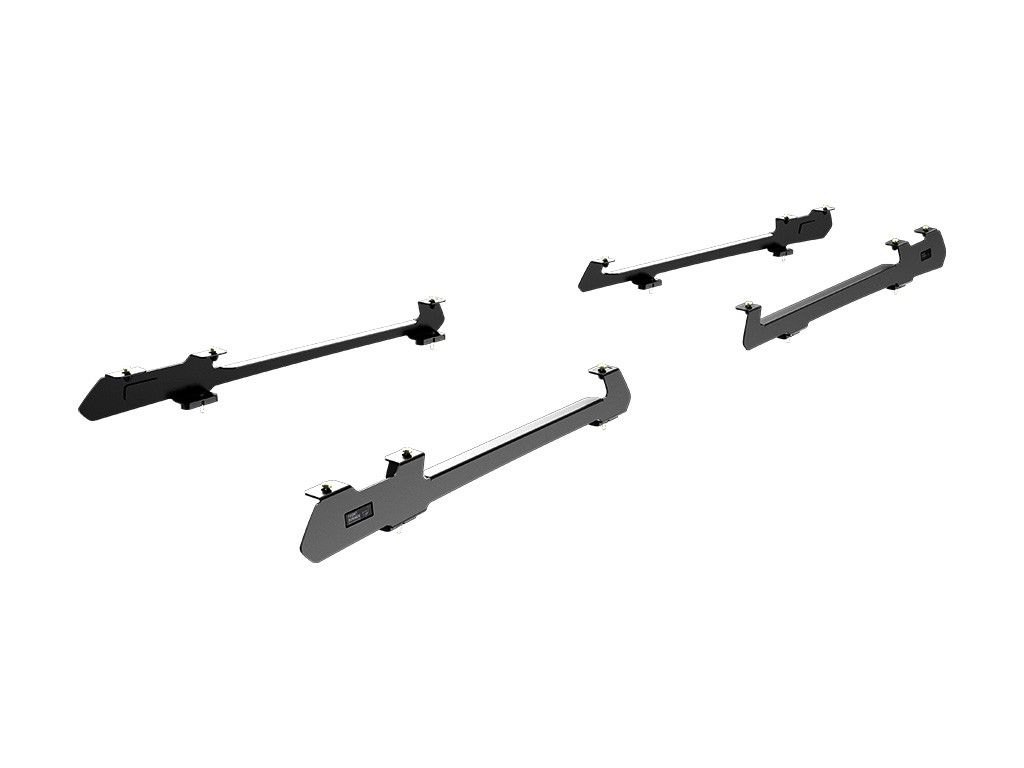

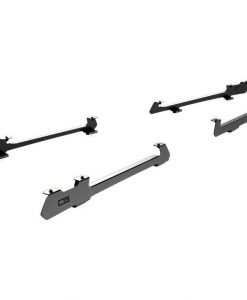

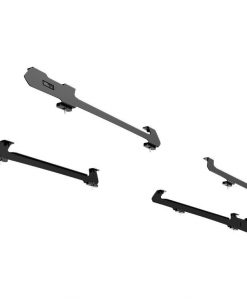

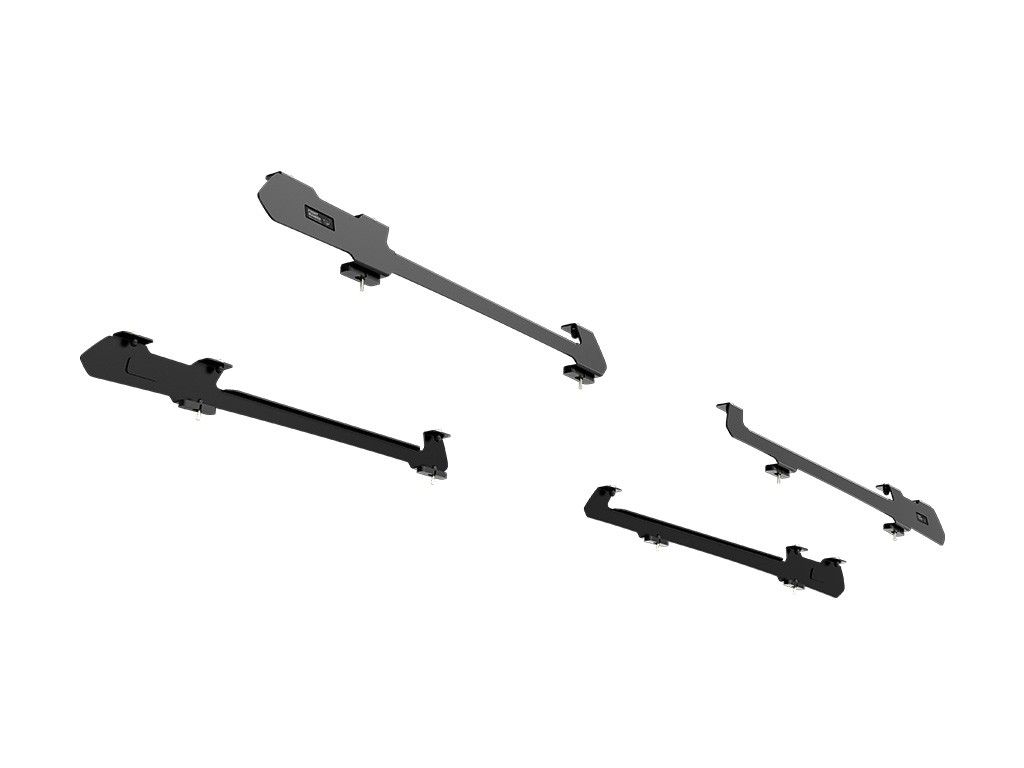

• 1 x FAVT001 – Volkswagen T5 Caravelle/Transporter Foot Rails – by Front Runner
• 1 x RRSTJ06 – Slimline II Tray – 1425mm(W) x 1156mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 29kg (63lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 620mm (24″)
• Length 1640mm (65″)
• Height 160mm (6″)

Shipping Weight:

• Weight 33.2kg (73.0lbs)
