FRONT RUNNER – SUZUKI GRAND VITARA (2007-2014) SLIMLINE II ROOF RACK KIT

FRONT RUNNER – SUZUKI GRAND VITARA (2007-2014) SLIMLINE II ROOF RACK KIT

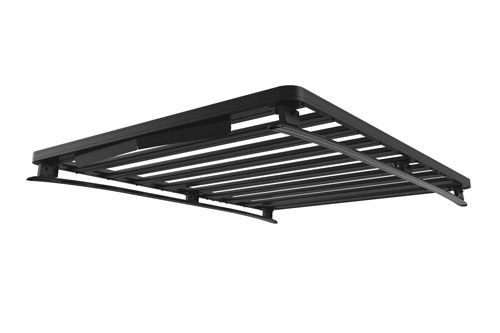

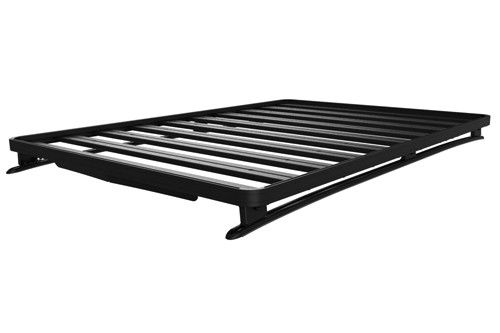

This 1762mm/69.4″ long full-size Slimline II cargo carrying roof rack kit for the Suzuki Grand Vitara (2007-2014) contains Slimline II Tray, Wind Deflector, 2 Tracks and 6 Feet. Drilling is required for installation.

Info:

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specs:

Consisting of:

• 1 x FASS012 – Foot Set / 40mm-50mm – by Front Runner

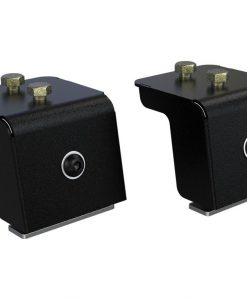

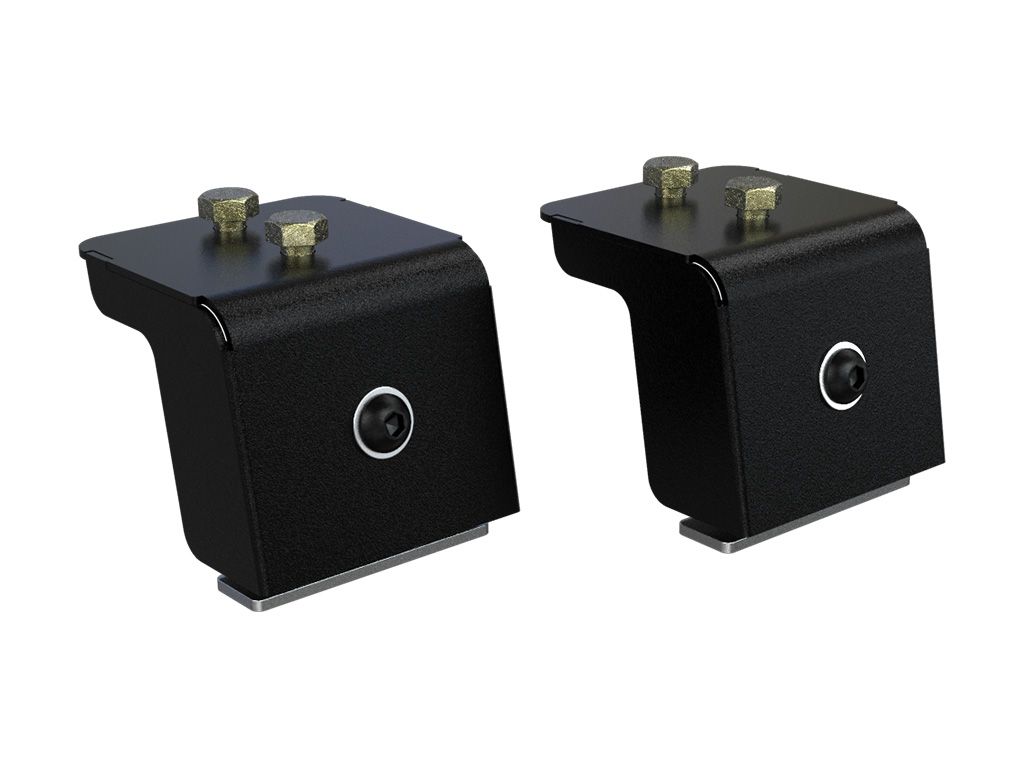

• 1 x FASS013 – Foot Set / 60mm-70mm – by Front Runner
• 1 x RRSTD09 – Slimline II Tray – 1255mm(W) X 1762mm(L) – by Front Runner

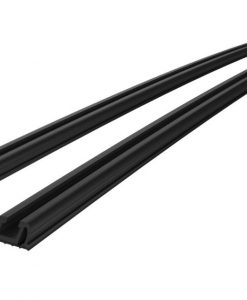

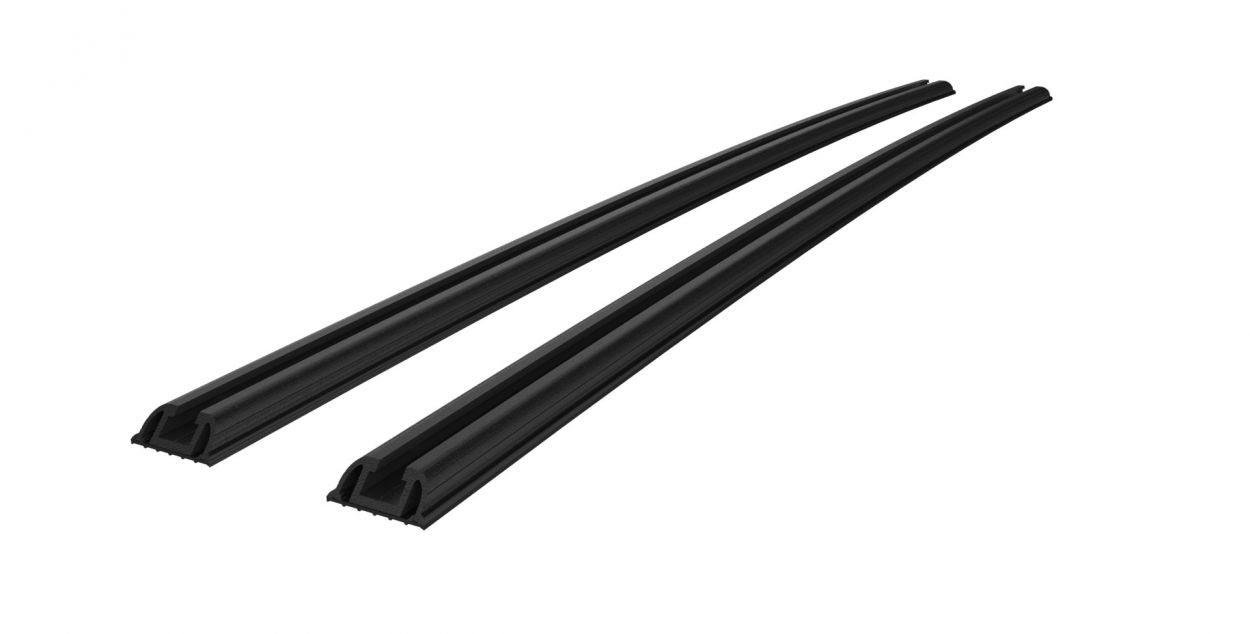

• 1 x TRSV001 – Suzuki Vitara Tracks / 1850mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 28kg (61lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18″)
• Length 1615mm (64″)
• Height 140mm (6″)

Shipping Weight:

• Weight 32.4kg (71.2lbs)
