FRONT RUNNER – PICK-UP TRUCK SLIMLINE II LOAD BED KIT / 1345(W) X 1358(L)

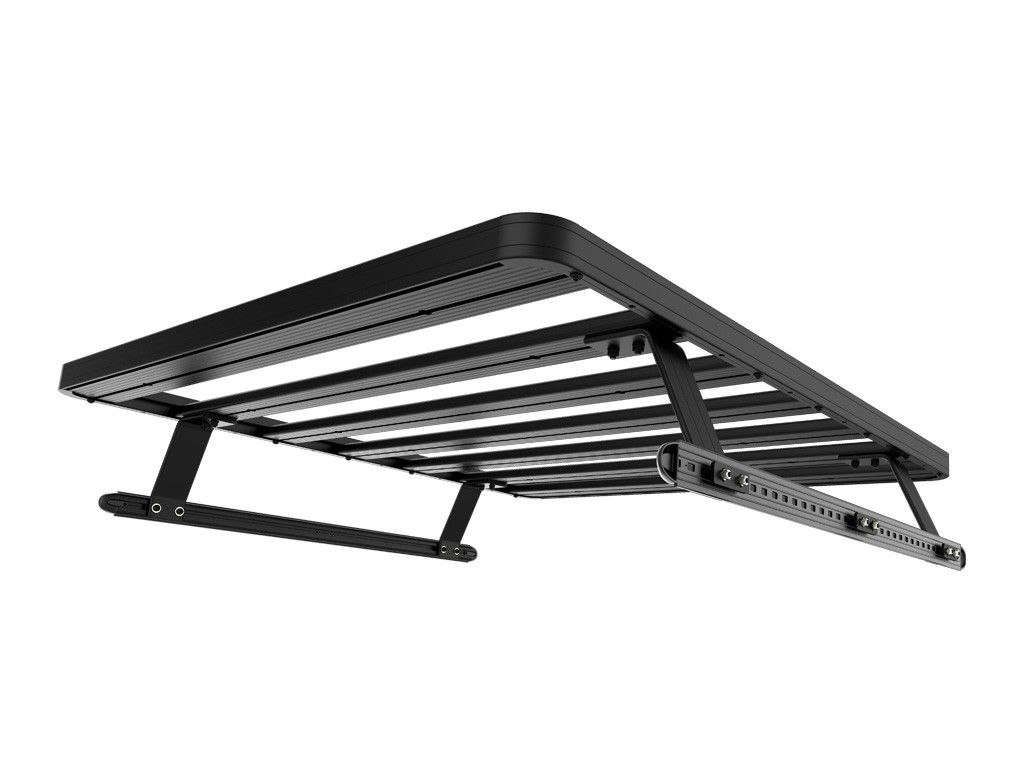

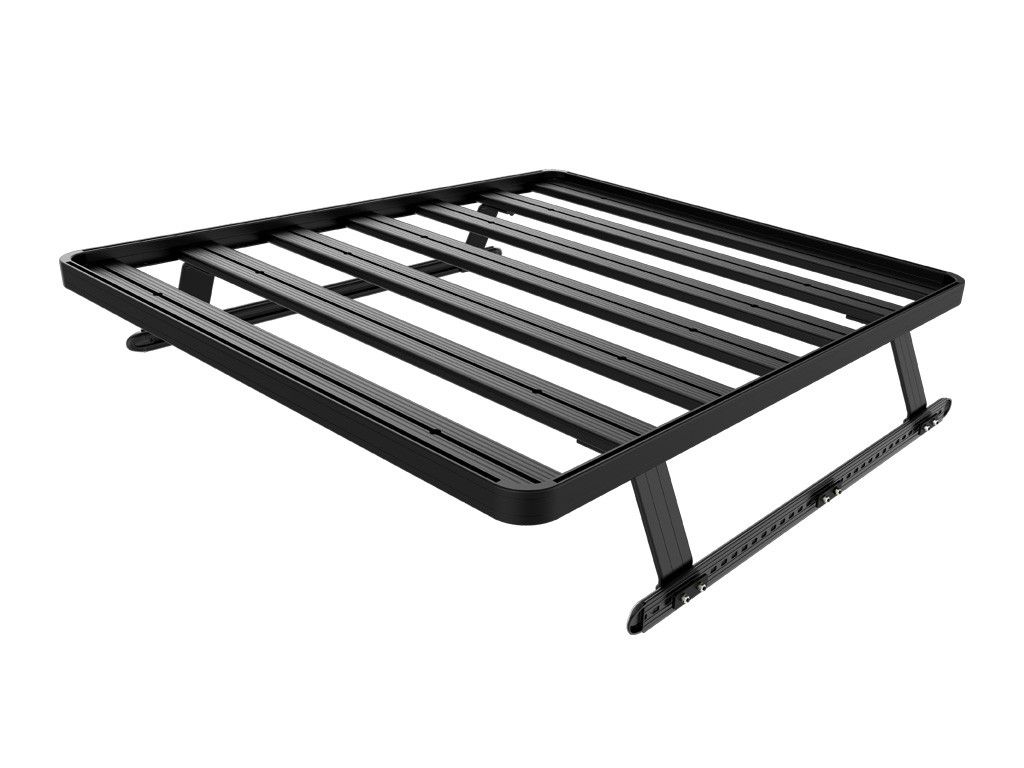

This Pick-Up Load Bed kit contains the Slimline II tray (1345mm x 1358mm), (2) Load Bed Tracks and (4) Load Bed Legs that fit into the Tracks.

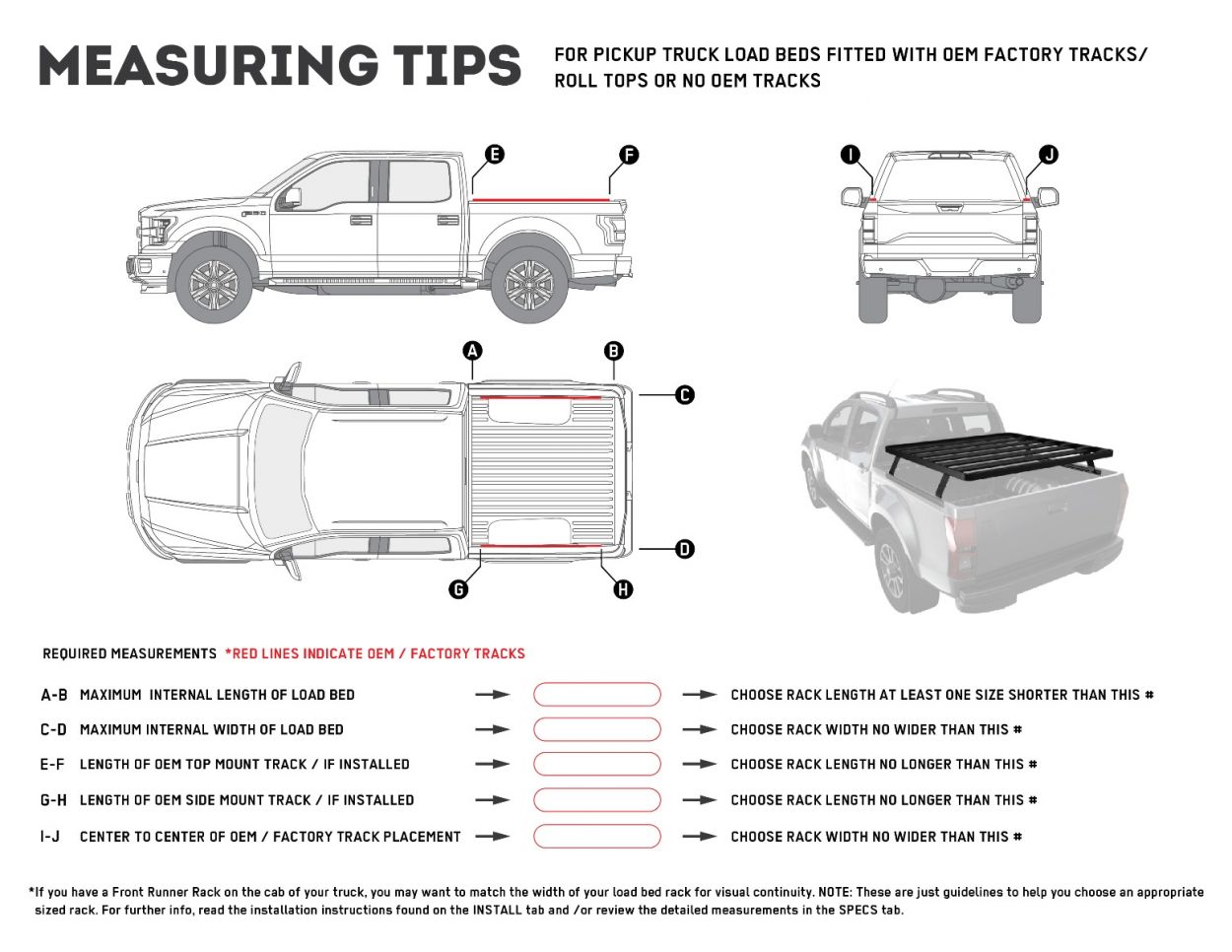

This rack fits a load bed width of 1405mm – 1494mm (55-58″) and length of 1270mm – 1550mm (50-61″).

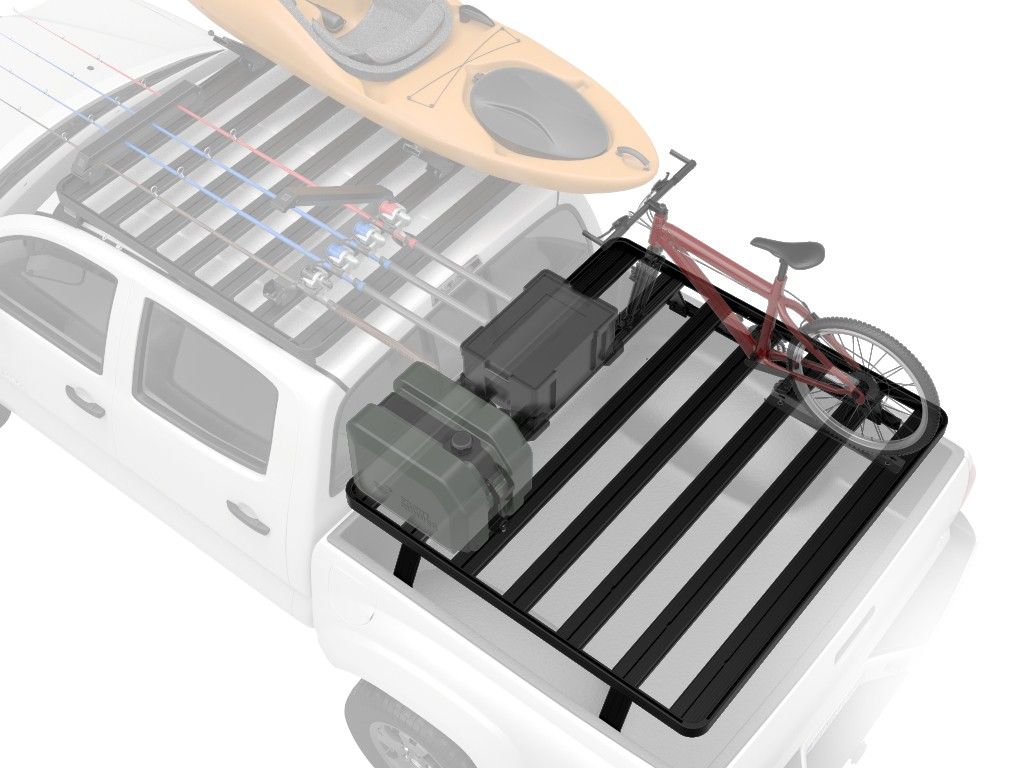

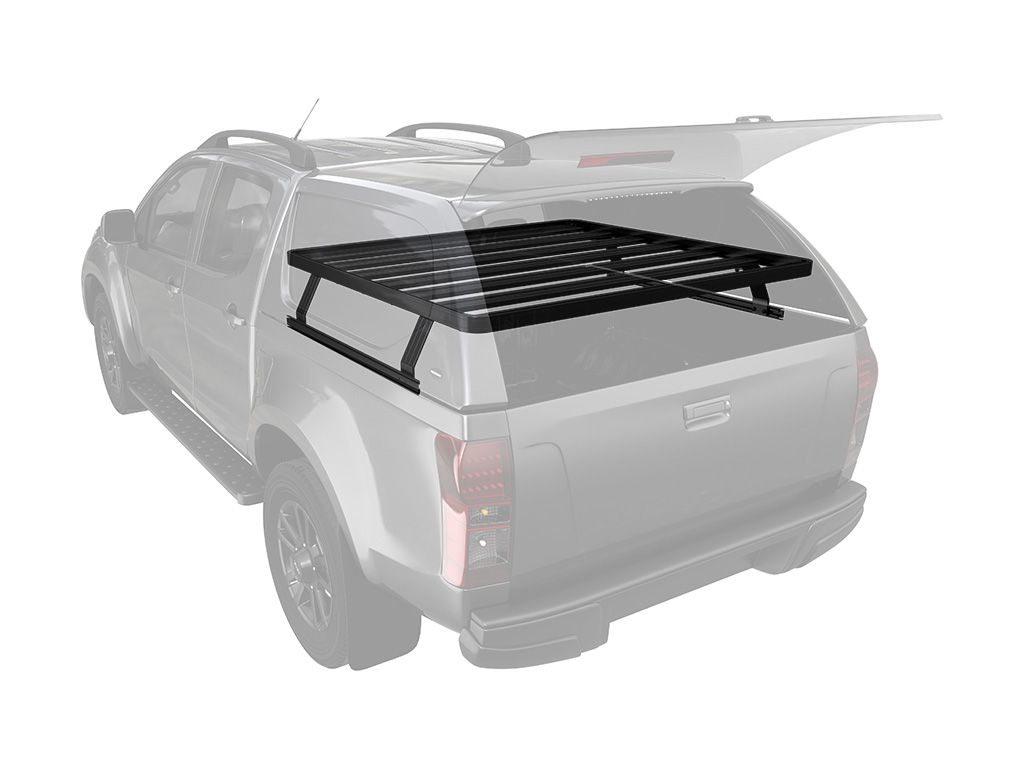

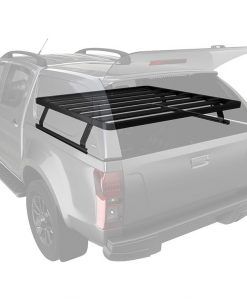

This kit creates a full size rack that is fitted above a pick-up truck load bed.
Drilling is required for installation.
Specs:
Consisting of:

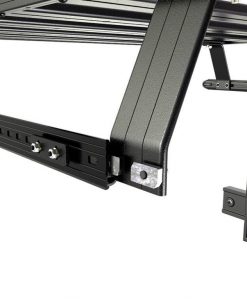

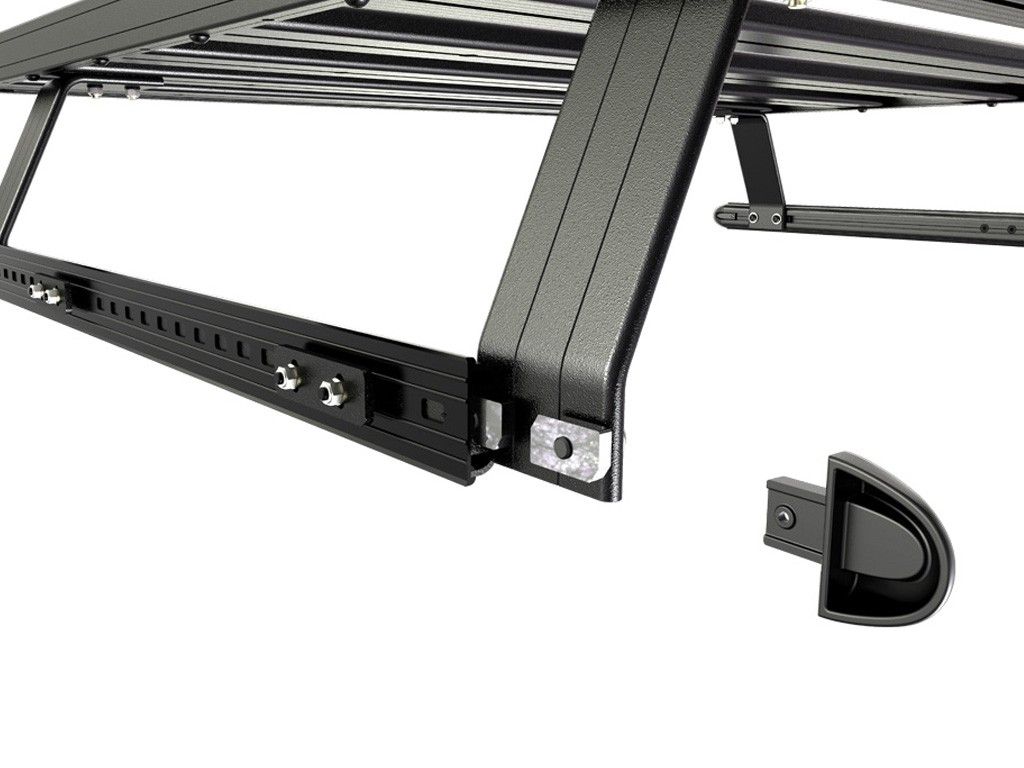

- 2 x LASS026 – Universal Load Bed Leg 188mm (Pair) – by Front Runner
- 1 x RRSTG07 – Slimline II Tray – 1345mm(W) X 1358mm(L) – by Front Runner

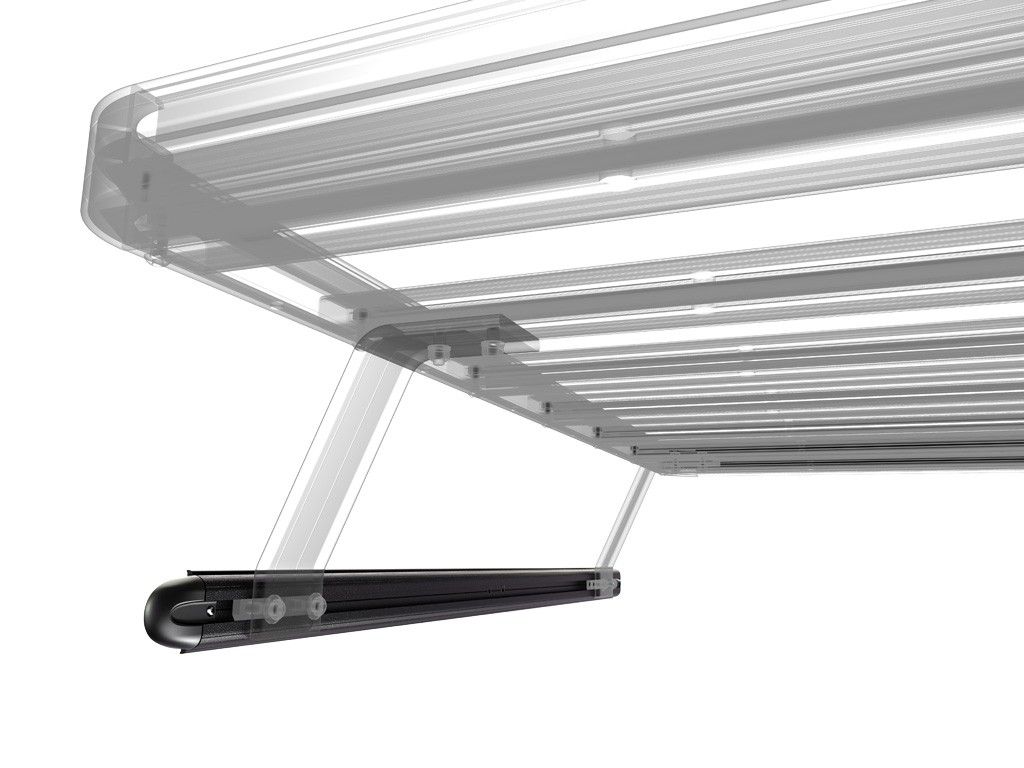

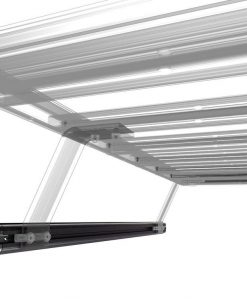

- 1 x TRBU001 – Pick-Up Load Bed Tracks / 1000mm(L) – by Front Runner
Material used:
- Black epoxy powder-coated T6 aluminium
- 3CR12Â Stainless Steel
- Approximate Installed Weight 25kg (56lbs)

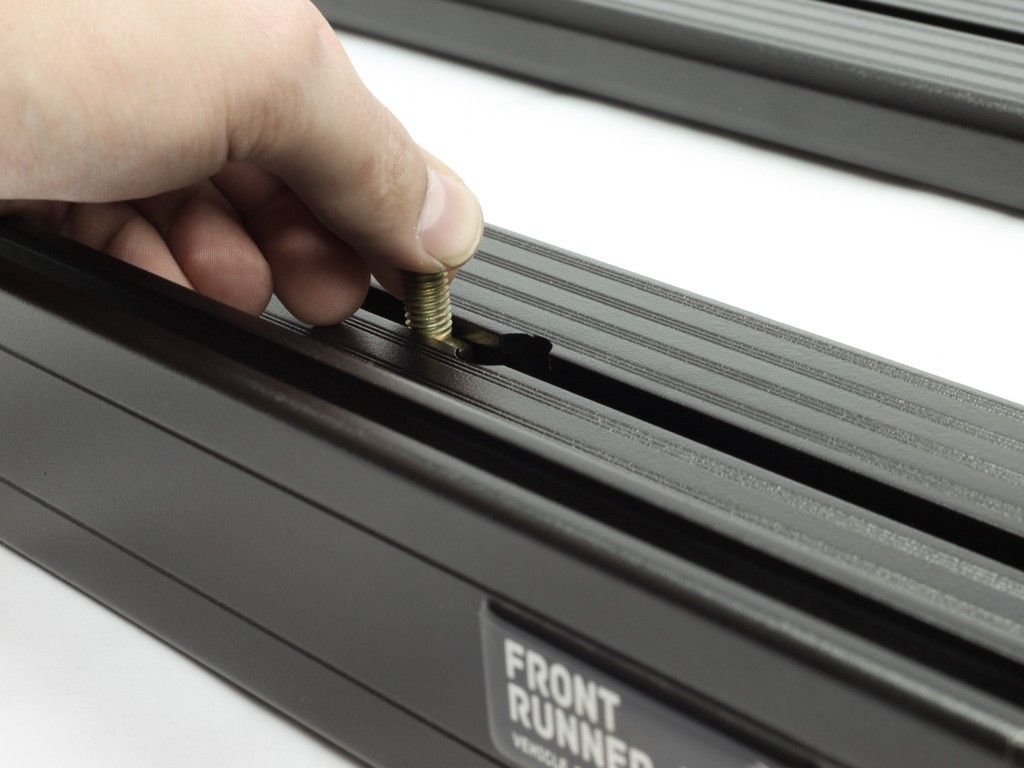

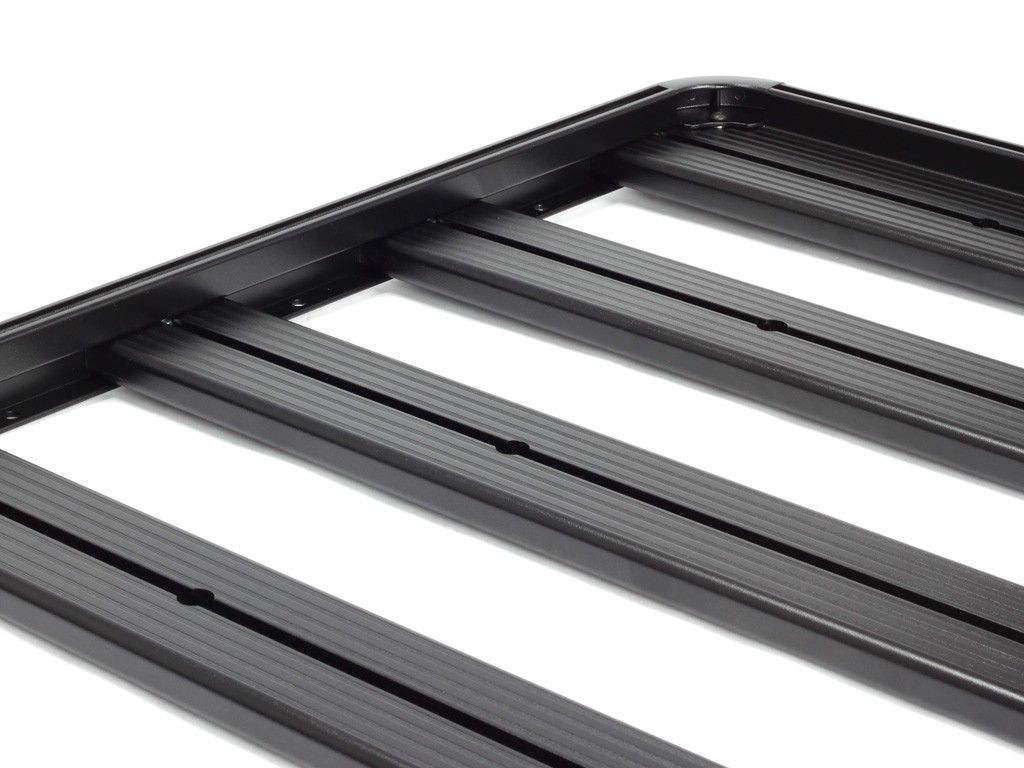

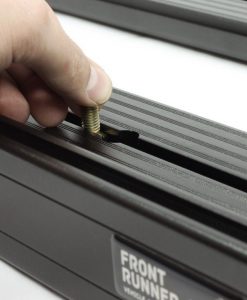

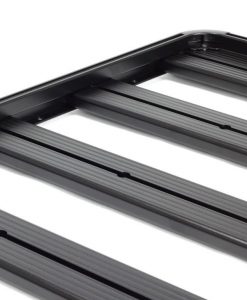

- The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
- To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
- If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
- If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
- Width 450mm (18″)
- Length 1615mm (64″)
- Height 140mm (6″)
Shipping Weight:
- Weight 29.6kg (65.1lbs)
