FRONT RUNNER – JEEP WRANGLER JL 4 DOOR (2018-CURRENT) EXTREME SLIMLINE II ROOF RACK KIT

FRONT RUNNER – JEEP WRANGLER JL 4 DOOR (2018-CURRENT) EXTREME SLIMLINE II ROOF RACK KIT

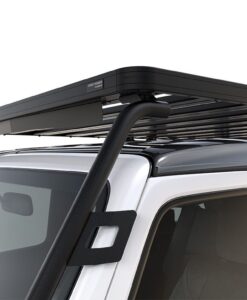

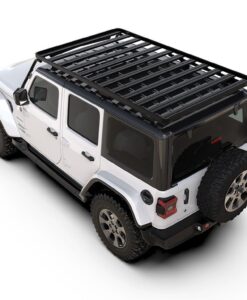

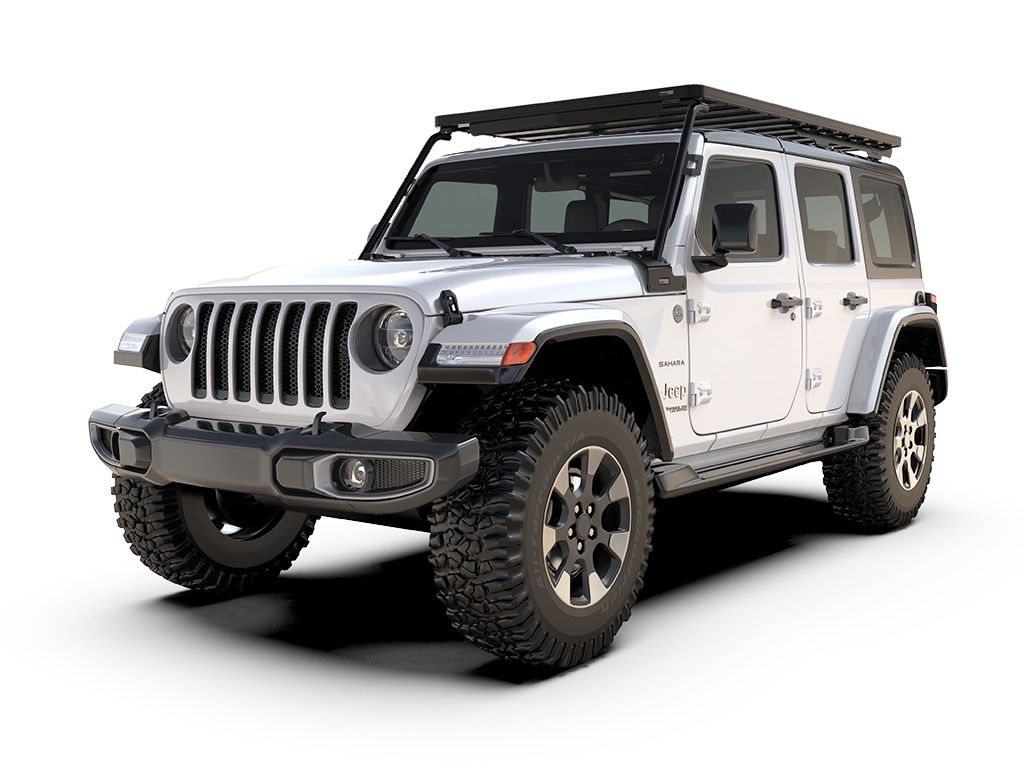

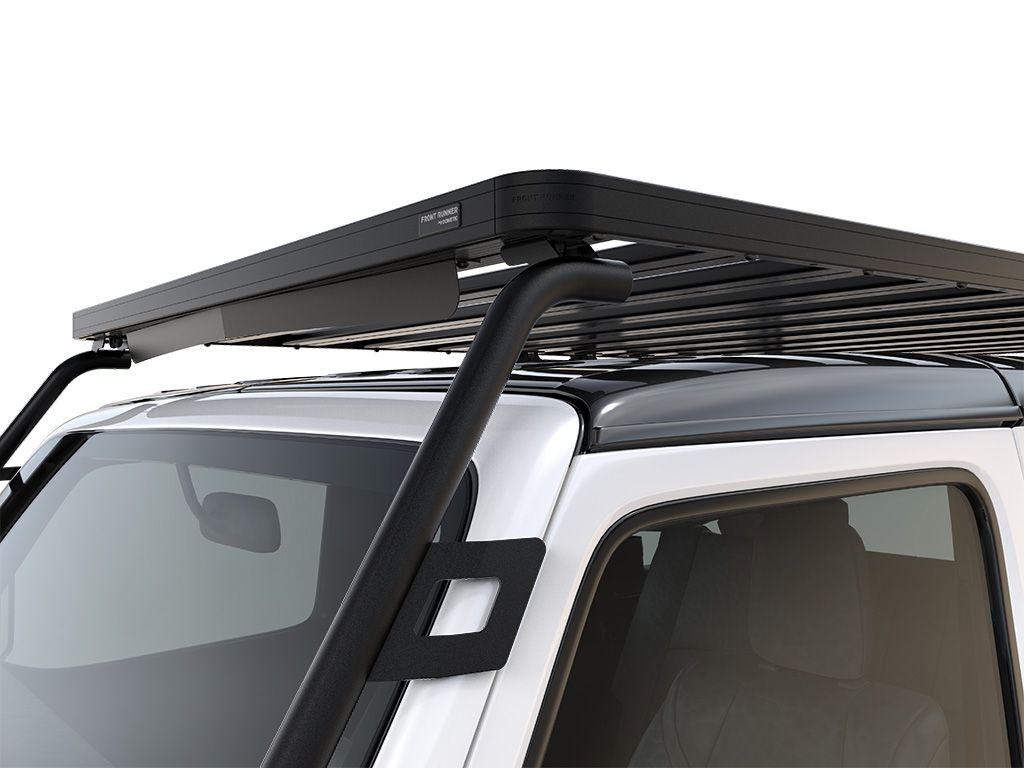

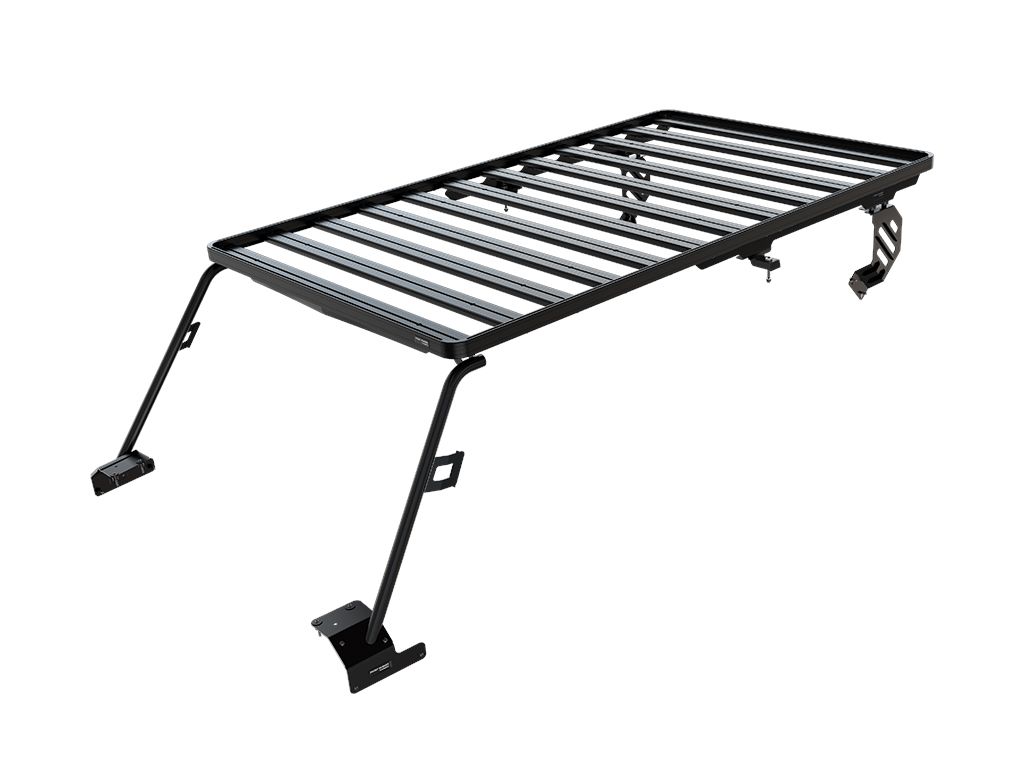

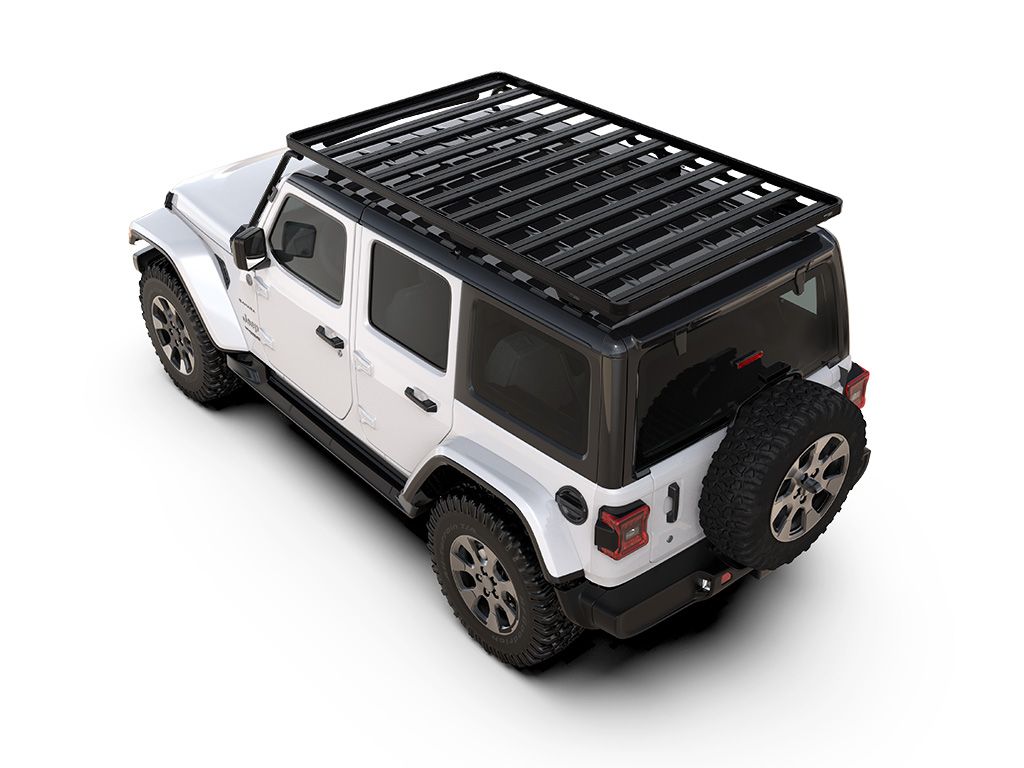

The JL Extreme mounting system bolts to existing mounting points on the chassis and roll cage. This unobtrusive, high performance, nearly indestructible mounting solution allows you to quickly remove the Freedom Panels with the rack in place. The windscreen can also be lowered without any interference. The cargo weight is evenly distributed across the roll bars and body of the jeep, placing zero weight on the hard top itself.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

These Foot Rails allow for a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table) to be fitted.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

For further information on installation, please see the fitment instructions in the INSTALL tab.

*Suitable for most Raised Air Intakes / Snorkels fitments. Confirm fitment with Air Intake / Snorkel fitment guide.
NOTE: This Kit cannot be used together with the soft top roof or Sky One-Touch Power top.
Note: This is not suitable for the Mojave Edition of the Jeep Gladiator.

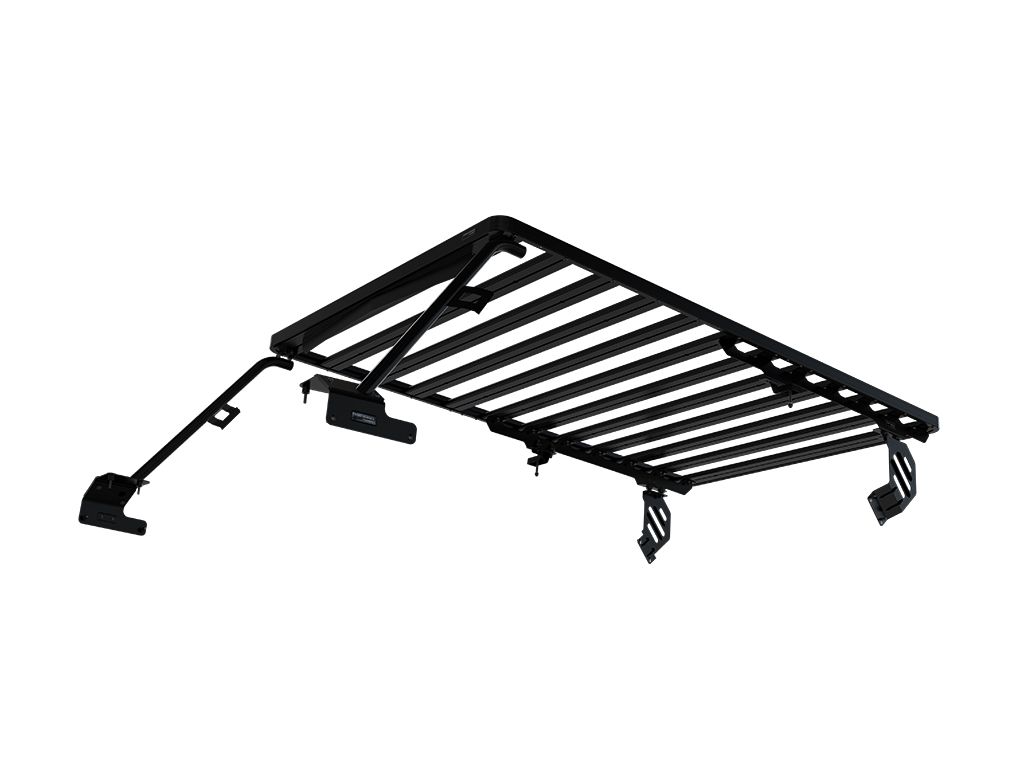

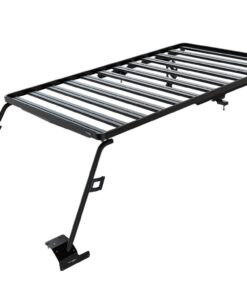

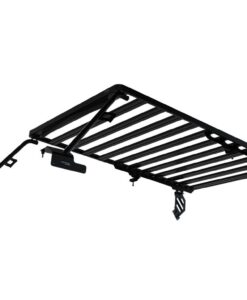

Consisting of:
1x FAJL002 – Jeep Wrangler JL (2018-Curr) Foot Rails
1x FAJL003 – Jeep Wrangler JL (2018-Curr) Inner Brackets
1x FAJL009 – Jeep Wrangler JL (18-Curr)Front Bar RRack Mount
1x RRSTJ12 – SLII Tray – 1425mm(W)X2368mm(L)

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Approximate Installed Weight: 46.14kg (101.72lbs)

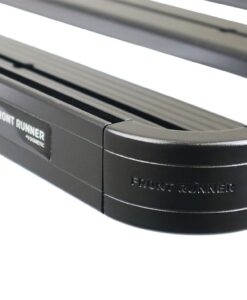

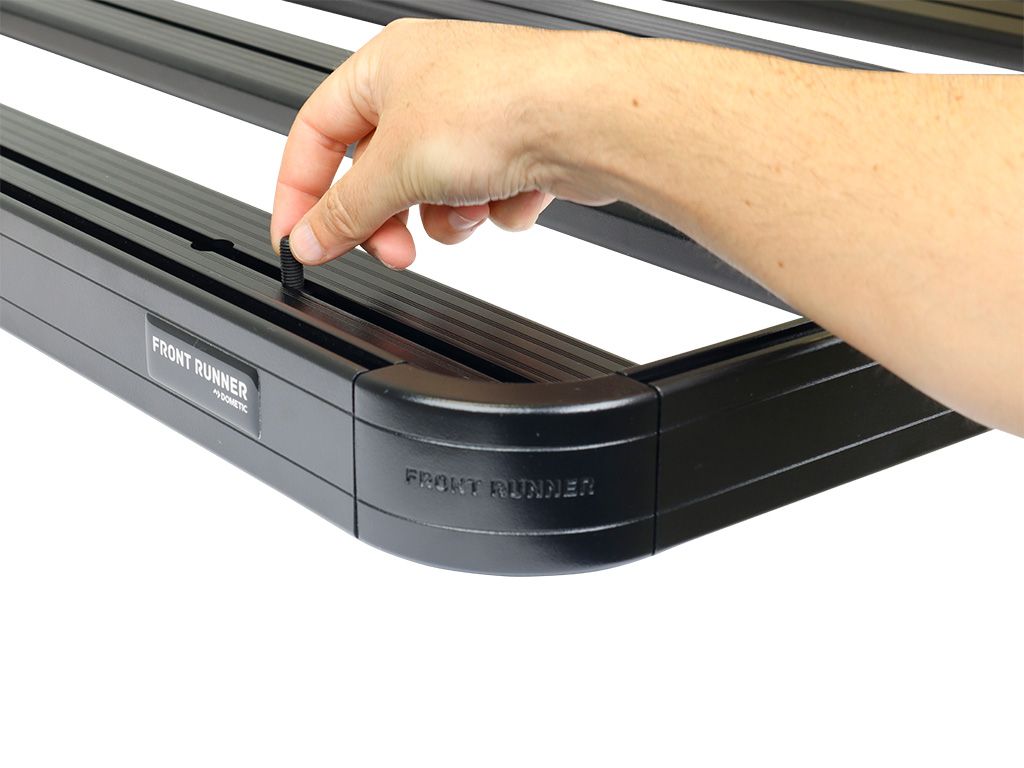

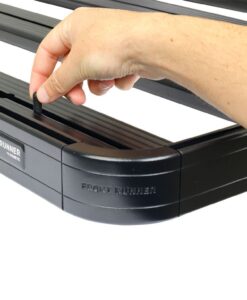

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 445mm (18″)
Length: 1720mm (68″)
Height: 440mm (17″)

Shipping Weight:
Weight: 54kg (119lbs)
