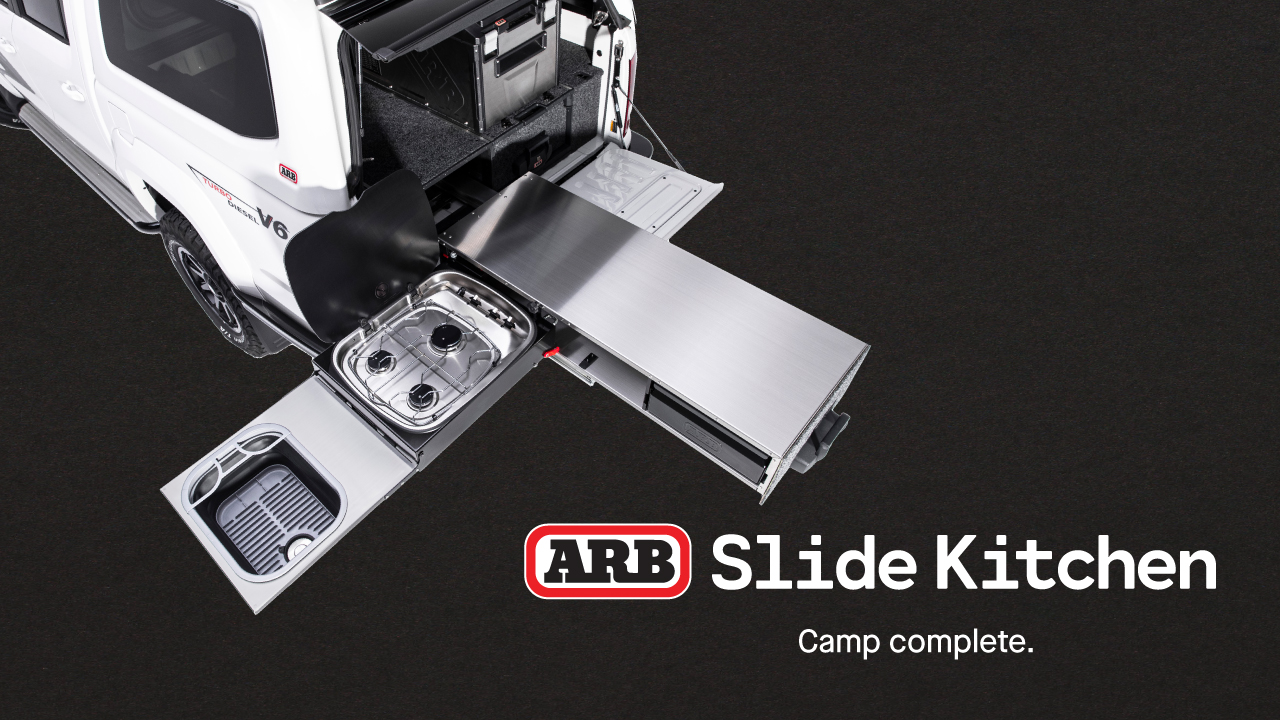

ARB – Slide Kitchen / Ute
CAMP COMPLETE

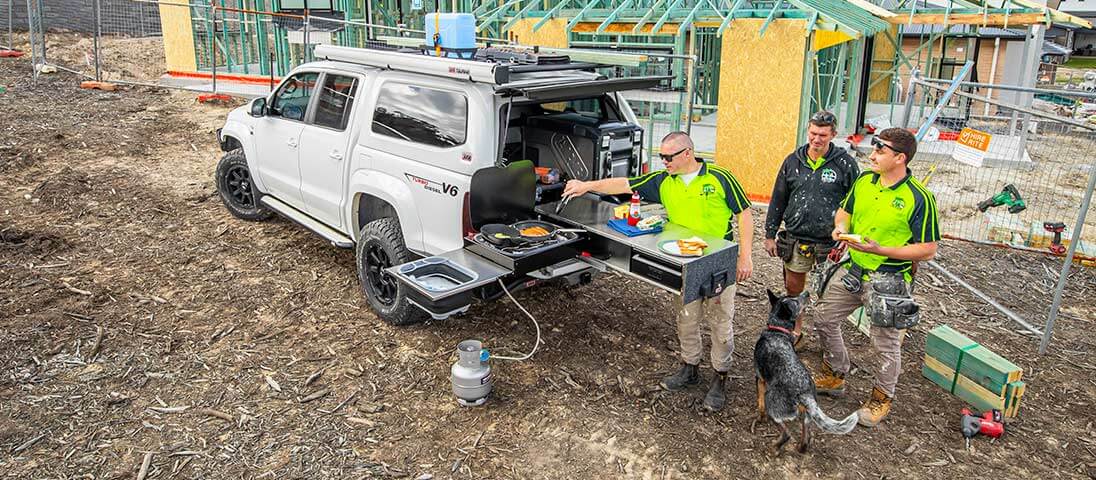

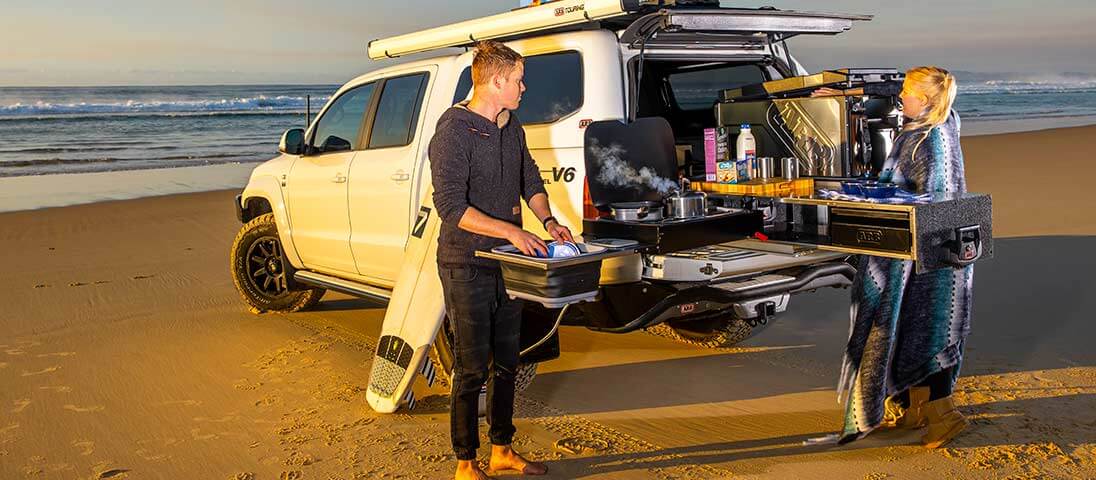

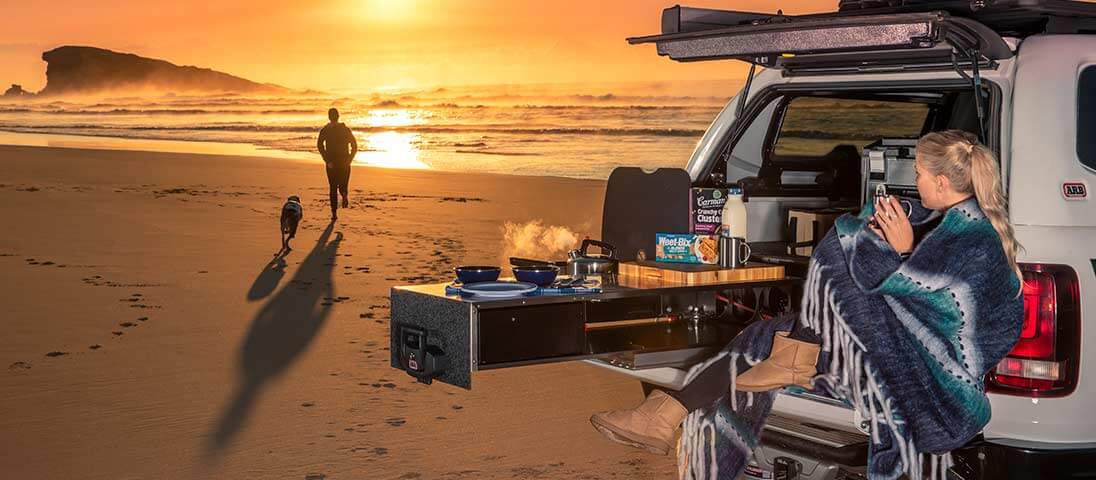

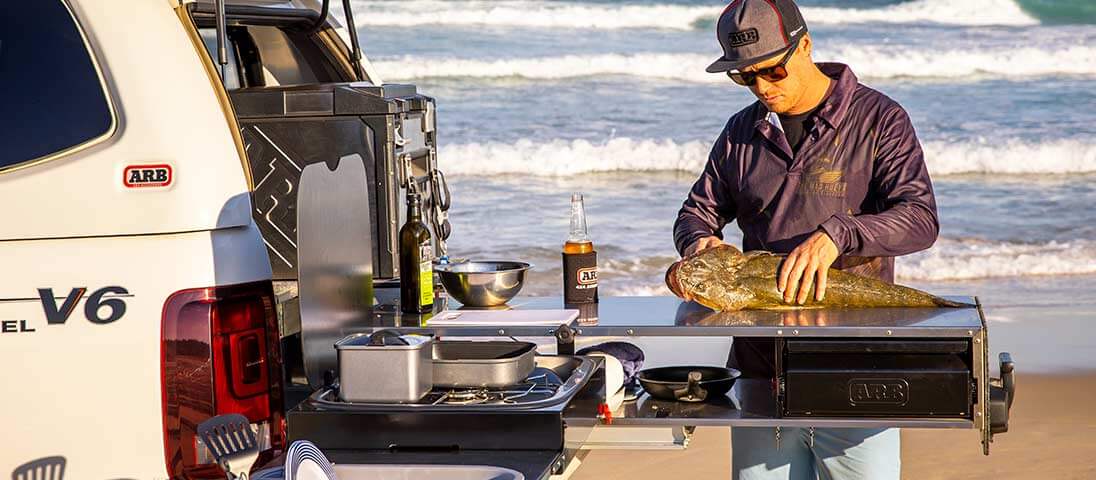

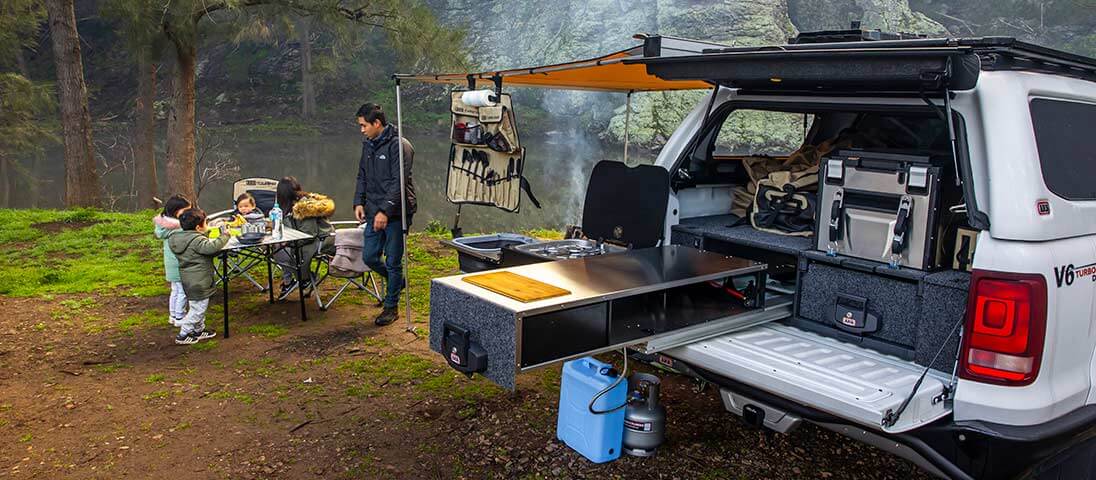

From the campsite to the worksite, the roadside to the trackside or riverside – no matter where you are, imagine the convenience of a fully contained kitchen out the back of your 4WD.
THE DESIGN
One of the most practical additions to any serious tourer, the ARB Slide Kitchen boasts some great design form which really enhances the user experience.
COMPLETE VEHICLE INTEGRATION
Designed to integrate with ARB drawer installations, the Slide Kitchen features the same dimensions as ARB’s full height (RD/RDRF), mid-height (RFH) and low height (RF) dual cab drawer systems, allowing it to be paired with any of ARB’s roller, mid-height or full-height drawers.

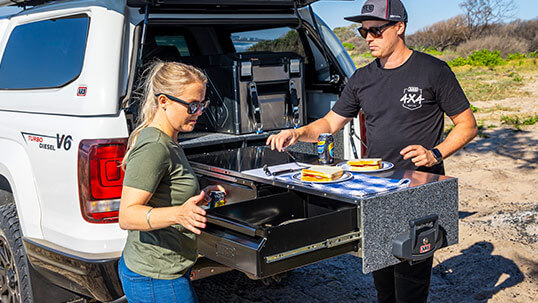

EASY SETUP AND OPERATION

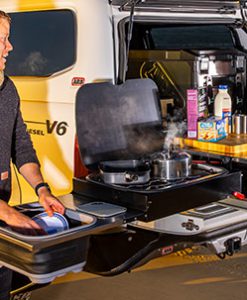

The Slide Kitchen can be set up or packed up in 15 seconds! Simply pull the slam latch drawer handle and roll out the stainless steel bench. Once fully extended, the bench locks into place and to complete the full setup, lift the red locking tab to release the swing-away stove and sink.
Configured for installation on the left (passenger) side of the vehicle, the Slide Kitchen is suitable for use while ‘roadside’ thanks to the cooktop’s design set to swing away from the vehicle and road.
FULLY RETRACTABLE AND COMPLETELY FREESTANDING
The fully retractable over extension roller design provides complete clearance of the vehicle. Once the bench is fully extended and locked into place, it sits completely freestanding*, without need for a support leg.
*: The Slide Kitchen bench’s 30kg weight limit (when fully extended) makes it a practical platform for loading and unloading the fridge!
EXPLORE THE FEATURES

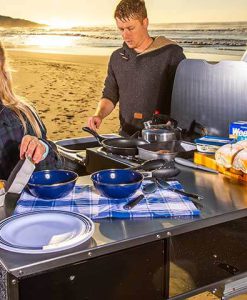

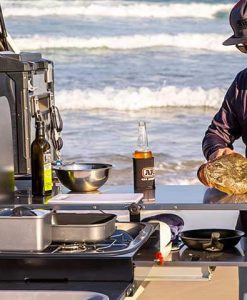

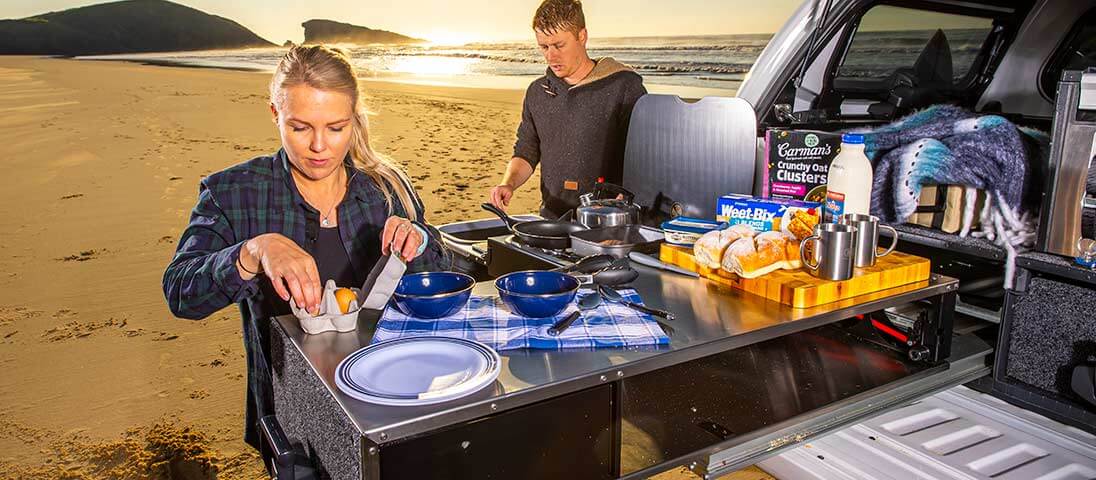

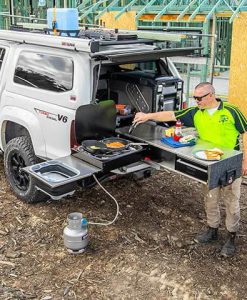

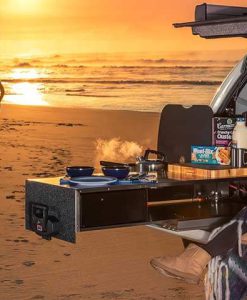

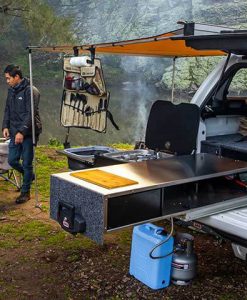

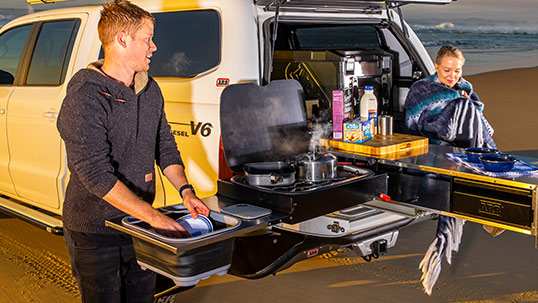

Featuring a stainless steel benchtop, gas stove, utensils drawer and sink, the Slide Kitchen offers the convenience of a fully contained kitchen which slides out of the back of your 4WD in a matter of seconds.

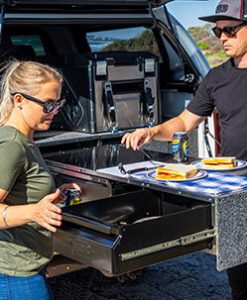

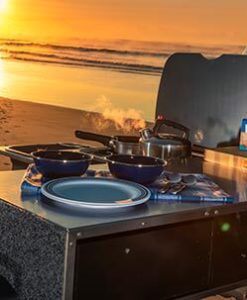

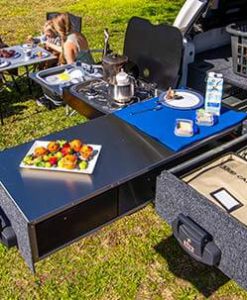

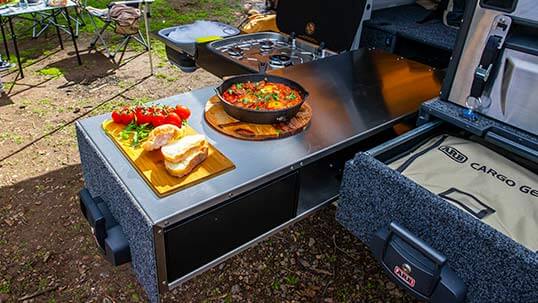

STAINLESS STEEL BENCHTOP & UTENSILS DRAWER

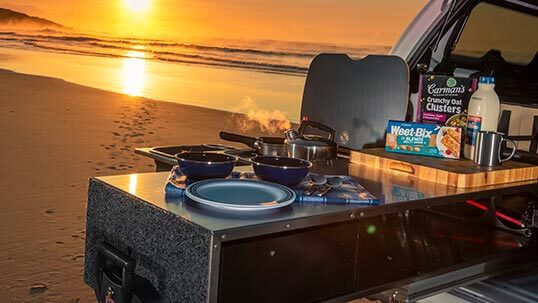

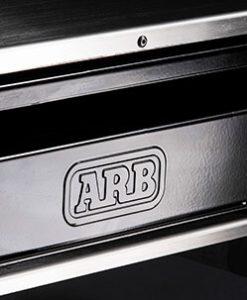

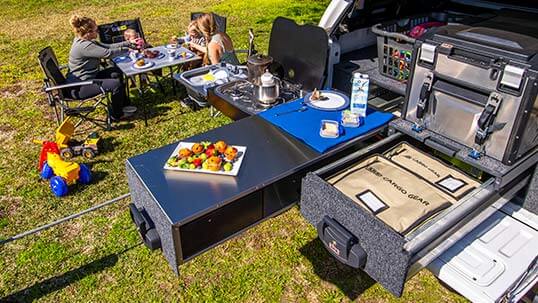

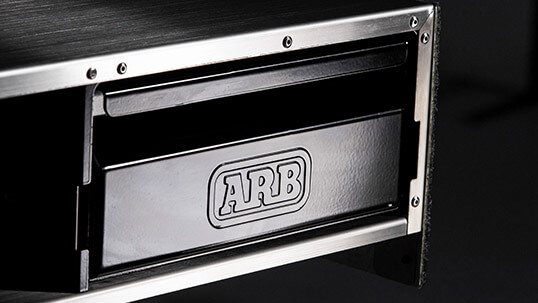

The perfect space for meal preparation, the kitchen-grade stainless steel benchtop also features a handy spice rack for storing condiments and hooks to hang tea towels or utensils. Under the slide-out bench, the aluminium powder-coated utensils drawer is lightweight and offers plenty of space to store your ‘must-have’ cooking utensils and kitchen essentials.
FEATURES
Benchtop
- Measures 1250mm (l) x 485mm (w)
- 304-grade stainless steel
- Locks into place when fully extended
- Hairline stainless pattern matches the stove finish
- Engineered alloy extruded over extension runners, provides support freestanding
- Main stainless surface can hold a maximum weight of 30kg spread evenly on top
- All locking components highlighted in red to help guide setup

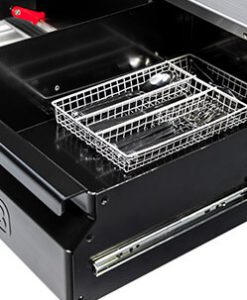

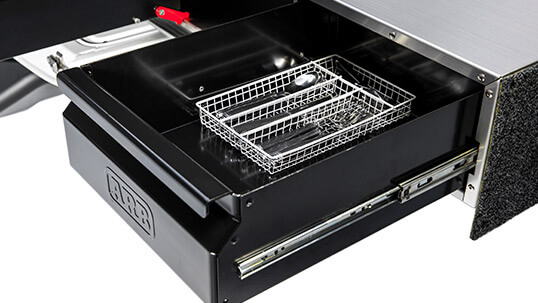

Utensils Drawer
- Internal space measures 450mm (d) x 345mm (w) x 140mm (h)
- Convenient space to store your gas hose and collapsible sink
Note: utensils rack is not included.

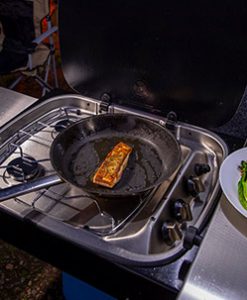

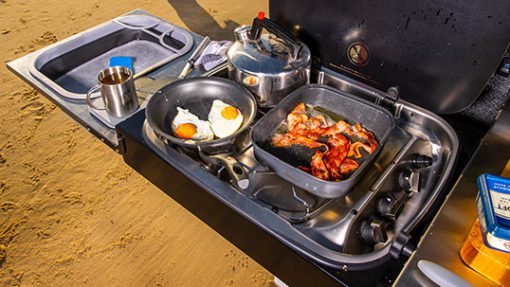

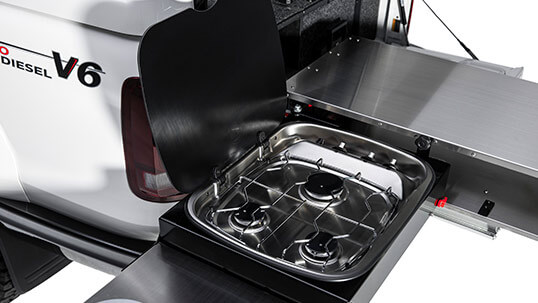

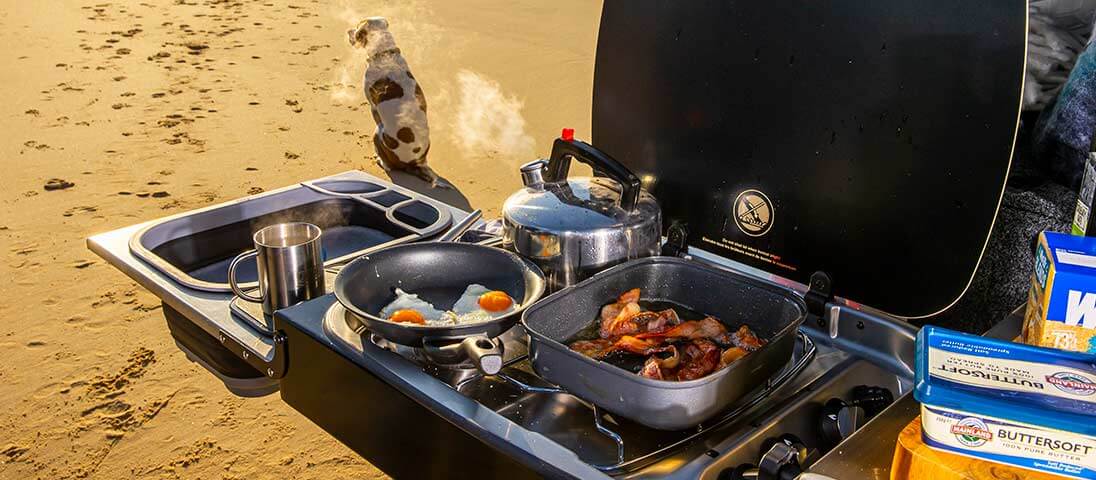

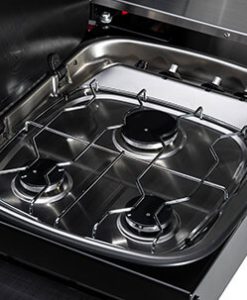

3 BURNER GAS STOVE

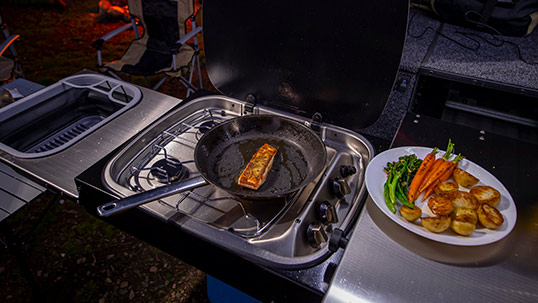

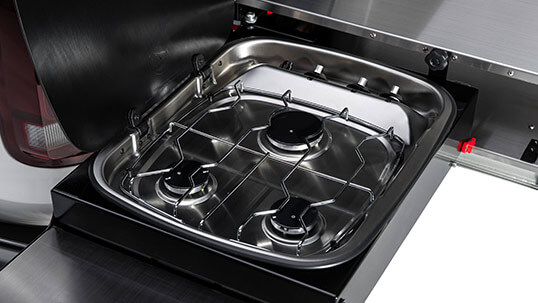

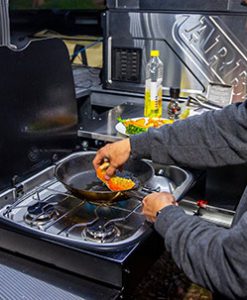

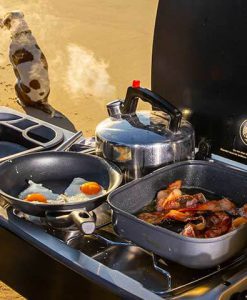

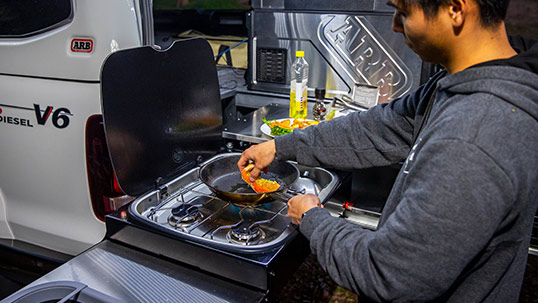

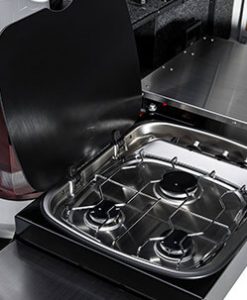

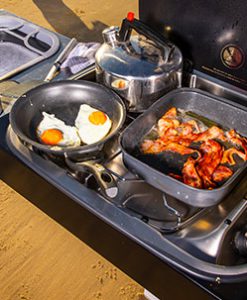

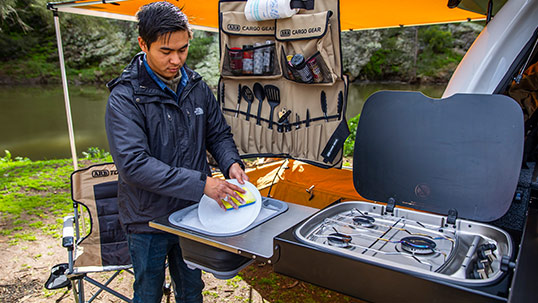

The contemporary design of the three-burner Thetford stove includes one large 2.5kW rapid burner and two smaller 1.75kW burners with flame-out technology, as well as a tempered glass lid doubling as a handy protective splashback for when the stove is in use.
FEATURES
- Thetford Argent 3 burner MK3 stove
- One large 2.5kW rapid burner and two smaller 1.75kW burners
- Battery-powered (electric ignition) igniter offering a total of 6kW (20,472BTU) cooking power
- Toughened glass lid also doubles as a splashback while the stove is in use
- Recessed stainless-steel dish for wind protection and easy clean-up
- Automatic ‘flame-out’ safety function instantly cuts the gas and flame if the lid is closed or the flame is extinguished
- Gas delivered via a quick-connect bayonet gas connector. A 1.2m quick-connect bayonet POL fitting with regulator included
- 20kg loading
- Suitable gas: LPG and ULPG

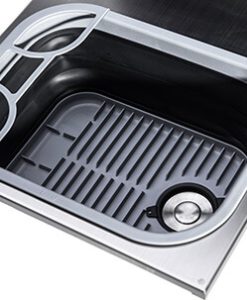

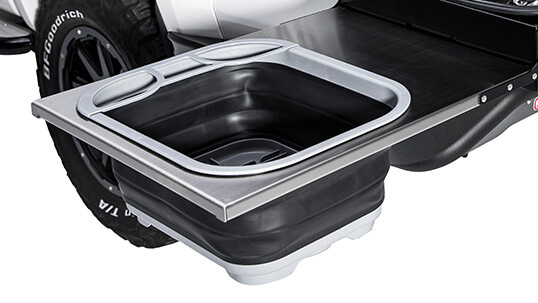

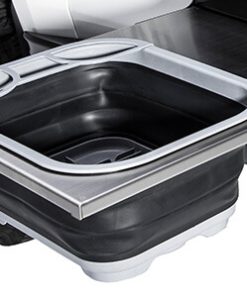

12L COLLAPSIBLE SINK

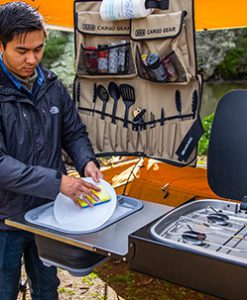

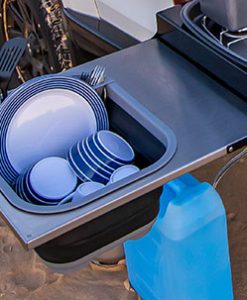

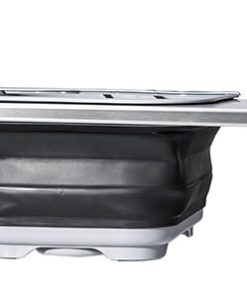

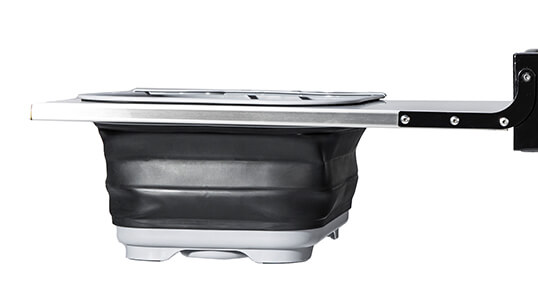

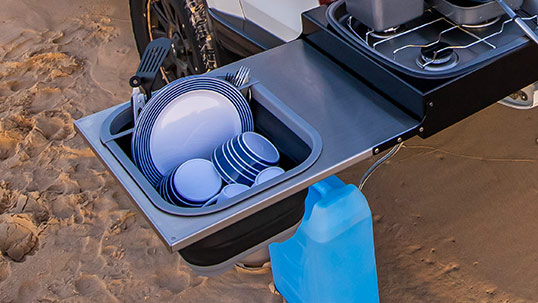

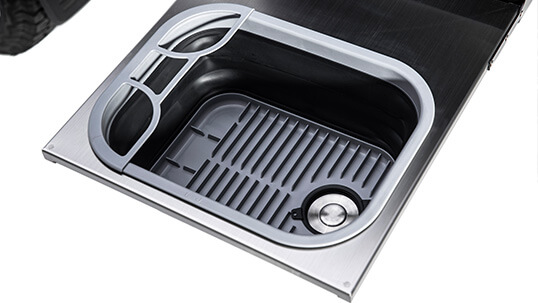

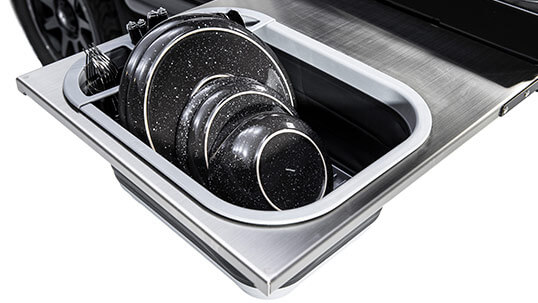

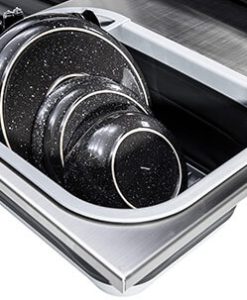

A place to quickly clean your utensils, plates, bowls and pots, the drop-in 7L collapsible silicone sink also doubles as a dish drying rack and includes a removable plug and handy utensils holder.
FEATURES
- 12L collapsible silicone sink with plug.
- Includes dish drying base (15kg sink loading, rated to 90°C)
- Sink platform rated to hold total of 15kg (maximum)
- Can be stored in the utensils drawer when collapsed
- Includes utensils holder
REPLACEMENT DRAWER
For those who don’t want to run a full-time kitchen in their vehicle, there is an optional replacement drawer which can be swapped out with the kitchen to allow for extra storage.
FEATURES
- Optional extra
- Provides a full extension drawer when in use
- Tough boot lined and finished the same as the ARB Outback Solution Drawer System
- 78L capacity
- 100kg rating
- Measures 1210mm (d) x 445mm (w) x 145mm (h)
SPECIFICATIONS
SLIDE KITCHEN SPECIFICATIONS
- DIMENSIONS
- Exterior: 1355mm (L) x 500mm (W) x 310mm (H)
- Interior: 1250mm (L) x 485mm (W) x 190mm (H)
- Benchtop: 1250mm (L) x 485mm (W)
- Stainless Benchtop Total: 930mm (L) x 505mm (W)
- Internal Small Drawer: 450mm (D) x 345mm (W) x 145mm (H)
- Optional Replacement Drawer: 1210mm (W) x 445mm (D) x 145mm (H)
- WEIGHT
- Approximately ~89kgs
STOVE SPECIFICATIONS
- Stove-top: Thetford Argent 3 Burner MK3 stove. Made in England, AGA approved
- Burners: 2x 1.75kW and 1x 2.5kW. 6kW total burners (20,472 BTU)
- Quick connect: AGA approved and sourced POL hose 1.2m with approved regulator
- Suitable gas: LPG and ULPG
- Load rating: 20kg
COLLAPSIBLE SINK SPECIFICATIONS
- 12L capacity
- Sink platform is preloaded to handle up to 15kg of weight
- Pop up sink rated to up to 90°C
BENCHTOP SPECIFICATIONS
- 304 stainless steel kitchen-grade
- Main stainless surface can hold a maximum weight of 30kg spread evenly on top
