ARB – Intensity Solis 21 LED Light Combo Beam / E-Mark Approved

€602,37

Product code: SJB21EUX2 Categorieën: ARB, ARB Intensity Vehicle Lighting, ARB Intensity Vehicle Lighting, ARB Lighting, Verlichting Tags: 21 led, arb, e-keur, e-mark, intensity, solis

Beschrijving
Extra informatie

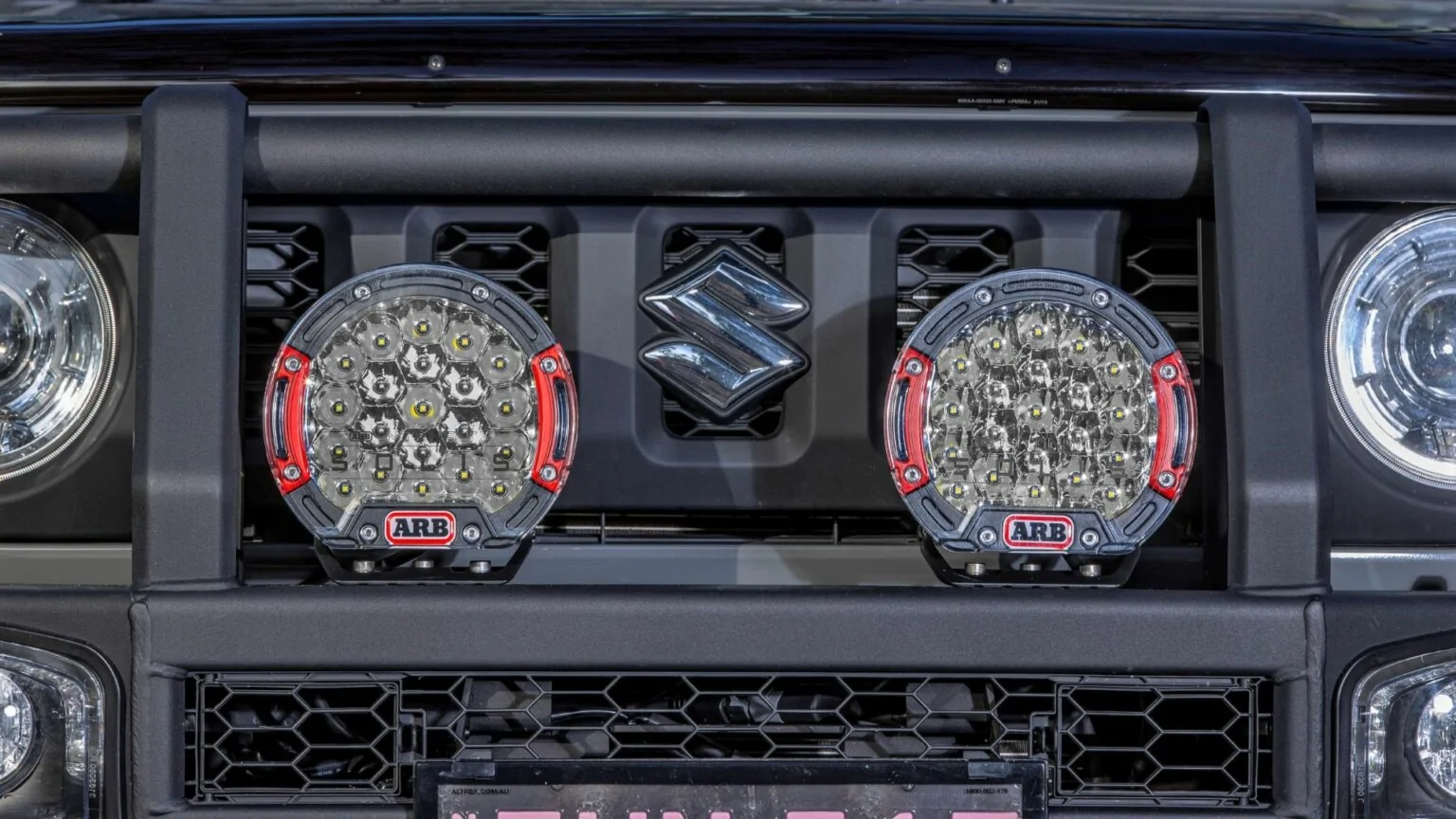

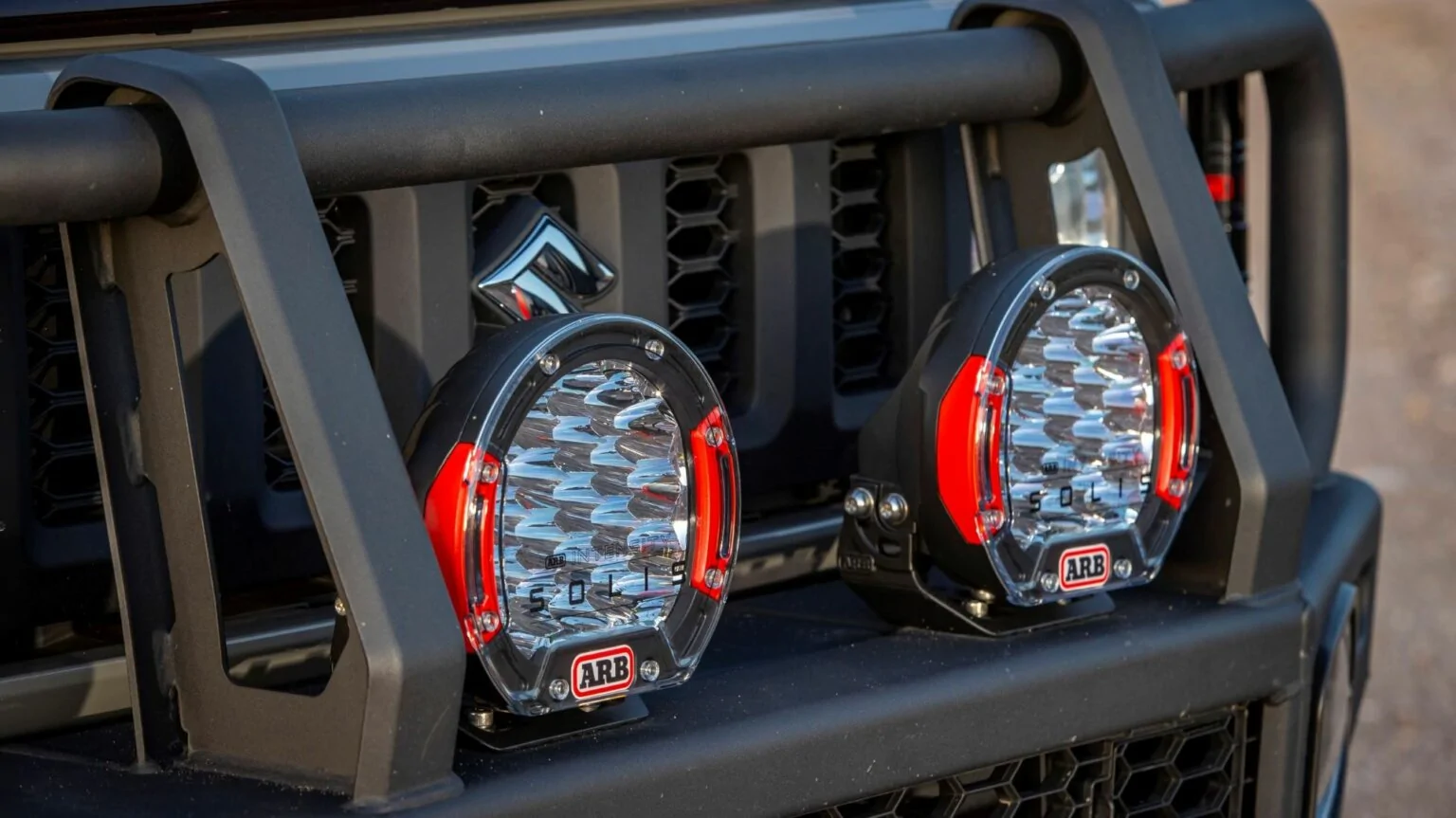

ARB – Intensity Solis 21 LED Light Combo Beam / E-Mark Approved

Incorporating new in house engineered and designed optics partnered with OSRAM LED technology and styling updates, the ARB Intensity Solis™ has pushed the limits of driving light technology once again and produced a uniquely designed, feature packed and highly capable driving light in small version and ready for legal fitment & on road use in European countries.

The ARB Intensity Solis™ 21 LED (7’’) Driving Lights are offered in dedicated combination optic tuned for on and off-road use. The lights are E-mark approved (following UNECE R149 regulation*).

All ARB Intensity lights are designed to maximise the output in all driving conditions and provide increased life expectancy of the light compared with cheaper lighting options in the market.

FEATURES

21 Osram LED (15x 4W + 6x 5W)
50.000+ Hour LED life span
Colour Temperature: 5700 Kelvin (a warmer light colour to help reduce eyes strain)
Raw Lumens 9133Lm
9° full beam width
Operating Temperature: +40°C to +65°C, -40°F to +149°F
Single light dimensions: 192mm (7.56″) H x 190mm (7.48″) W x 114mm (4.49″) D
Weight: 2.73kg (6.02lbs)
Intensity level #3: Distance @ 1 Lux – 426m (single light)
Intensity level #5: Distance @ 1 Lux – 620m (single light)
Virtually unbreakable polycarbonate lens
UV stable moulded polycarbonate lens cover
High pressure die-cast aluminium body and mount with variable positions (brings the light lower on its fastening position)
Touchpad with dimmer control + on road & off-road mode
On road mode in line with European UNECE R149 certification requirements*
Hard wired according to EU road use requirements
Intelligent active thermal management
Dust and waterproof to IP68
Durable UV stable powder coat
Simple installation with plug & play harness
Added black PCB boards to create a deep look into the lights

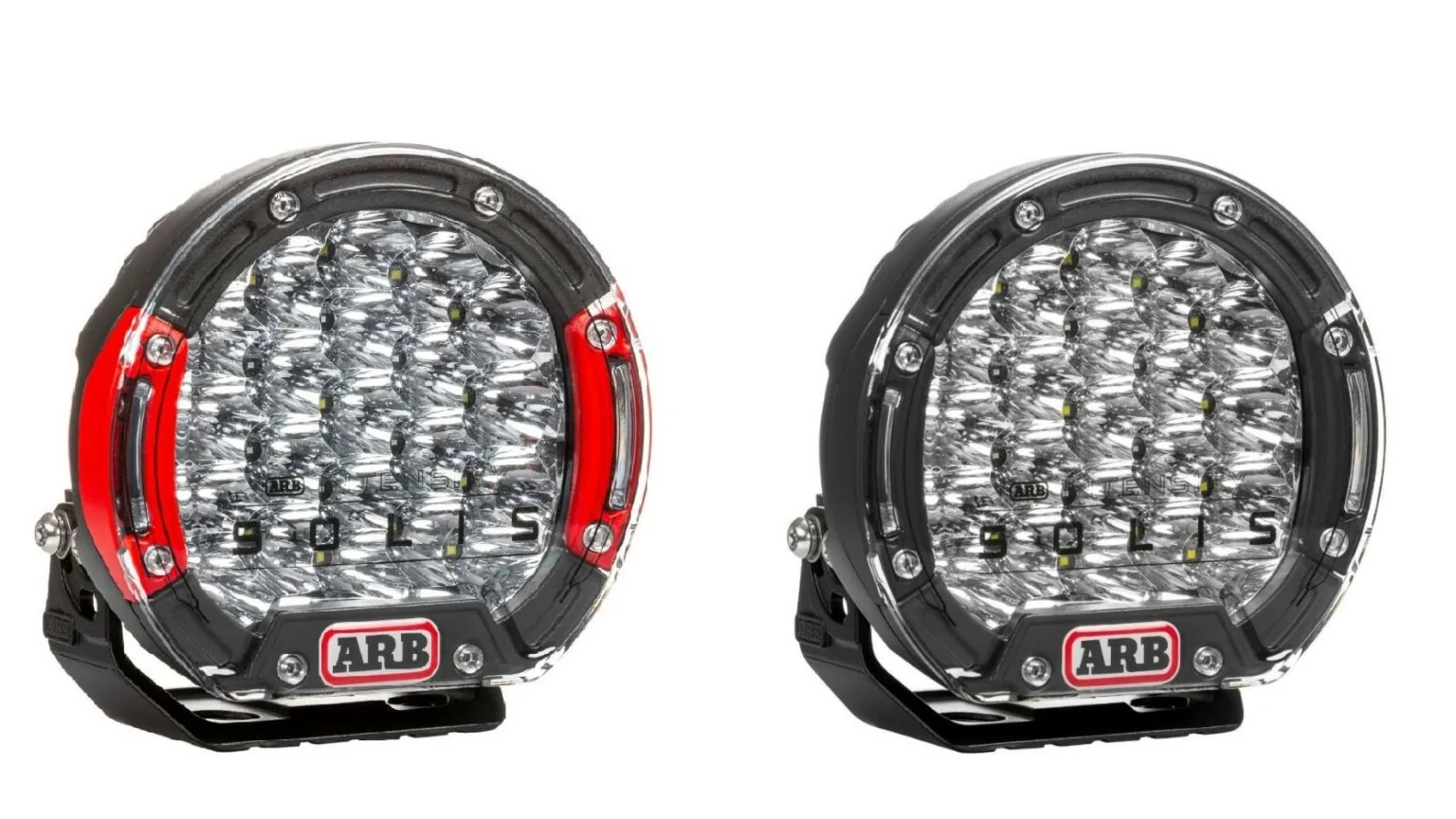

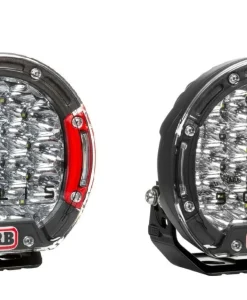

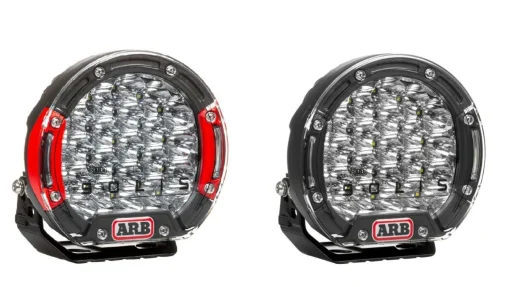

Red/black bezels included, optional amber/black covers
High quality with increased life expectancy
3-year warranty

Photometric data

Many months were spent by the engineers designing and refining an optic that captures the most amount of light, removes flat spots on the optic face and controls the beam into the right area to reduce stray light and maximise the potential of each LED.A single ARB Intensity Solis™ 21 provides 620m @ 1 Lux on setting #5 in off-road mode. The ARB Intensity Solis™ 21 on setting #3 provides 426m @ 1 lux with up to 40m spread from the vehicle in on-road mode. In dual combo off-road configuration, the distance down the road is a very impressive 877m @ 1 lux on setting #5 and dual combo configuration on setting #3 on-road modes it’s a competitive 603m @ 1 lux. As well as distance, a warmer light colour helps to reduce eye strain over long driving periods and improves driver comfort while assisting to reduce fatigue.

IN THE SOLIS 21 LIGHT KIT:
