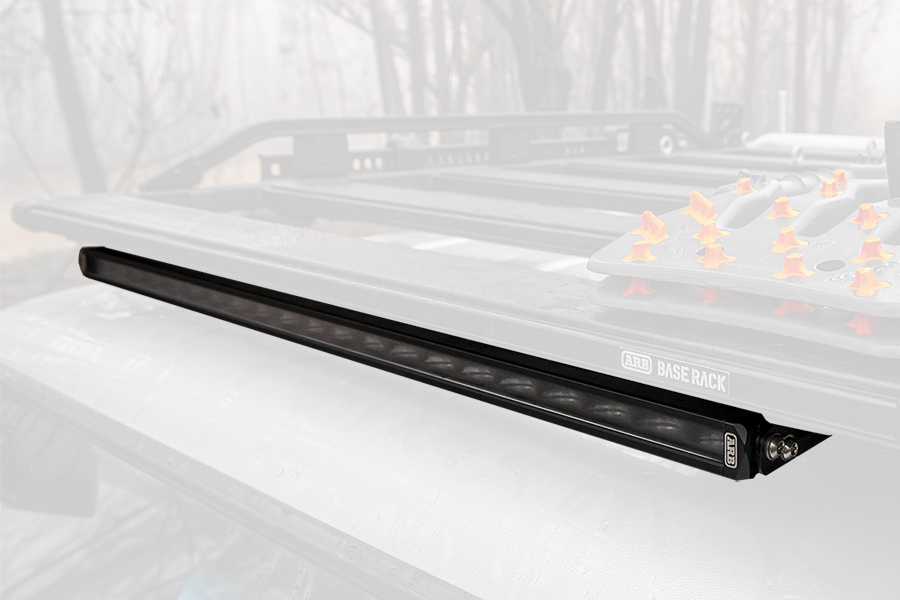

ARB – BASE Rack Slimline 36″ LED Light Bar

FEATURES

• Unique reflector design provides optimum distance and width for highway driving
• Reflector design limits light being reflected off vehicle bonnet and bar work
• Combo beam technology provides excellent mid- to long-range spread as well as distance down the road
• Virtually indestructible polycarbonate lens
• Extruded aluminium body with stealth black powder-coat finish

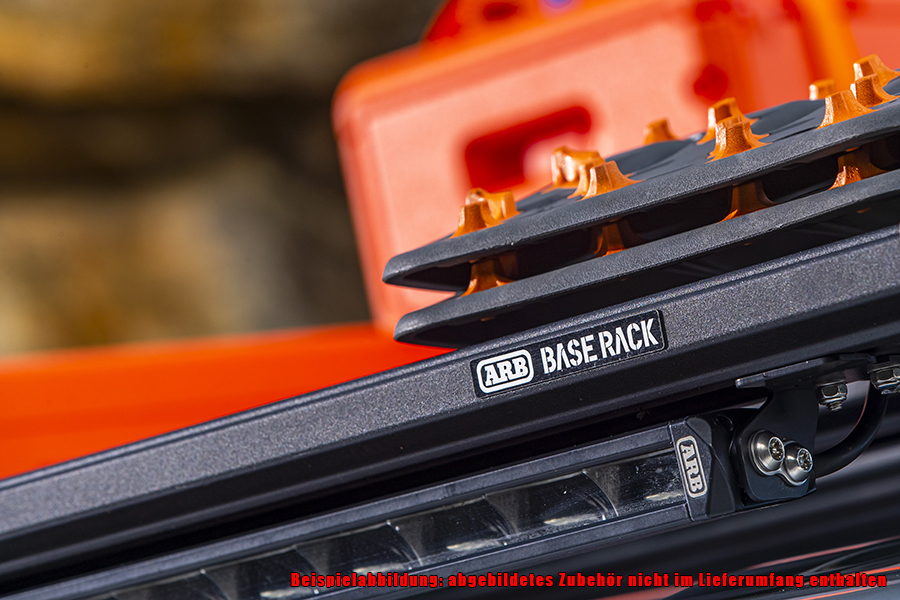

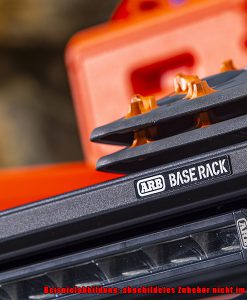

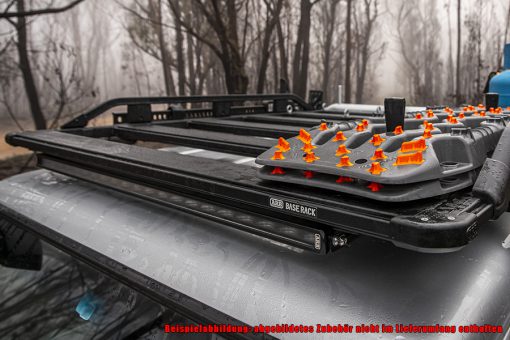

• Unique multi-position mounts suitable for BASE Rack, as well as ARB trade and touring racks
• Brackets included provide two mounting options allowing for placement either in front of or below the rack
• Light Bar Lens Covers available in clear, solid black and amber
• 304 stainless hardware
• Reverse polarity protection
• Breather with pressure-tested seal
• Vibration and UV tested
• Thermal management
• Dust and waterproof to IP68
• Over and under voltage protection
• Protected against radio frequency (RFI) and electromagnetic (EMC) interference
• Two-pin, over-moulded, waterproof plug
• Suitable for use with ARB driving light loom – 3500810 & 3500820
• R10, CE and ROHS certified
• Three-year warranty

SPECIFICATIONS

• Input: 12V to 48V
• Power: 130W
• Current Draw: 9.2A @ 14.4V
• Output – Raw: 9279 lumens
• Output – Effective: 8552 lumens
• Lux @ M (Single Light): 1 Lux @ 728m
• Spread: Horizontal 8° and Vertical 6°
• Input Cable Length: 330mm (male terminal)
• Operating Temp: -40°C to +65°C
• Colour Temp: 5500 – 6000K
• Runtime: 50000hrs
• Weight: 3.07kg
• Connector: 2-pin, over-moulded, waterproof plug
• Dimensions: 954mm (W) x 67mm (L) x 34mm (H)
• Certifications: R10, CE & ROHS

KIT INCLUDES

• 1x 36″light bar
• 2x Bracket for below rack mounting
• 2x Bracket for front rack mounting
• 1x Bracket mounting hardware
